ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12510
Horn switch “HORN”
Press this switch to sound the horn.
EAU12650
Engine stop switch “ENGINE STOP”
Set this switch to “RUN” before starting
the engine. Set this switch to “OFF” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12690
Start switch “START”
Push this switch to crank the engine
with the starter.
CAUTION:
ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12751
Hazard switch “HAZARD”
With the key in the “ON” position, use
this switch to turn on the hazard light
(simultaneous flashing of all turn signal
lights).
The hazard light is used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-11.)

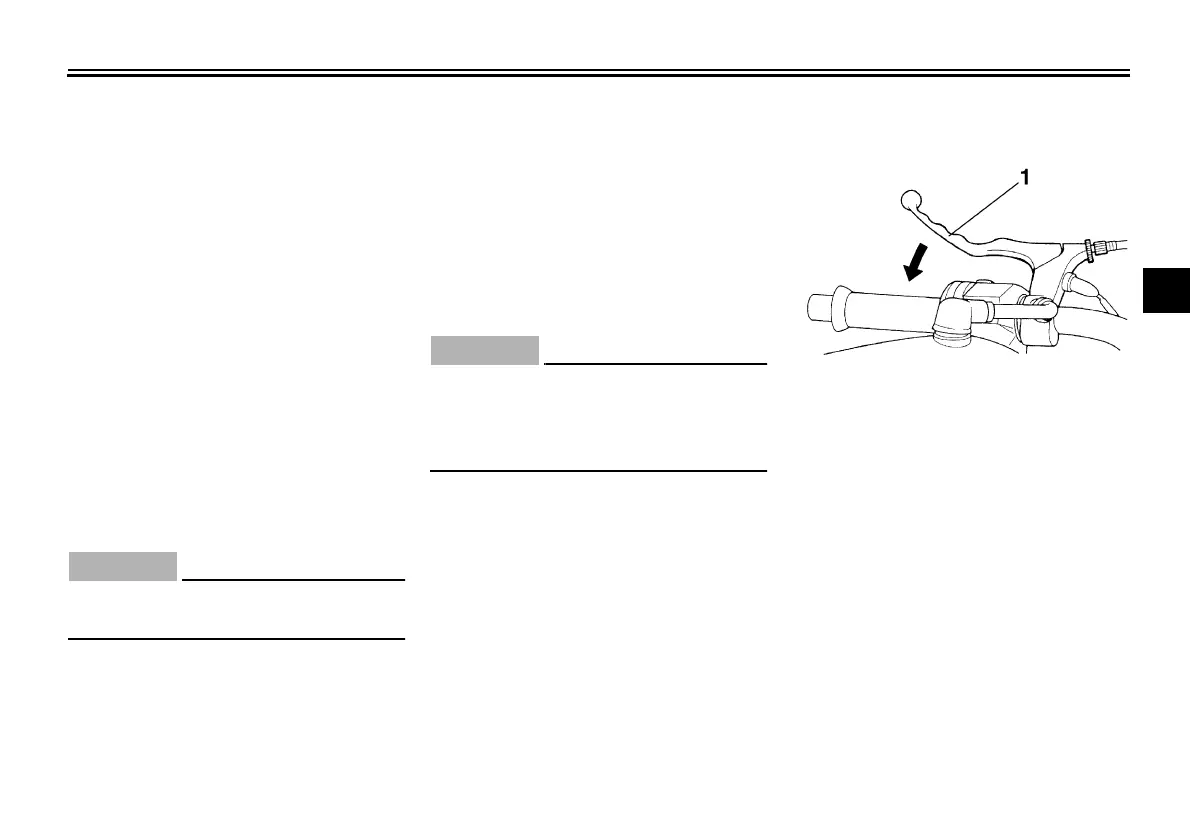

1. Clutch lever
