INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
2. Place the rider seat in the original
position, and then tighten the bolts.
NOTE:
Make sure that the rider seat is properly
secured before riding.
EAU14281
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key.
WARNING
EWA10160
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-
trol and possibly an accident.
EAU14880
Adjusting the shock absorber
assemblies
Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.

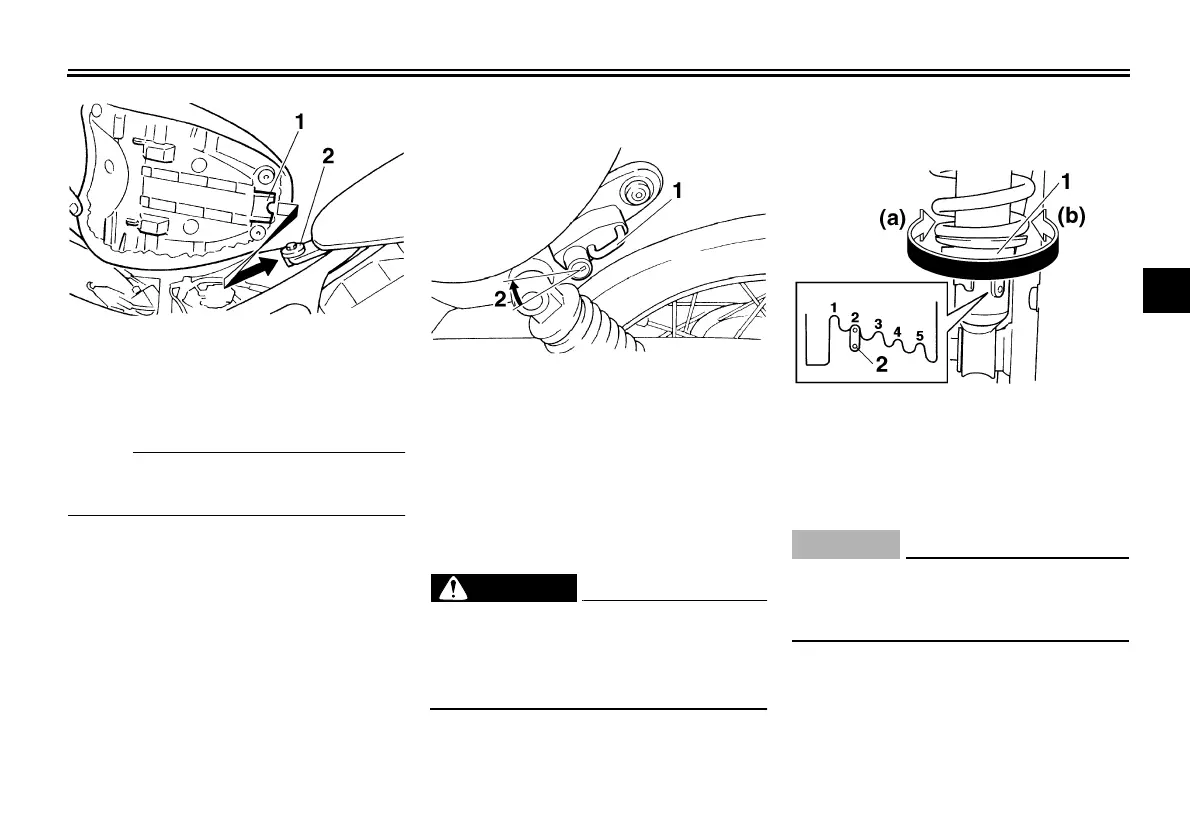

1. Projection
2. Seat holder
1. Helmet holder
2. Unlock.
1. Spring preload adjusting ring
2. Position indicator
U2UJ23E0.book Page 9 Wednesday, May 11, 2005 11:30 AM
