Yamaha 2B User Manual

GB
2-1
EMC10010

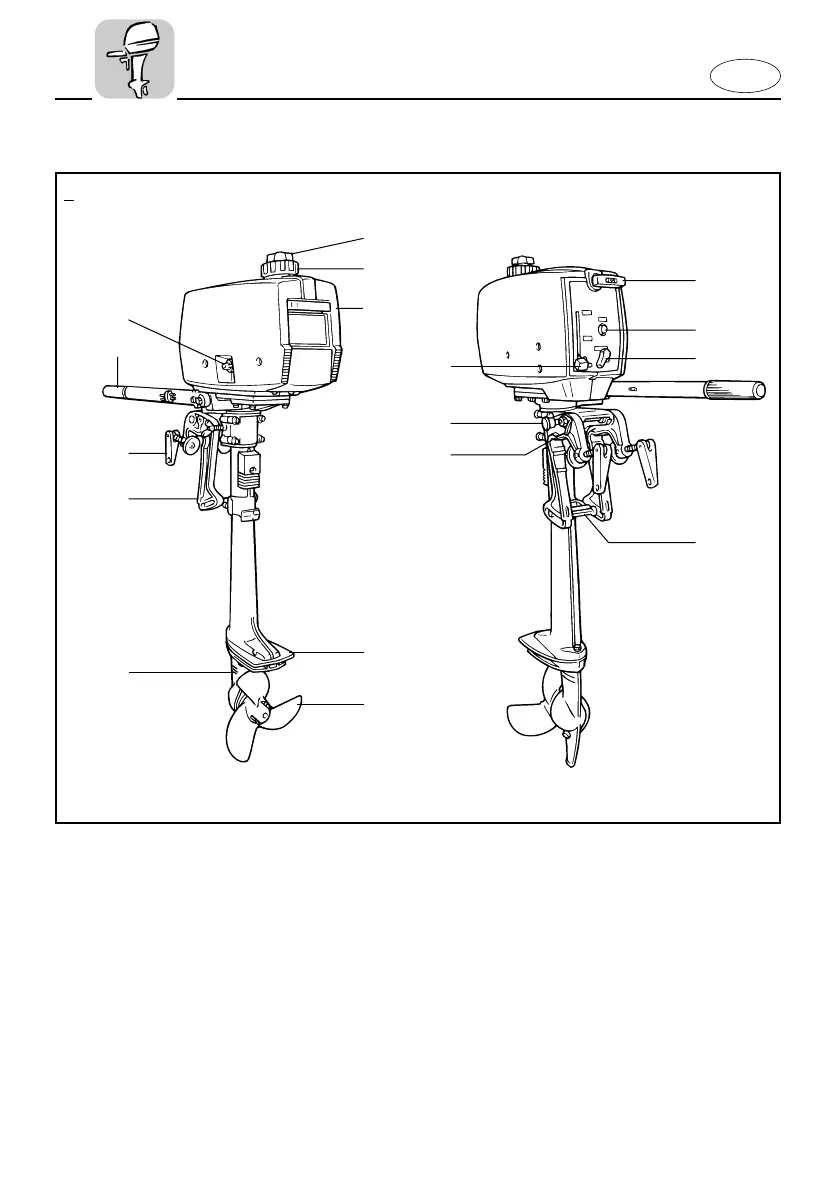

MAIN COMPONENTS
1 Air-vent screw
2 Fuel tank cap
3 Top cowling
4 Anti-cavitation plate
5 Propeller
6 Cooling water inlet
7 Clamp bracket
8 Transom clamp handle
9 Tiller handle
0 Fuel cock lever
q Recoil starter handle
w Engine stop button
e Choke knob
r Trim angle adjusting-rod
t Rope attachment
y Tilt support knob
u Throttle control lever
101221
y
r
t
!0
o
i
u
q
w
e
!7
!6
!5
!1
!2
!3
!4
101222
2
6A1-9-7LA0-2 3/7/02 12:13 PM Page 22

Yamaha 2B Specifications

General

Engine Type	2-stroke
Fuel Type	Gasoline
Oil Type	2-stroke outboard motor oil
Mixing Ratio	50:1
Ignition System	CDI
Starting System	Manual
Operation Method	Tiller handle
Gear Ratio	2.08:1
Max Power Output	2 HP
Full Throttle RPM Range	4, 500 - 5, 500 RPM
Fuel Tank Capacity	1.2 liters
Weight	9.8 kg
Shaft Length	15 inches
