2-4

902065

EMC20010

OPERATIONS OF CONTROLS

AND OTHER FUNCTIONS

EMC21112

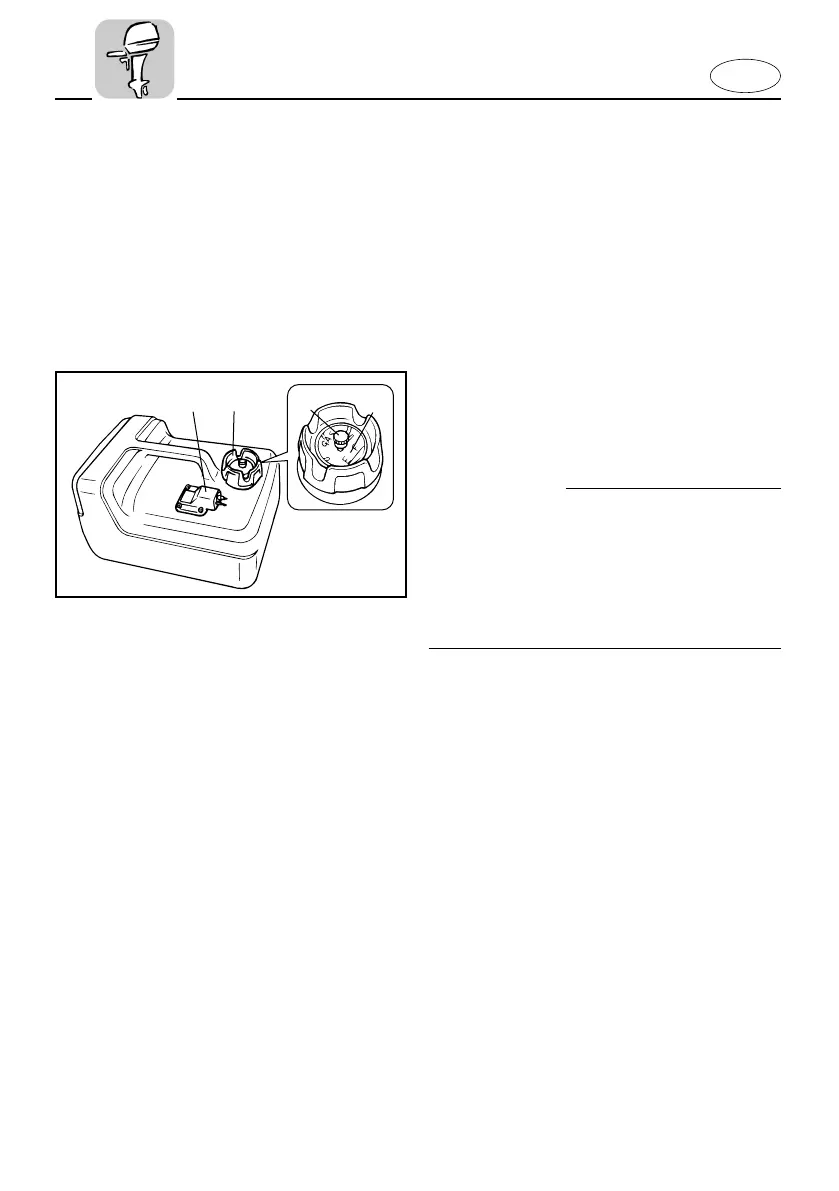

FUEL TANK

If your model was equipped with a

portable fuel tank, its function is as fol-

lows.

1 Fuel hose joint

2 Fuel meter(If equipped)

3 Fuel tank cap

4 Air vent screw(If equipped)

The fuel tank supplied with this engine is

its dedicated fuel reservoir and must not

be used as a fuel storage container.

Commercial users should conform to rel-

evant licensing or approval authority reg-

ulations.

EMC31010

Fuel hose joint

This connector is provided for connecting

or disconnecting fuel hose.

EMC41110

Fuel meter

This meter is on the fuel tank cap. It

shows current fuel quantity in the fuel

tank approximately.

EMC51010

Fuel tank cap

This cap is for filling fuel. To remove it,

turn it counterclockwise.

EMC61010

Air vent screw

This screw is on the fuel tank cap. To

loosen it, turn it counterclockwise.

6A1-9-7LA0-2 3/7/02 12:13 PM Page 28
