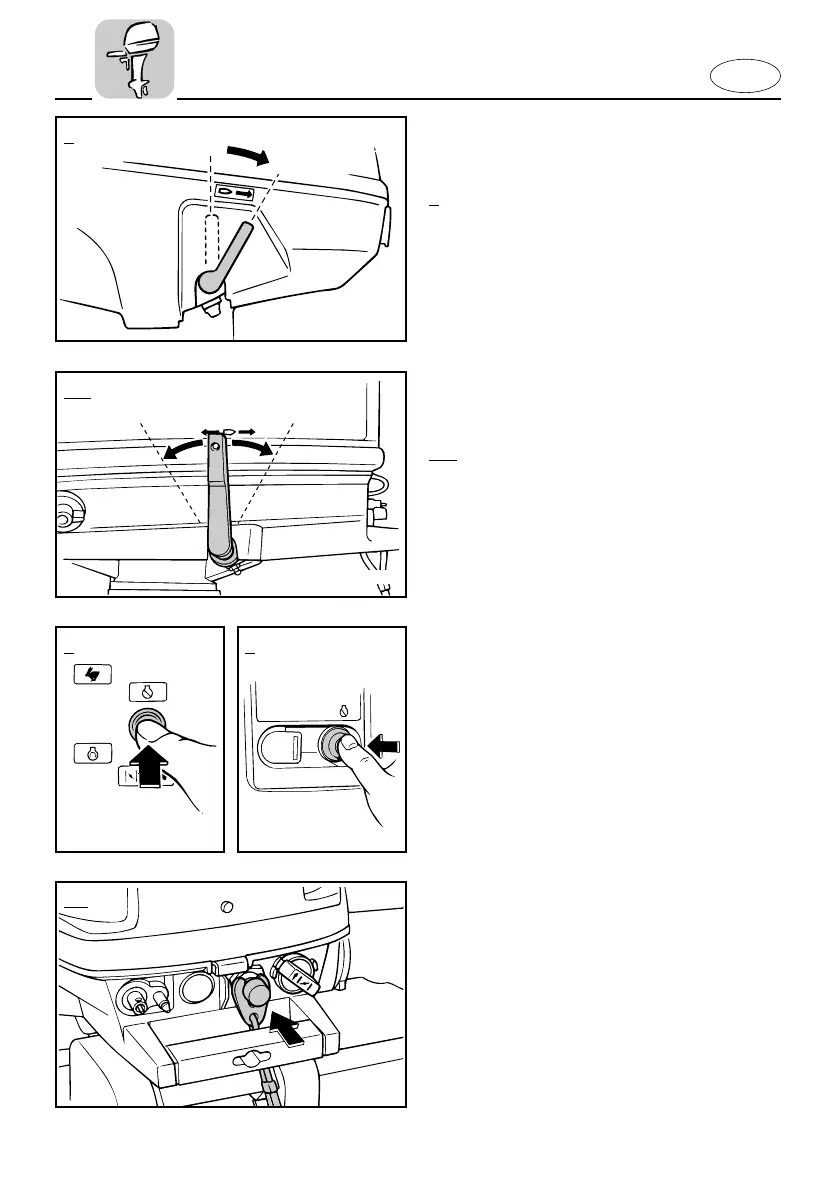

GEAR SHIFT LEVER
(for Tiller control model)
3
Turning the gear-shift lever towards you
engages the clutch with the forward gear
so that the boat moves ahead.
1 Neutral
2 Forward
EMC27011
ENGINE STOP BUTTON (for Tiller
control model)
Pushing this button opens the ignition cir-
cuit and stops the engine.
EMC25010
GEAR SHIFT LEVER
(for Tiller control model)
4/5
Turning the gear-shift lever towards you
engages the clutch with the forward gear
so that the boat moves ahead. Turning
the lever away from you engages the
reverse gear so that the boat moves
astern.
1 Neutral
2 Forward
3 Reverse
310021
N
F
q
w
310015*
qwe
3
4/5
001500
4/5
2 3
6A1-9-7LA0-2 3/7/02 12:13 PM Page 30

Yamaha 2B Specifications

General

Engine Type	2-stroke
Fuel Type	Gasoline
Oil Type	2-stroke outboard motor oil
Mixing Ratio	50:1
Ignition System	CDI
Starting System	Manual
Operation Method	Tiller handle
Gear Ratio	2.08:1
Max Power Output	2 HP
Full Throttle RPM Range	4, 500 - 5, 500 RPM
Fuel Tank Capacity	1.2 liters
Weight	9.8 kg
Shaft Length	15 inches
