Yamaha 50 User Manual

Components
21
EMU26201

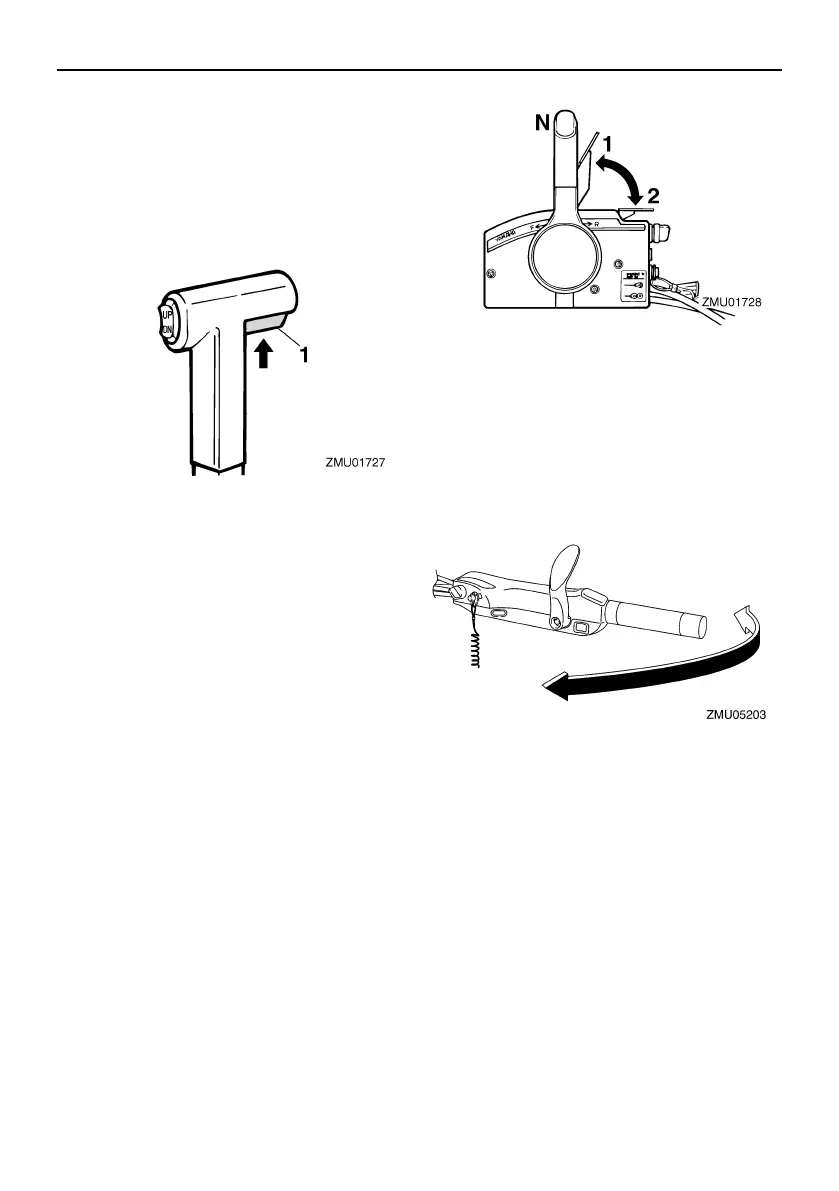

Neutral interlock trigger
To shift out of neutral, first pull the neutral in-
terlock trigger up.
EMU26211
Neutral throttle lever
To open the throttle without shifting into ei-
ther forward or reverse, put the remote con-
trol lever in the neutral position and lift the
neutral throttle lever.
T
IP:
The neutral throttle lever will operate only
when the remote control lever is in neutral.
The remote control lever will operate only
when the neutral throttle lever is in the closed
position.
EMU25911
Tiller handle
To change direction, move the tiller handle to
the left or right as necessary.
EMU25922
Gear shift lever
Pulling the gear shift lever towards you puts
the engine in forward gear so that the boat
moves ahead. Pushing the lever away from
you puts the engine in reverse gear so that
the boat moves astern.
6. Throttle
7. Fully open
1. Neutral interlock trigger
1. Fully open
2. Fully closed

Yamaha 50 Specifications

General

Engine Type	4-stroke, SOHC
Cylinders	3
Fuel Induction System	EFI
Prop Shaft Horsepower	50hp
Full Throttle RPM Range	5000-6000 rpm
Starting System	Electric
Fuel System	EFI
Shaft Length	20 inches
Alternator Output	17A
