Components
26
EMU26341

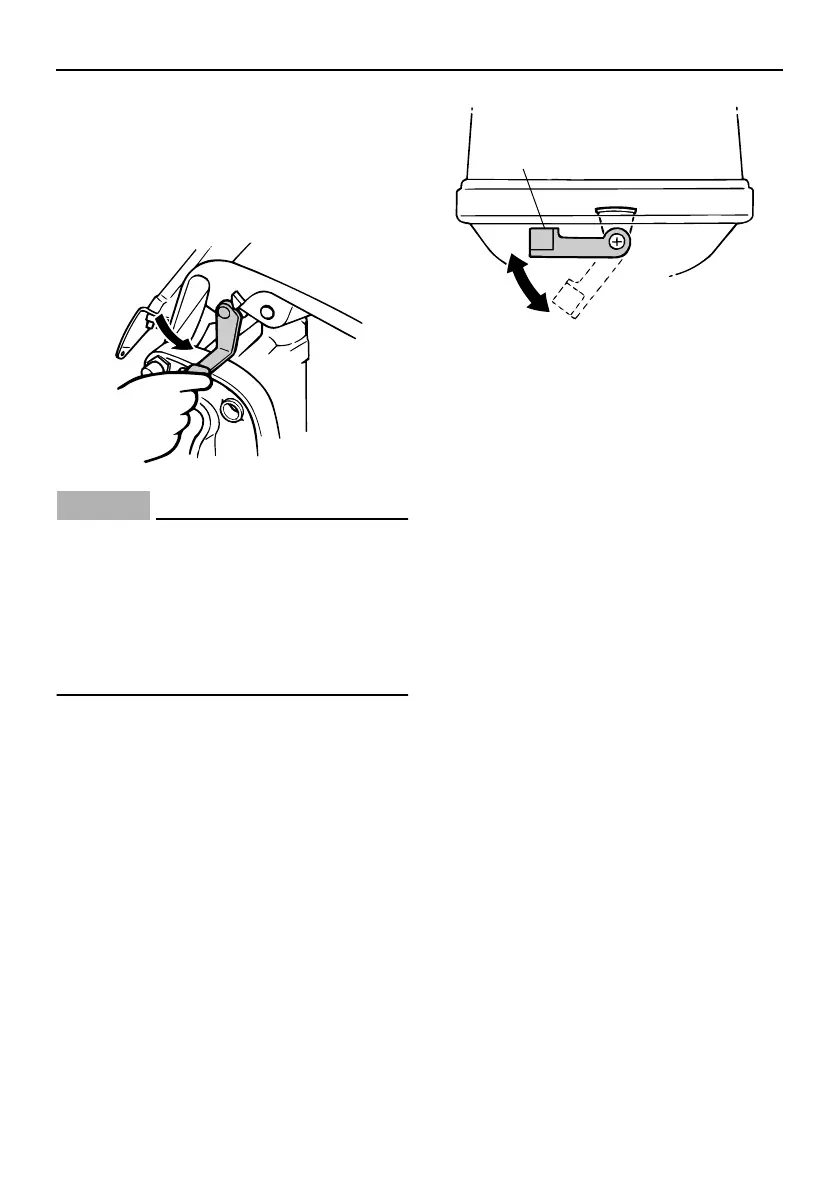

Tilt support lever for power trim and
tilt model
To keep the outboard motor in the tilted up
position, lock the tilt support lever to the
clamp bracket.
NOTICE
ECM00660
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be trail-
ered in the normal running position, use
an additional support device to secure it
in the tilt position.
EMU26373
Cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
cowling lock lever(s) and lift off the cowling.
When installing the cowling, check to be sure
it fits properly in the rubber seal. Then lock
the cowling again by returning the cowling
lock lever(s) to the lock position.
ZMU03194
1. Cowling lock lever(s)
ZMU02862
