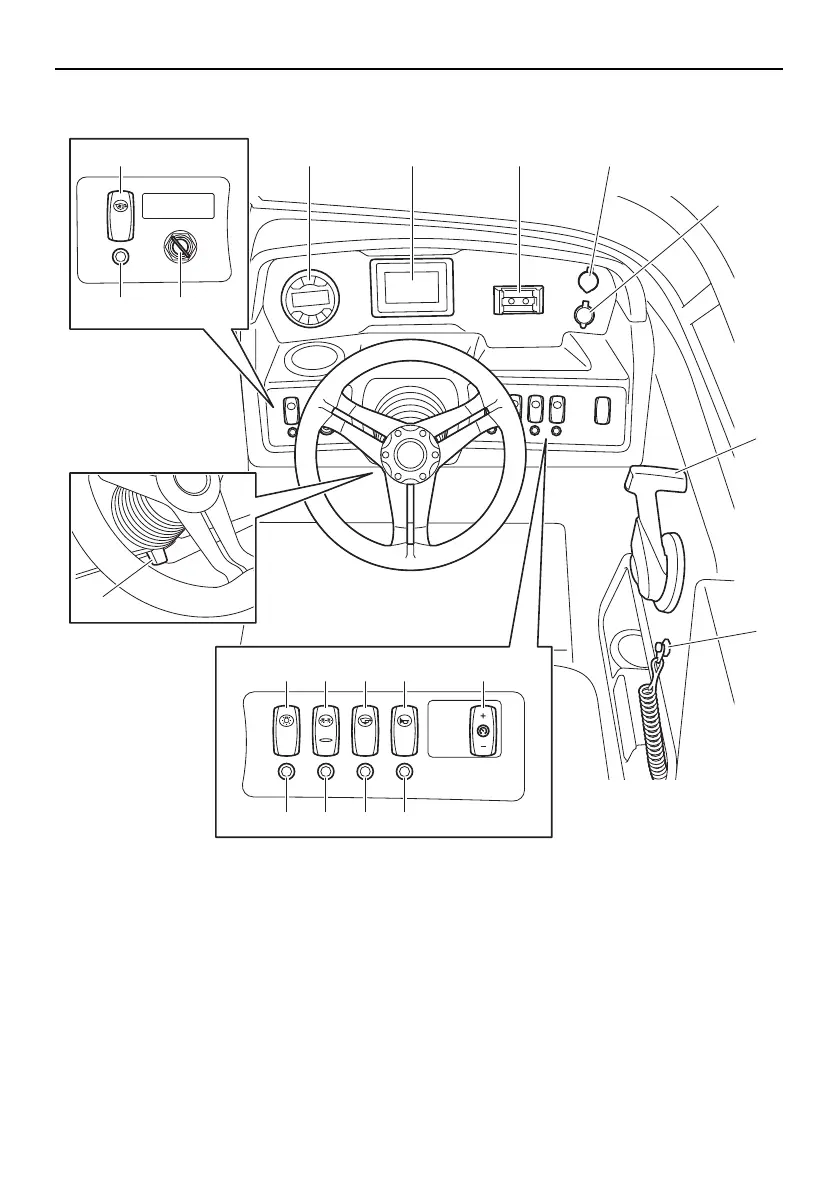

Helm components
1 Stereo receiver (page 45)
2 Multi-function meter (page 45)
3 Phone holder
4 Aux input (page 45)
5 12 V DC outlet (page 44)
6 Remote control lever (page 36)
7 Engine shut-off switch (page 35)
8 No-wake mode/cruise assist switch (page 42)
9 Horn switch (page 40)
10 Bilge pump switch (page 40)
11 Navigation and anchor lights switch (page 40)
12 Courtesy light switch (page 40)
13 Switch circuit breaker (page 42)
14 Tilt lever (page 39)
15 Main switch (page 36)
16 Blower switch (page 40)
HORNBILGENAV/ANC
CTSY
LIGHTS
BLOWER
16 1 2 3 4
5
6
7
12 11 10 9
13
15
13 13 13 13
8
14
