Equipment operation
74
Storing the bimini top

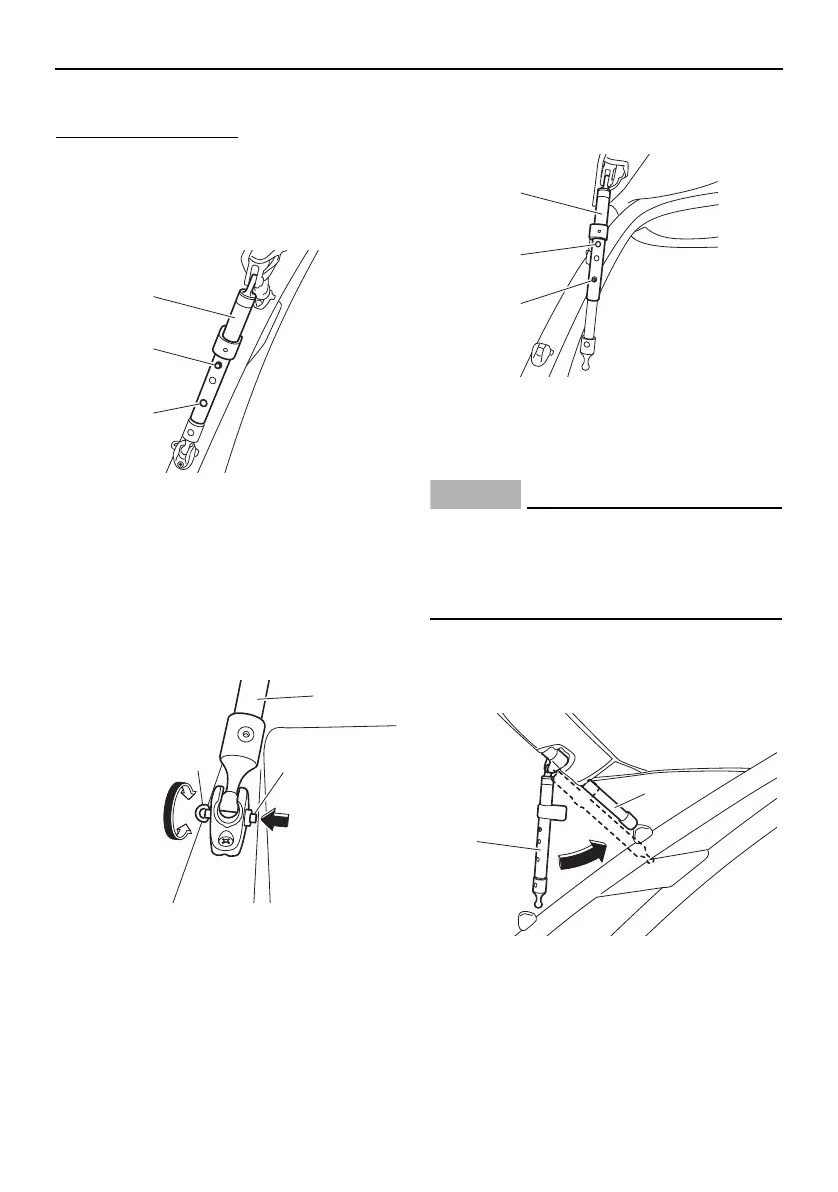

To store the bimini top:
(1) While pulling the main pole down slightly,
push the snap button, and then extend
each rear support pole to the long posi-
tion to loosen the bimini top.
1 Rear support pole
2 Snap button
3 Long position
(2) Fit the end of each rear support pole
into the rear support pole mounting
bracket, and then push the button and
turn the D-ring to secure the pole.
1 Rear support pole
2 Button
3 D-ring
(3) Push the snap button and shorten each
rear support pole to the short position.
1 Rear support pole
2 Short position
3 Snap button
NOTICE
Be careful not to push the snap button and
extend the pole too far. Otherwise, the
lower section of the pole could fall into the
water.
(4) Hook the rear support poles onto the
main pole, and then pull the rear of the
bimini top toward the bow.
1 Rear support pole
2 Main pole
1
2
3
3
2
1
1
2
3
2
1
