Equipment operation
65

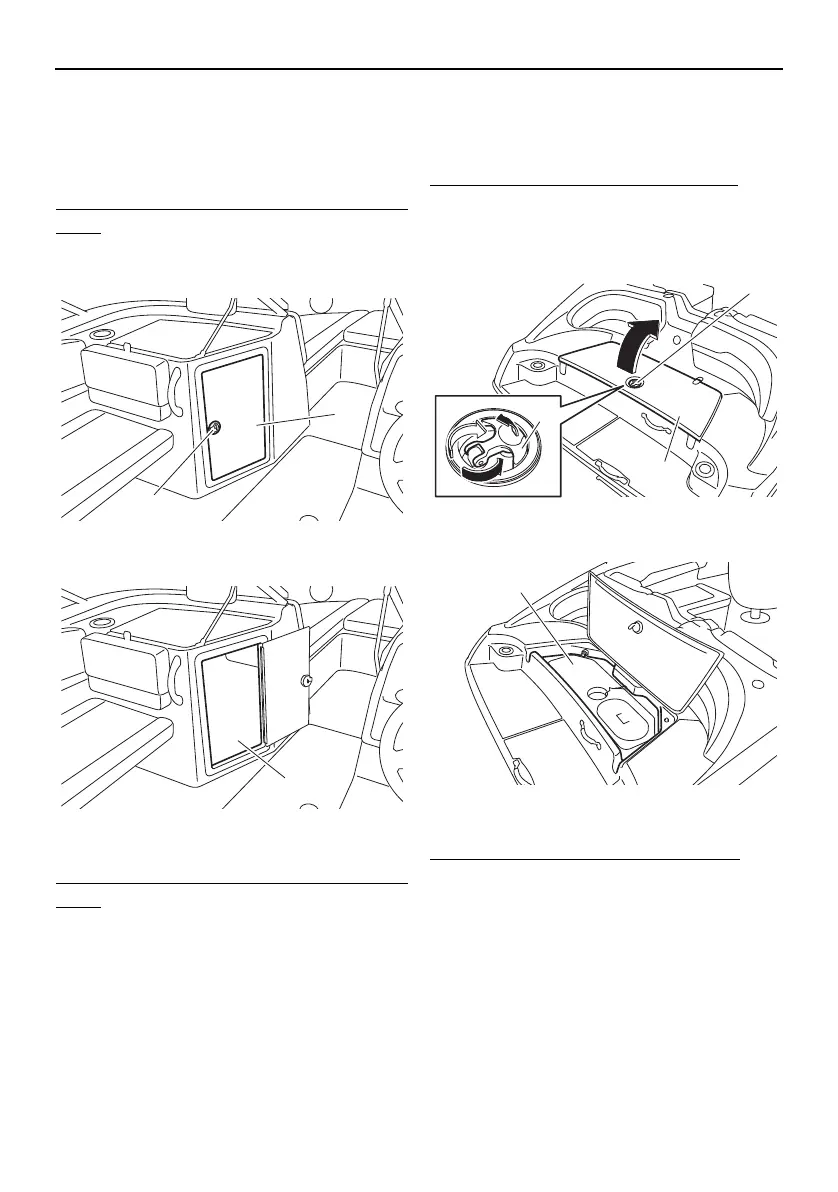

Port console storage compartment
The port console storage compartment is a
large storage compartment that is located in
the port console.
To open the port console storage compart-
ment:
Pull the port console storage compartment
door latch to open the door.
1 Port console storage compartment door latch
2 Port console storage compartment door
1 Port console storage compartment
To close the port console storage compart-
ment:
Close the port console storage compartment
door, and then push it to securely lock it in
place.
Wet storage compartment
The wet storage compartment is located un-
der the swim platform.
To open the wet storage compartment:
(1) Pull the lock handle up.
(2) Turn the lock handle 180°, and then open
the rear platform hatch.
1 Lock handle
2 Rear platform hatch
1 Wet storage compartment
To close the wet storage compartment:
(1) Close the rear platform hatch.
(2) Turn the lock handle and make sure that
the hatch is securely closed.
(3) Push the lock handle down.
TIP:
The engine will not start if the rear platform
hatch is not securely closed.
2
1
1
1
2
1
1
