Equipment operation
76
Bimini top (SX195/SX190)

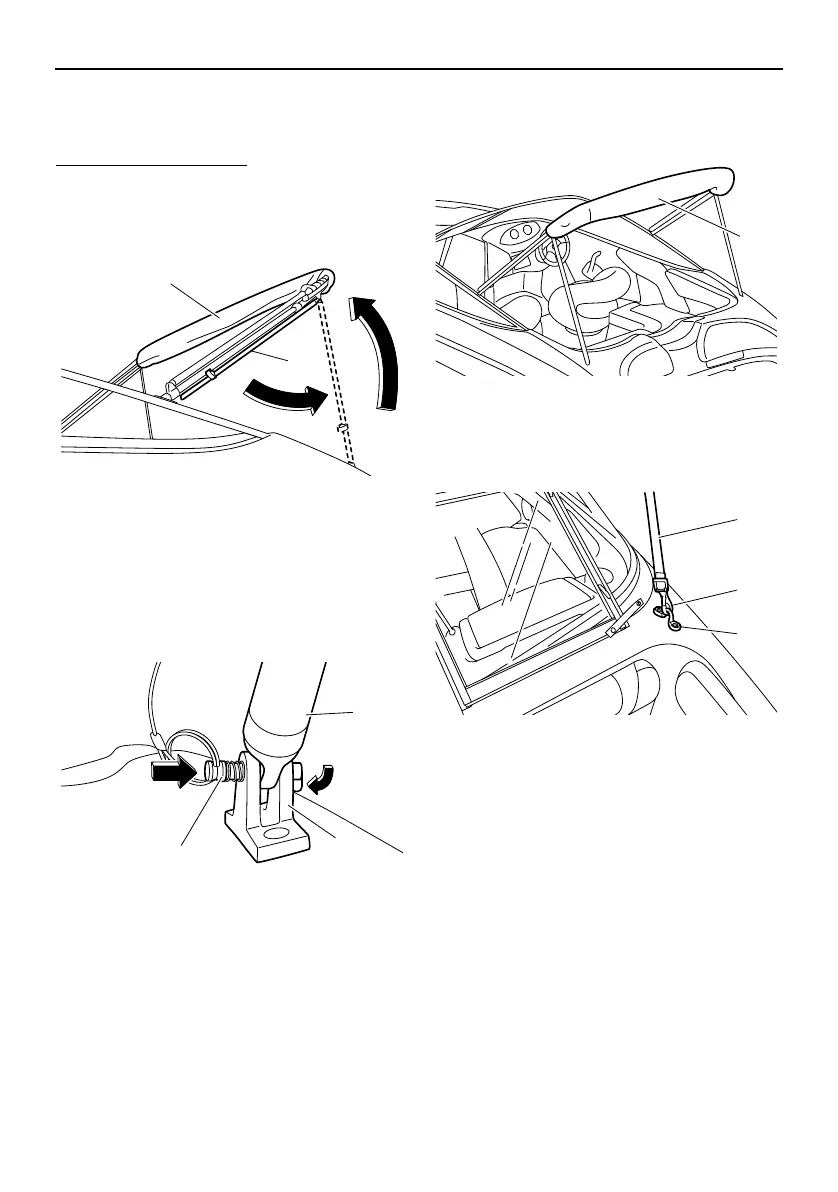

Setting up the bimini top
To set up the bimini top:
(1) Raise the bimini top, and then unhook
the rear support poles from the main
pole.
1 Bimini top
2 Rear support pole
(2) Secure each rear support pole to the rear
support pole mounting bracket using the
lock pin. Make sure that the tab on the
end of the lock pin is pointing downward.
1 Rear support pole
2 Rear support pole mounting bracket
3 Lock pin
(3) Remove the storage cover, unfold the bi-
mini top, and pull it toward the bow.
1 Storage cover
(4) Hook the latch on each front strap onto
the strap eye.
1 Front strap
2 Latch
3 Strap eye
1
2
3
2
1
1
1
2
3
