Yamaha DX7s User Manual
4
of 1
of 1 rating
108 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

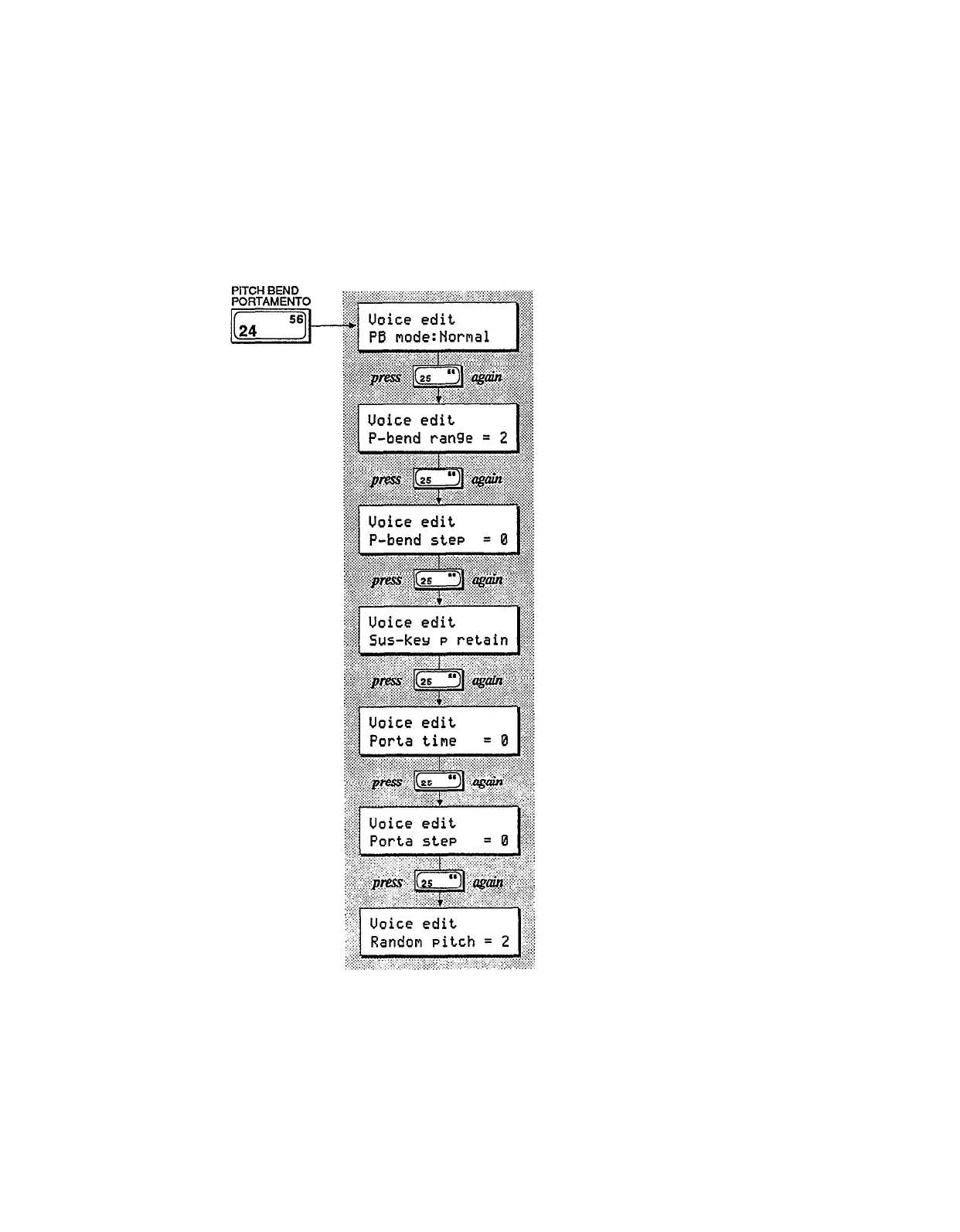

Button 24 LCD Displays
Pitch Bend Mode
(normal, lowest, highest, key on)
Pitch Bend Range
(0 ~ 12)
Pitch Bend Step
(0 ~ 12)
Portamento Mode
(Poly: sus-key, p retain, sus-key p follow)
(Mono: fingered porta, full time porta)
Portamento Time
(0 ~99)
Portamento Step
(0 ~ 99)
Random pitch
(0 ~ 7)
-49-
54
56
Table of Contents
Table of Contents
6
Default Chapter
2
Special Message Section
2
Section 1: Playing the Dx7S
7
Getting Started
9
Exploring the Dx7S Performance Library
14
Exploring the Dx7S Voice Library
18
The Play Modes
22
Using Controllers with the Dx7S
23
Section 2: Creating and Storing New Sounds
25
Creating and Storing New Sounds
26
Creating New Sounds
27
Editing and Edit Mode
27
Entering Edit Mode
28
Editing Performance and Voice Data
29
Using the Cursor Buttons and the Data Entry Buttons/Slider
29
Edit/Compare
29
Edit Button Quick Reference Guide
30
Saving New Sounds
32
Memory Protection
32
Turning Memory Protect off
32
Voice and Performance Memory
32
Storing Performance Data to Internal or Cartridge Memory
33
Storing Voice Data to Internal or Cartridge Memory
33
Section 3: Using the New Performance Features
35
Using the New Performance Features
36
Performance Edit Buttons
37
Button 27 LCD Displays
37
Button 28 LCD Displays
37
Button 29 LCD Displays
38
Basic Performance Parameters
39
Total Volume
39
Key Shift
39
EG Forced Damp
40
Performance Name
41
Voice Number
41
Performance Controllers
42
Sustain Footswitch (FS 1)
42
Footswitch 2 (FS 2)
42
Continuous Sliders
43
FM Parameters Assignable to CS1 and CS2
43
Micro Tuning
44
Selecting a Micro Tuning
44
The Micro Tuning Presets
44
Micro Tuning Editing and Storage
44
Section 4: Using the New Voice Features
47
Using the New Voice Features
48
Voice Edit Buttons
49
Button 7 LCD Display
49
Button 8 LCD Display
50
Button 9 LCD Display
50
Button 10 LCD Displays
51
Button 11 LCD Display
52
Button 12 LCD Display
53
Button 13 LCD Display
54
Button 23 LCD Displays
54
Button 24 LCD Displays
55
Button 25 LCD Displays
56
Button 26 LCD Displays
57
Basic Voice Editing Functions
58
Operator Select
58
Operator On/Off
58
EG Copy
58
New Voice Parameters
59
Pitch Envelope
59
Lfo
59
Key Modes
60
Voice Controllers
61
Function Data and Voice Effect Data
61
Pitch Bend Modes
61
Foot Controller 1 and 2
61
Pitch Bias
62
Fractional Scaling
63
Fractional Scaling and Level Scaling
63
Fractional Scaling Editing and Storage
63
Section 5: Memory Functions
65
Memory Functions
66
Utility Buttons
67
Button 14 LCD Displays
68
Memory Types
70
Voice & Performance Memory
70
Memory Layout
70
System Setup Memory
71
Micro Tuning Memory
71
Fractional Scaling Memory
71
Initialized Memory
71
Current Play/Edit Memory
71
Compare/Recall Memory
71
Memory Storage Types
72
Internal Memory
72
Cartridge Memory
72
ROM Cartridge
73
Basic Utility Functions
74
Master Tune
74
Recall Edit
74
Initialize
74
Cartridge Memory Functions
75
Using Cartridge Data
75
Formatting a RAM Cartridge
76
Loading Voice & Performance Data from a RAM Cartridge
76
Section 6: MIDI Functions
77
MIDI Functions
78
MIDI Buttons
79
Button 31 LCD Displays
79
Button 32 LCD Displays
80
CS 1 and CS 2 Controller Numbers
81
Local On/Off
81
MIDI in Control Number
81
Omni Mode
81
Receive Channel
81
System Setup
81
Transmit Channel
81
After Touch
82
Note On/Off
82
Program Change Memory
82
Program Change Transmission
82
MIDI Device Number
83
MIDI out
83
MIDI System Exclusives
83
Transmit and Receive Block
83
Immediate MIDI Program Change out
84
Appendices
85
Appendix 1: Supplemental Information
86
Appendix 2: Bibliography
87
MIDI Implementation Chart
88
MIDI Data Format
90
Parameter Chart
98
Specifications
106
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Yamaha DX7s and is the answer not in the manual?
Ask a question
