DXS12/DXS15
20

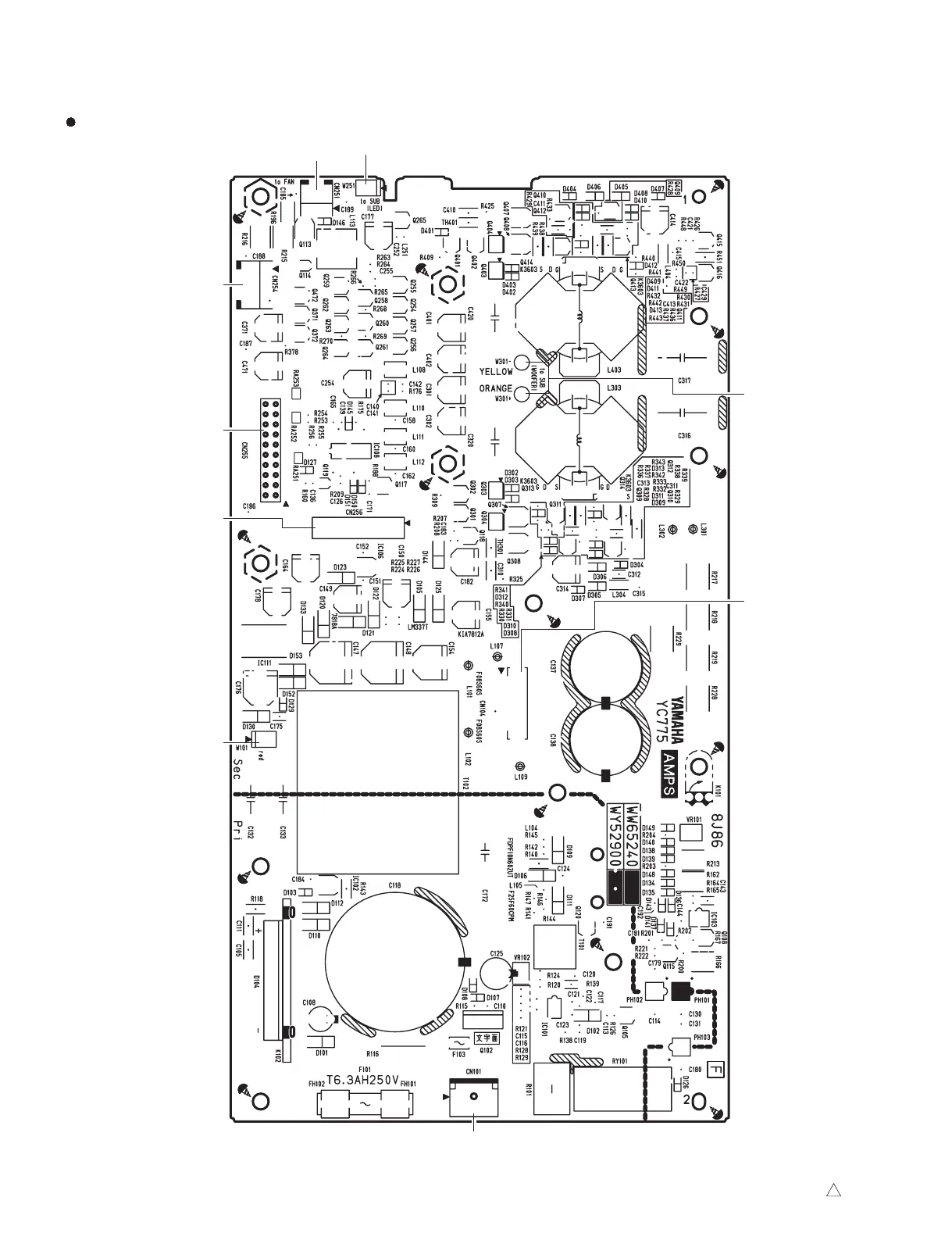

AMPSW Circuit Board
Component side
（部品側）
Scale: 90/100
to SUBW4-CN604
to SUBW4-CN606
to DSPW-CN706
to DC FAN
not connected
not connected
to SUBW1-W601
not installed
to POWER TRANSFORMER
（電源トランス）
2NA-WW65240
2
