LOWR

Lower unit

6-9

6D93G11

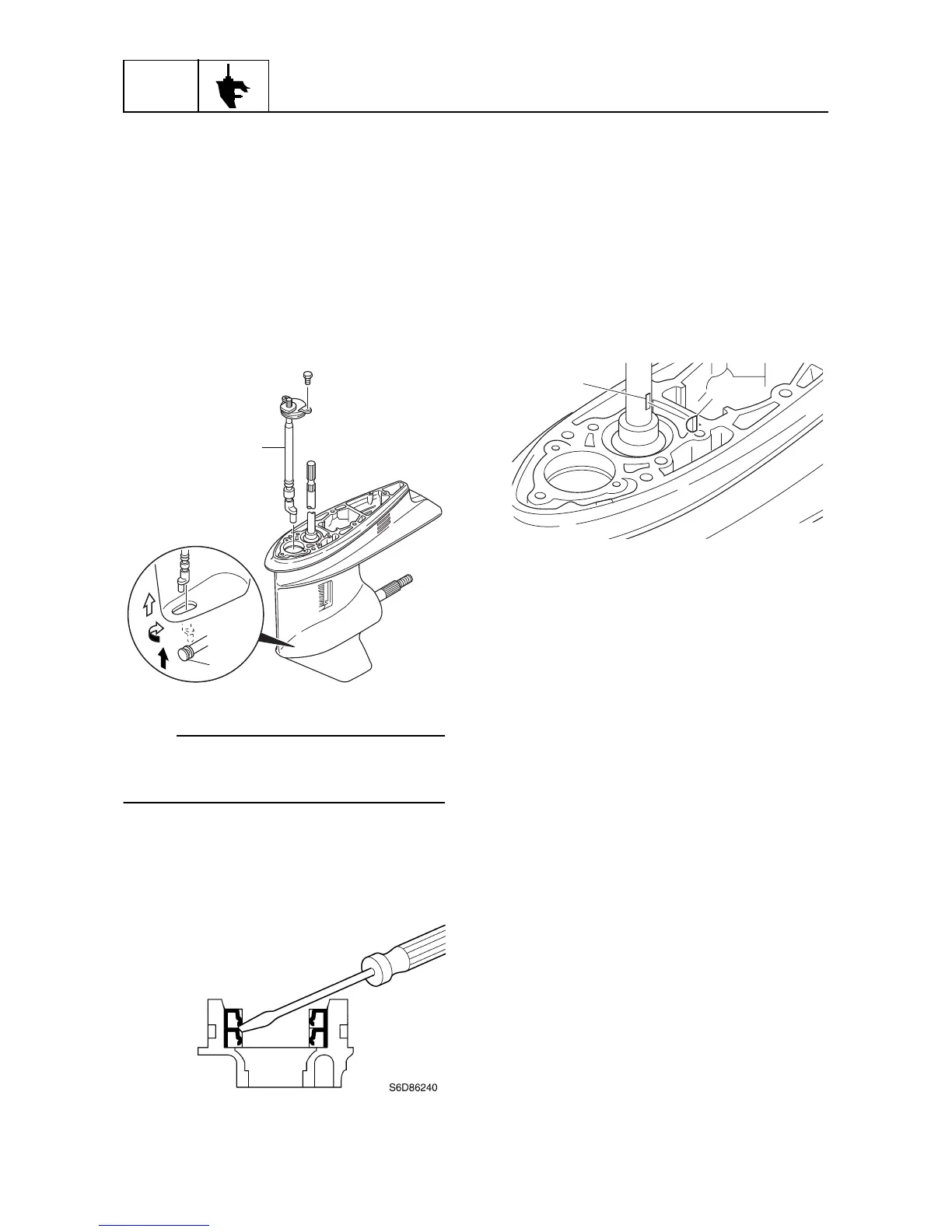

Removing the water pump and shift

rod

1. Remove the water pump housing and

impeller.

2. Remove the Woodruff key.

3. Remove the outer plate cartridge and oil

seal housing.

4. Remove the shift rod assembly

NOTE:

Pull up the shift rod assembly a little

to dis-

connect it from the shift slider

, turn it clock-

wise 90°

, and then remove it.

Disassembling the oil seal housing

1. Remove the oil seals using a flat head

screw driver.

Checking the water pump and shift

rod

1. Check the water pump housing for defor-

mation. Replace if necessary.

2. Check the impeller and insert cartridge

for cracks or wear. Replace if necessary.

3. Check the Woodruff key

and the

groove

on the drive shaft for wear.

Replace if necessary.

4. Check the shift rod for cracks or wear.

Replace if necessary.

S60C6405

S6D86050
