BRKT
Bracket unit
7-47
6D93G11

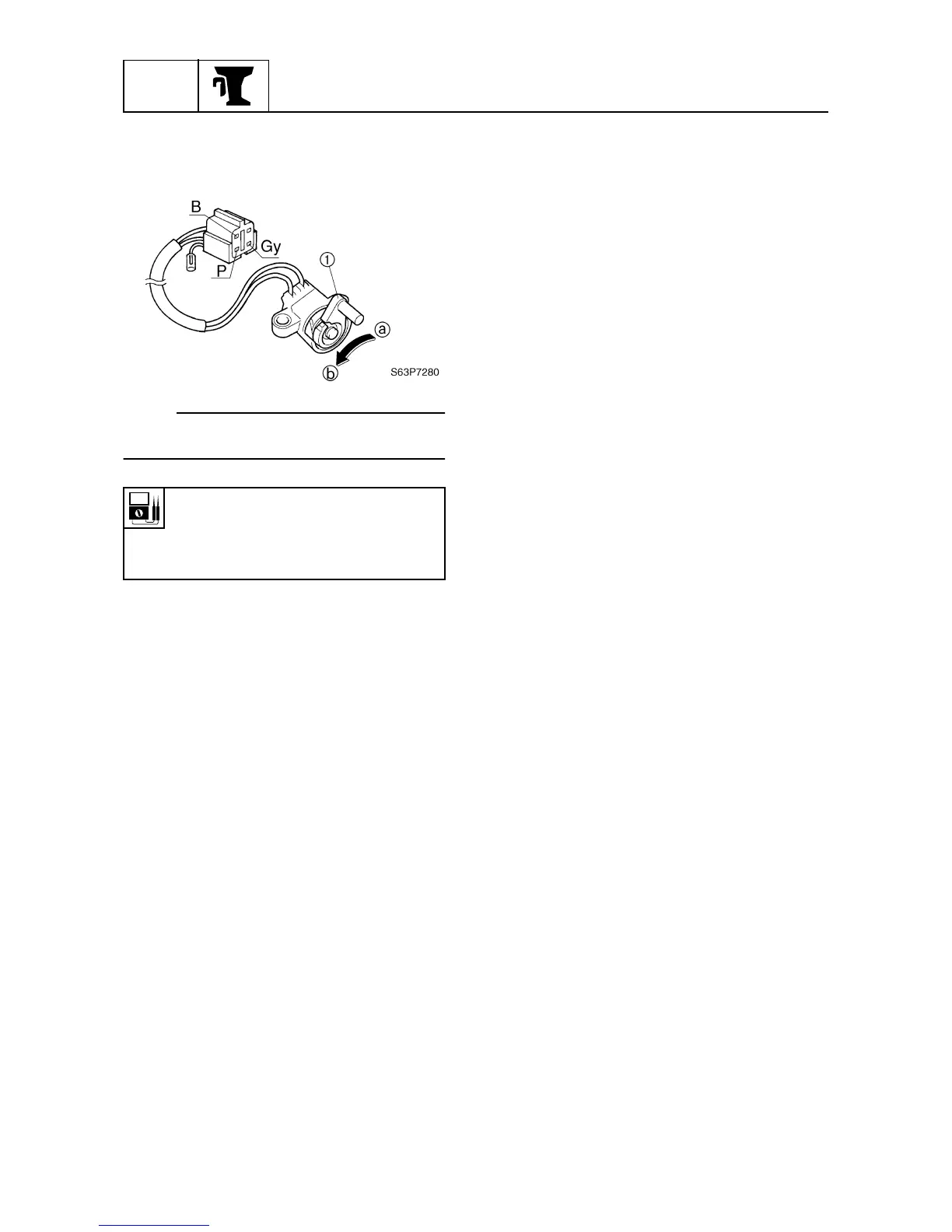

Checking the trim sensor
1.
Measure the trim sensor resistance.
Replace if out of specification.
NOTE:
Turn the lever
1
and measure the resistance
as it gradually changes.
Trim sensor resistance:
Pink (P)
–
Black (B)
238.8
–
378.8
Ω
at 20
°
C (68
°
F)
a
9
–
11
Ω
at 20
°
C (68
°
F)
b
201
203
