Maintenance

Single engine Twin engines

EMU29372

Disconnecting the battery

1. Turn off the battery cut-off switch (if

equipped) and main switch. NOTICE: If

they are left on, the electrical system

can be damaged.

[ECM01931]

2. Disconnect the negative cable(s) from

the negative (-) terminal. NOTICE: Al-

ways disconnect all negative (-) cables

first to avoid a short circuit and dam-

age to the electrical system.

[ECM01941]

3. Disconnect the positive cable(s) and re-

move the battery from the boat.

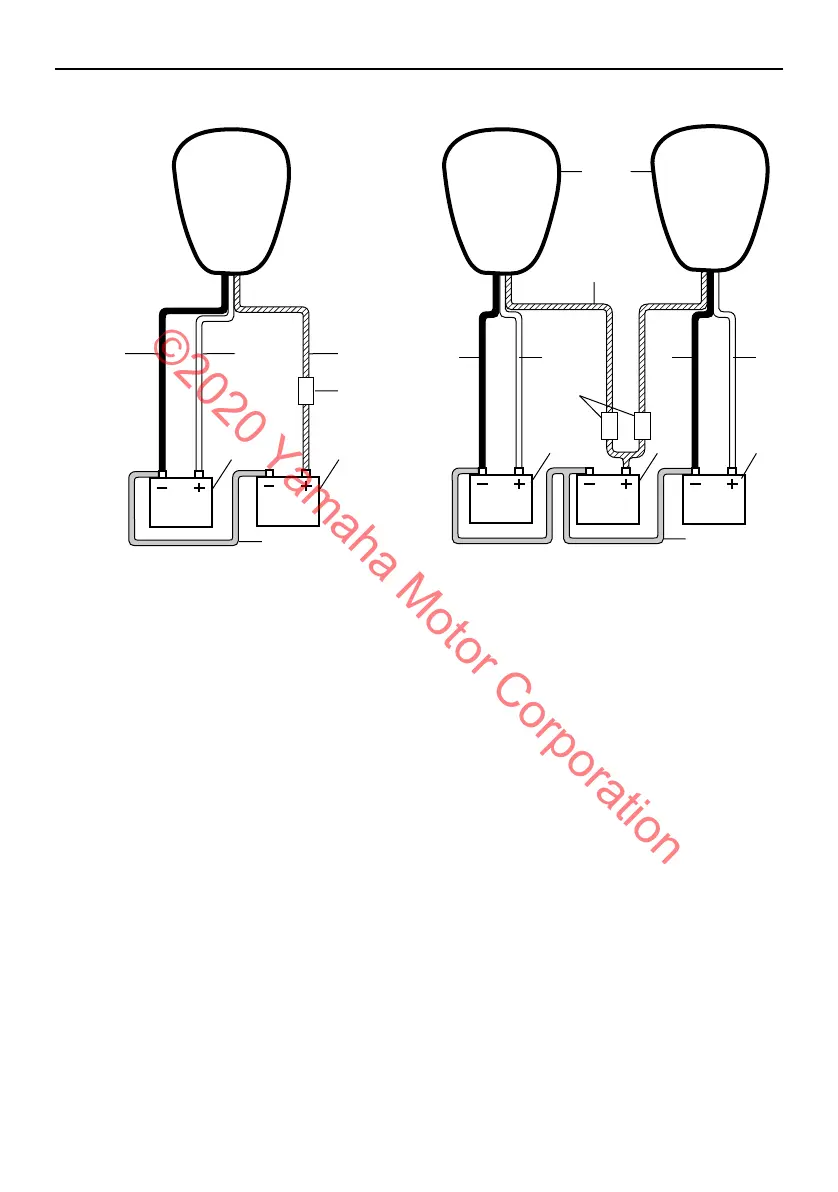

1. Isolator leads with circuit protection

2. Red cable

3. Black cable

4. Fuse

5. Battery for accessories

6. Battery for starting

7. Negative connecting cable

2 1

6 5

ZMU05939

1. Starboard side engine

2. Port side engine

3. Red cable

4. Black cable

5. Isolator leads with circuit protection

6. Fuse

7. Battery for starting

8. Battery for accessories

9. Negative connecting cable

ZMU05941

7 8 7

U6DV37E0.book Page 98 Monday, December 10, 2018 4:07 PM
