Instruments and indicators
41
 Engine trouble alert “ ”
If the engine malfunctions while cruising,
this alert will be activated. Return to port
and consult a Yamaha dealer immediately.
 Low cooling water pressure alert “ ”
If the cooling water pressure drops too low,
this alert will be activated. Get back to port
and consult a Yamaha dealer immediately.
 Steering alert notification (Helm Mas-
ter
®
) “ ”
If the steering malfunctions related to Helm
Master
®
while cruising, this alert will be ac-
tivated. Return to port and consult a
Yamaha dealer immediately.
 Engine emission issue “ ”
If the engine has some trouble related to
the emission system, this alert will be acti-
vated. Get back to port and consult a
Yamaha dealer immediately.
EMU41782

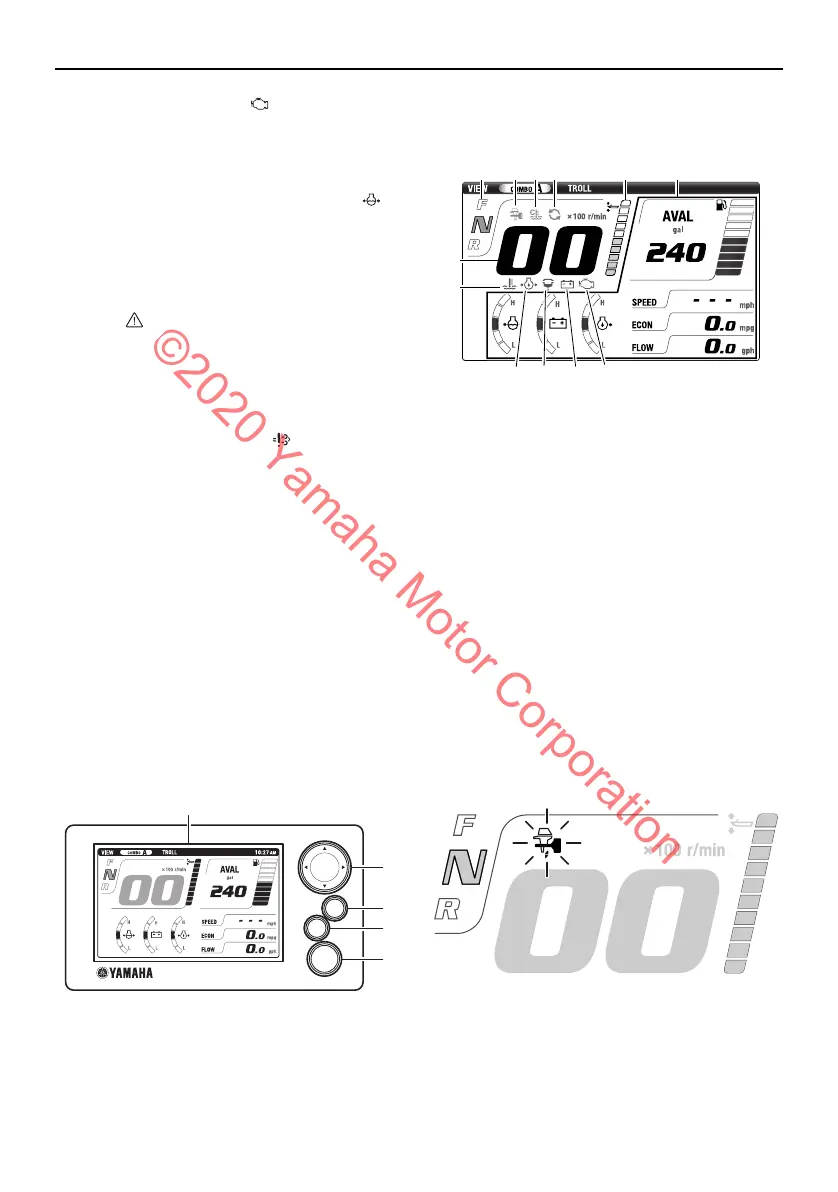

6Y9 Multifunction Color Gauge
The 6Y9 Multifunction Color Gauge (hereinaf-
ter called the Multi-Display) shows engine
status and alert information. The display of
optional items can be changed. This manual
mainly covers the alert display. For informa-
tion on other settings or changing the display,
see the 6Y9 Multifunction Color Gauge own-
er’s manual.
EMU41643
Yamaha Security System indicator
(optional)
This indicator appears when the Yamaha Se-
curity System is in lock mode. Make sure it is
off before starting the engine.
1. Directional keypad
2. Set button
3. Cancel button
ZMU07233
SET
MENU
CANCEL
4
3
1
5
2
4. Menu button
5. Display
1. Shift position display
2. Yamaha Security System indicator (optional)
3. Engine warm-up indicator
4. Engine synchronization indicator
5. Trim meter
6. Optional items
7. Engine trouble-alert indicator
8. Low battery voltage-alert indicator
9. Water separator-alert indicator
10.Low oil pressure-alert indicator
11.Overheat-alert indicator
12.Tachometer
54321 6
7
8
9
10
12
11
ZMU07234
ZMU07235
