Trouble Recovery
104
3. When replacing the engine main fuse or
isolator fuse, remove the screws, and
then remove the fuse. Install the spare
engine main fuse, and then tighten the
screws.
4. When replacing a fuse other than the en-
gine main fuse or isolator fuse, remove
the fuse using the fuse puller. Install a
spare fuse of the proper amperage.
Consult your Yamaha dealer if the new fuse
immediately blows again.
EMU40984
Power trim and tilt unit will not oper-
ate
EWM02331
Never get under the engine while it is tilt-
ed. Severe injury could occur if the out-
board motor accidentally falls.
If the outboard motor cannot be tilted up or
down using the power trim and tilt unit be-
cause of a discharged battery or a failure with
the power trim and tilt unit, the outboard mo-
tor can be tilted manually.
1. Stop the engine.
2. Loosen the manual valve screw by turn-
ing it counterclockwise until it stops.

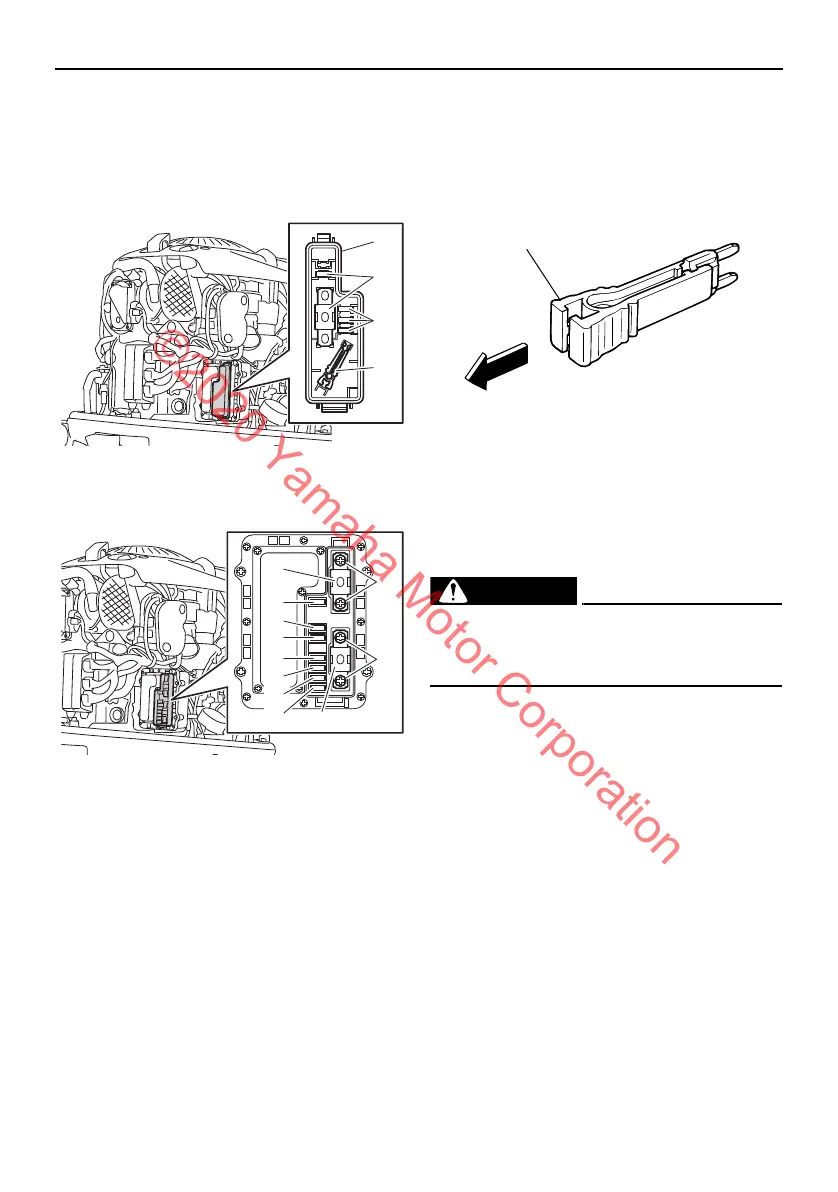

1. Fuse box cover
2. Spare fuse (10 A, 15 A, 20 A, 30 A, 60 A)
3. Fuse puller
1. Fuel feed pump fuse (10 A)
2. Main switch / PTT switch fuse (20 A)
3. Shift actuator fuse (15 A)
4. Starting switch fuse (30 A)
5. Ignition coil / Fuel injector / Variable cam-
shaft timing / Engine ECM (Electronic con-
trol module) fuse (30 A)
6. Electric throttle valve fuse (10 A)
7. Fuel pump fuse (15 A)
8. Engine main fuse (60 A)
9. Isolator fuse (60 A)
10.Screw
1. Fuse puller
U6DV37E0.book Page 104 Monday, December 10, 2018 4:07 PM
