Yamaha F150 User Manual

Components
31

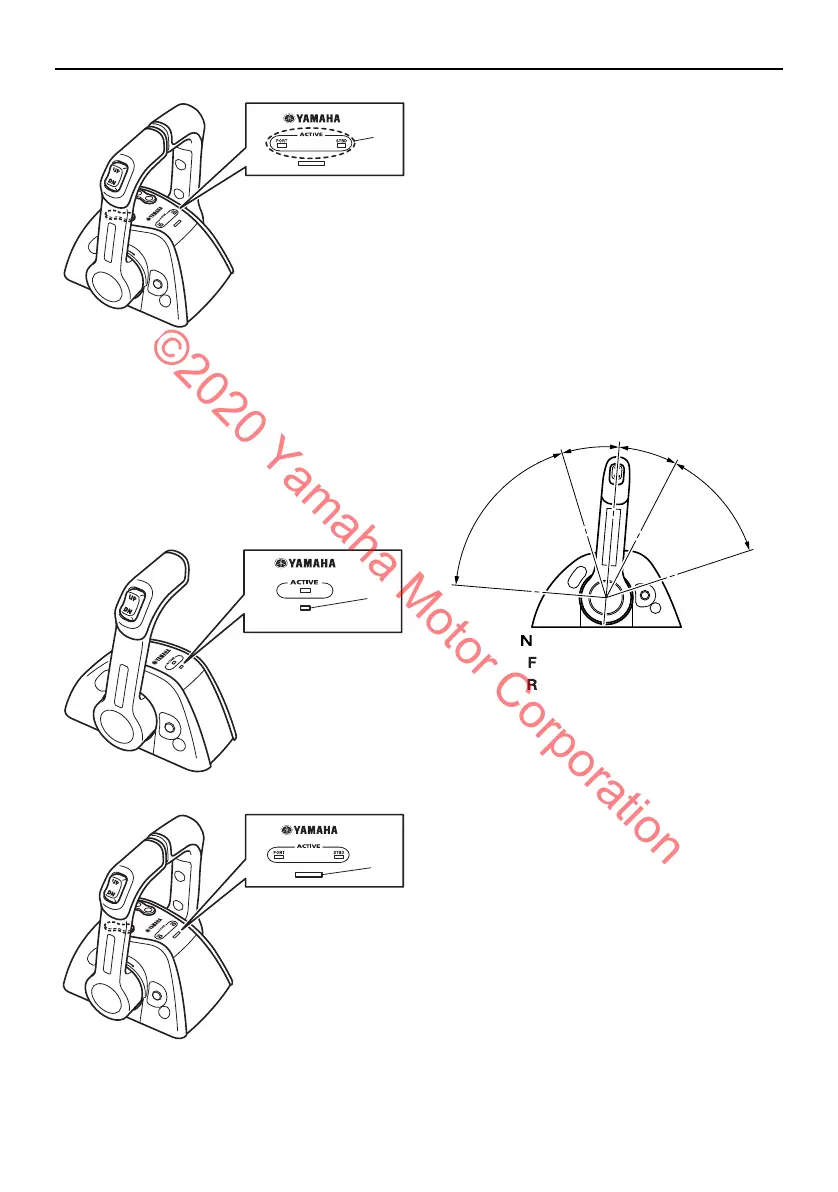

EMU34985
Digital electronic control-alert indica-
tor
The digital electronic control-alert indicator
lights when trouble occurs in the connection
between the digital electronic control and
outboard motor. Consult your Yamaha dealer
for details.
EMU34993
Control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved 22.5° (a detent can be felt). Moving
the lever farther opens the throttle, and the
engine will begin to accelerate.
Digital electronic control for twin type has the
function of automatically synchronizing the
engine speeds of both engines of the port
and starboard sides.
EMU35003
Free throttle switch
In neutral, keep this switch pressed, move
the control lever forward, and release the
switch after the digital electronic control-ac-
tive indicator starts blinking. While the indica-
tor blinks, you can open or close the throttle.
This can also be done when the control lever
is set in reverse.
1. Digital electronic control-active indicator
1. Digital electronic control-alert indicator
1. Digital electronic control-alert indicator
ZMU05890
1
ZMU05889
1
ZMU05891
1
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed
6. Throttle
7. Fully open
ZMU05878
N
1
F
7
6
2
R
3
4
4
6
5
7
5
