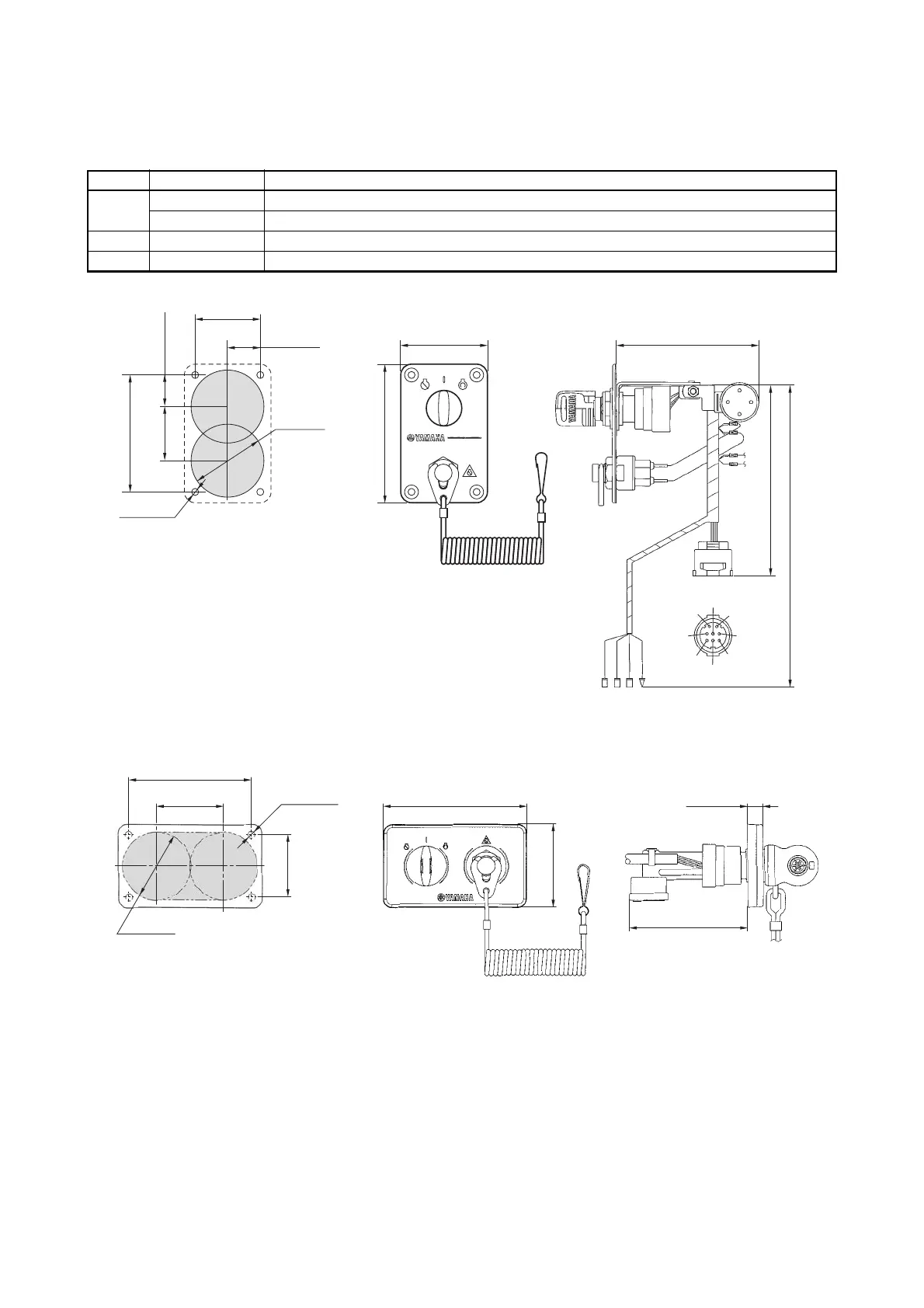

REMOTE SWITCH TYPES AND APPLICATIONS
COMBINATION SWITCH PANEL (IG SWITCH AND EMERGENCY STOP SWITCH)
SINGLE IG SWITCH W/ PANEL
To be continued.
Ref. No. Part No. Description
1
704-82570-10 w/ choke SW
6R5-82570-06 w/o choke SW, For Prime start model or Digital Network System (6Y8)
2 6X6-82570-31 For Digital Network System (6Y8), Main station helm
3 6X6-82570-00 For Digital Network System (6Y8), 2nd station helm
68 (2.68)
110 (4.33)
51 (2.0)
Cut out shaded area
25.5 (1.0)
54 (2.12)
5.6 (0.22)
93 (3.66)
44.5 (1.75) 24.3 (0.95)
1
2
mm (in.)
mm (in.)
P
R
B
G
Y
L
B
Y
G
R
BrW
140 (5.51)
355 (13.98)
B(W)
W(B)
66 (2.60)
Cut out shaded area
1
14 (4.49)
53 (2.09) 12 (0.47)
97.4 (3.83)
49.4 (1.94)
54 (2.13)
5.6 (0.22)
100 (4.00)
101 (3.98)
To Next Page
