Yamaha F70AET User Manual

7-9

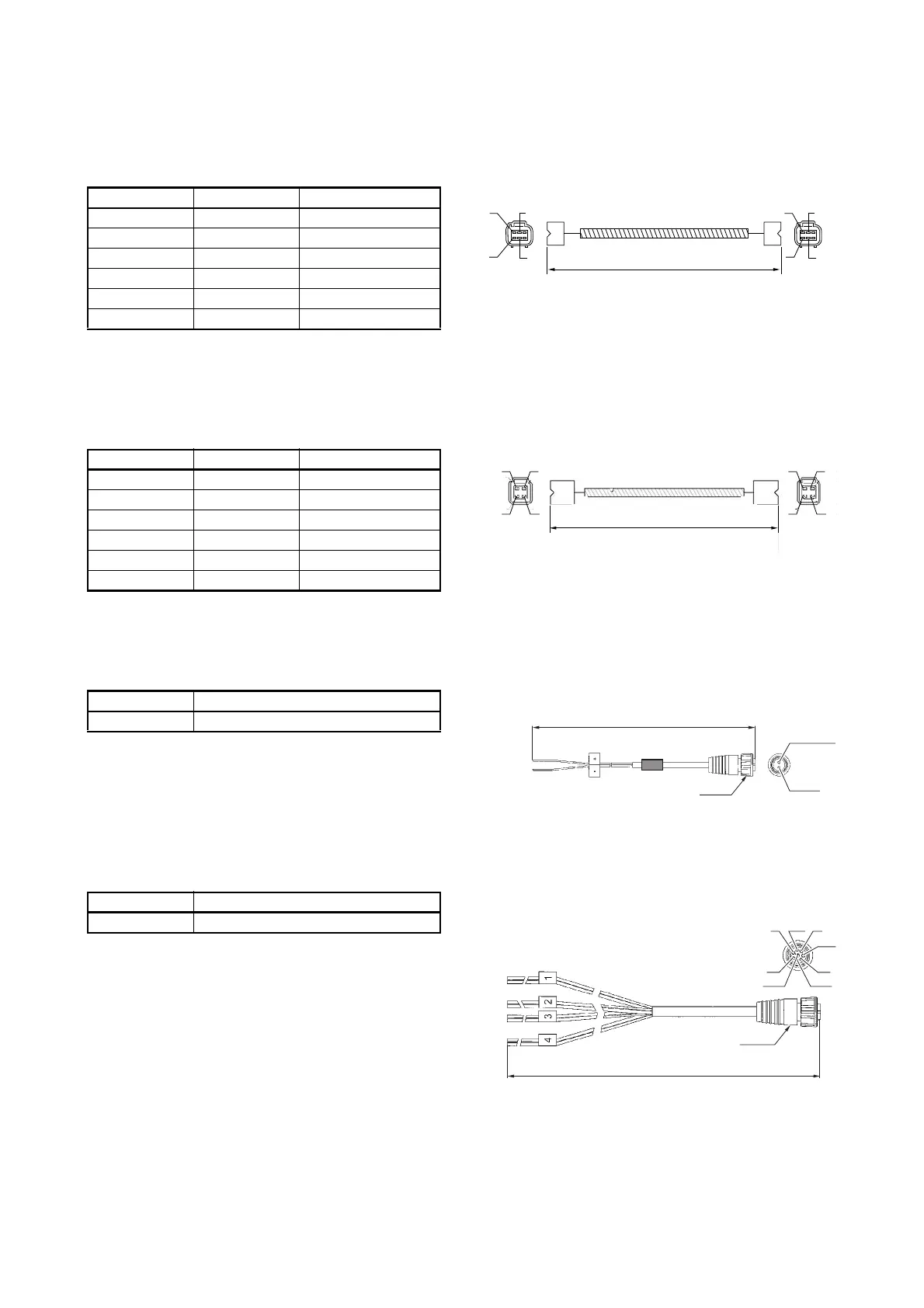

WIRE HARNESS
MAIN BUS WIRE
Used to connect between the hub and hub, between the RC and hub, etc. (shared with 6Y8 network
system)
PIGTAIL BUS WIRE
Used to connect between the hub and gauge, between the hub and equipment (IF, gateway), etc.
(shared with 6Y8 network system)
GPS WIRE
Used to connect between premium gauge and NMEA0183 compatible GPS unit.
TANK WIRE
Used to connect between the premium gauge and a fuel tank, fresh water tank, sewage tank, etc.
Part No. Length Remarks
6Y8-82553-41 9.1 m (30 ft)
6Y8-82553-31 7.6 m (25 ft)
6Y8-82553-21 6.1 m (20 ft)
6Y8-82553-11 4.6 m (15 ft)
6Y8-82553-50 3.0 m (10 ft)
6Y8-82553-01 0.3 m (1 ft)
Part No. Length Remarks
6Y8-82521-51 3.6 m (12 ft)
6Y8-82521-41 2.7 m (9 ft)
6Y8-82521-31 1.8 m (6 ft)
6Y8-82521-21 0.9 m (3 ft)
6Y8-82521-11 0.6 m (2 ft)
6Y8-82521-01 0.3 m (1 ft)
Part No. Remarks
6Y9-8356N-01 NMEA 0183 compatible GPS
Part No. Remarks
6Y9-8356N-10 4-tank acceptable
Length
(GRY) (GRY)
RB
W
RB
WLL
Length
BR
WL
BR
WL
(WHT) (WHT)
To GPS
350 (14)
(BLK)
L (GND)
W (+)
L (GND)
W (+)
Green tube
mm (in.)
270 (10.63)
(BLK)
B/G
GB/PP
Or
B/Or
P
B/P
G
B/G
Br
B/Br
Or
B/Or
Br
B/Br
Fuel tank #1
Fuel tank #2
Fuel tank #3
Fuel tank #4
mm (in.)
