5-20

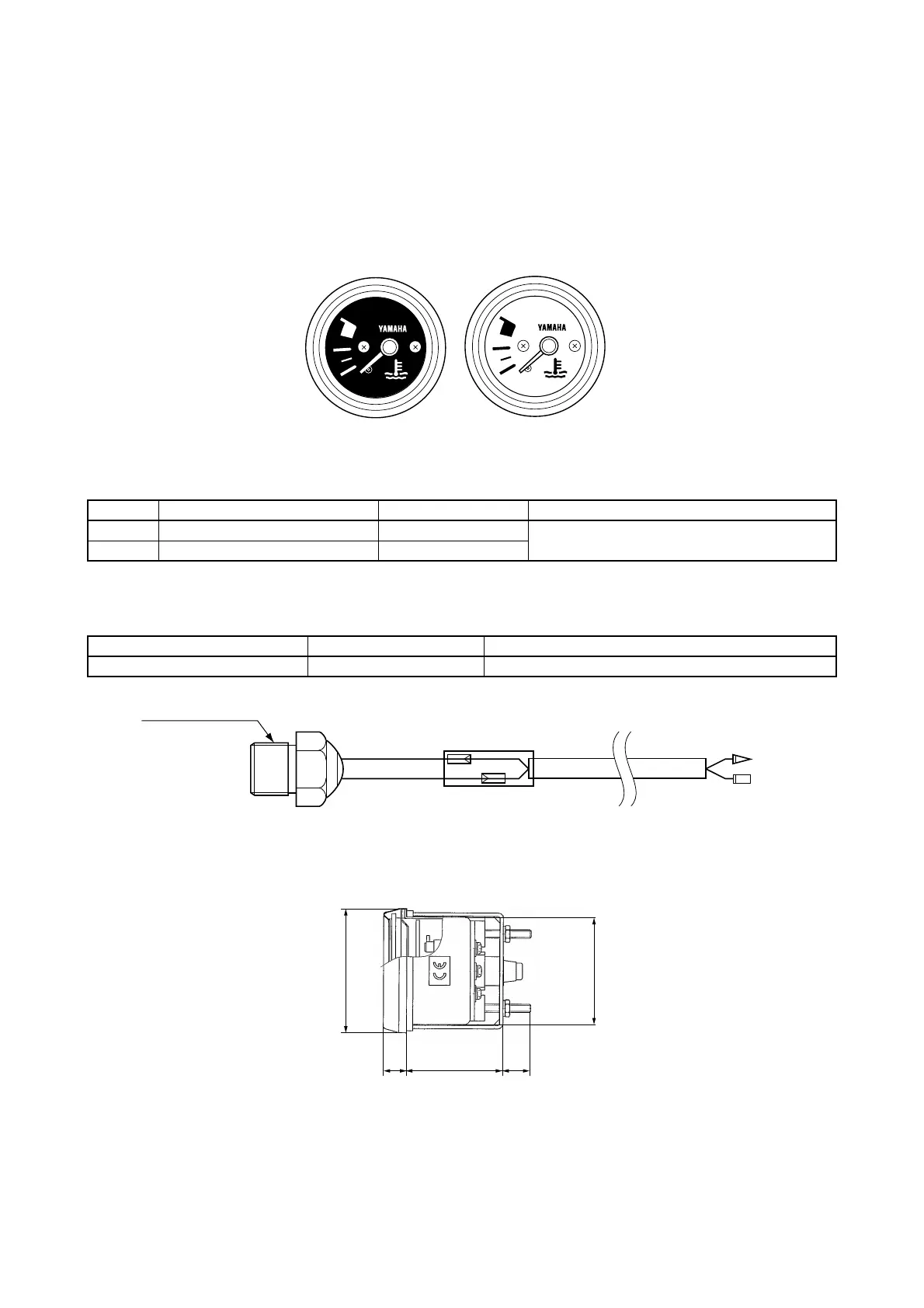

COOLANT TEMP. METER
The coolant temperature meter uses a sensor on the engine unit to indicate the temperature of the
cooling water inside the powerhead.
The meter has a red zone to indicate overheating so problems can be corrected before severe dam-
age occurs.
* For all in-line cylinder models, the position for installing the sensor shares the coolant pressure output.
Therefore, either the coolant temperature meter or the coolant pressure meter can be used for one engine.
* However, on V4, V6, F150, and F200 (L4) models, both meters can be used for one engine.
COOLANT TEMP. METER TYPES AND APPLICATIONS
ADDITIONAL PARTS REQUIREMENTS
COOLANT TEMP. METER DIMENSIONS
Ref. No. Description Part No. Applicable model
1 Black panel 6Y7-83590-00
Above 40 [3-cylinder]
Above F25 (FT/T25) [Mechanical RC]
2 White panel 6Y7-83590-10
Description Part No. Remarks
Coolant temp. sensor 688-83591-00 With 7 m (23 ft) leads
60 (2.36)
11 (0.43) 13.79 (0.54)
46.6 (1.83)
52 (2.05)
