Yamaha FJR1300 User Manual

2-1
2
EAU00026
2-
DESCRIPTION

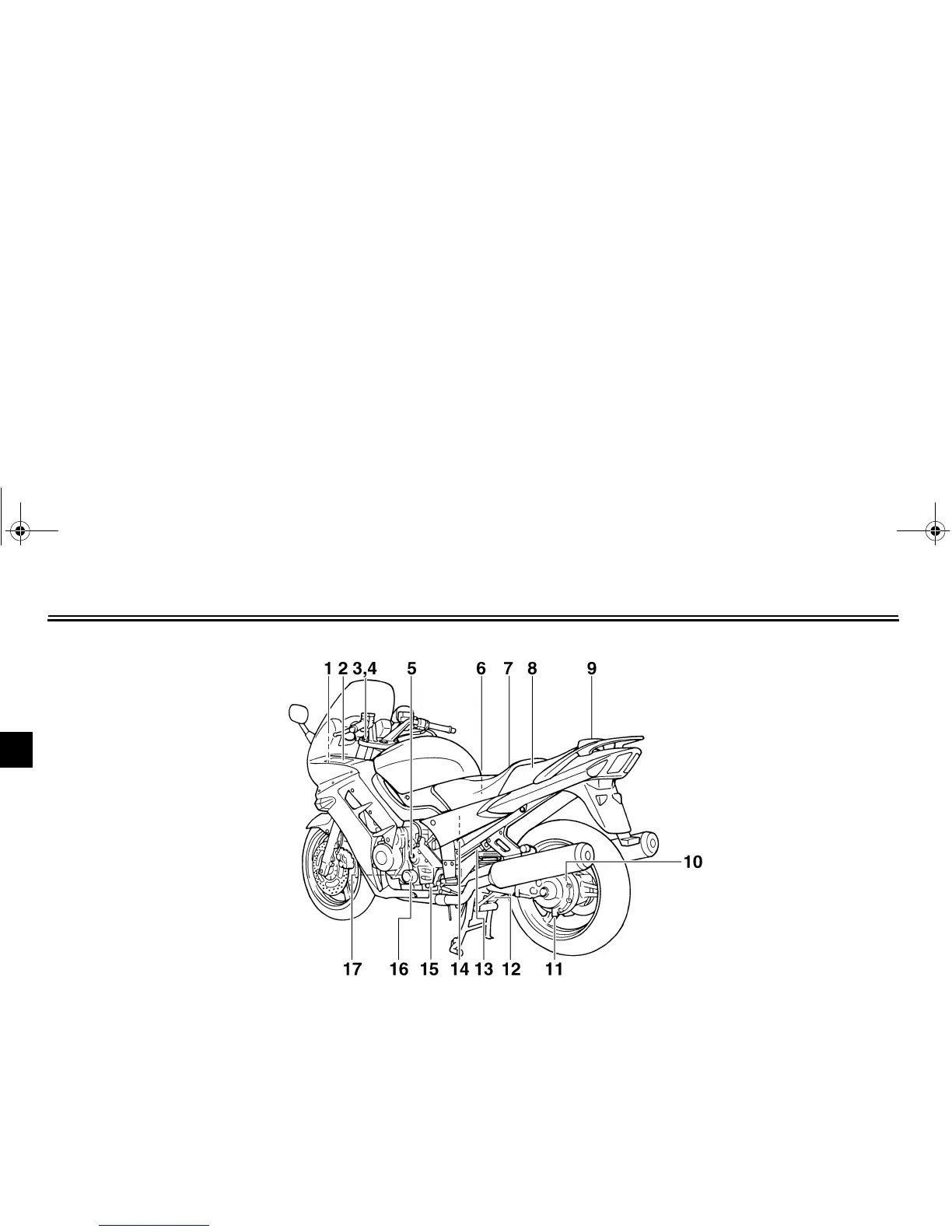

Left view
1. Fuse box (page 6-32)
2. Accessory box (page 3-19)
3. Front fork spring preload adjusting bolt (page 3-20)
4. Front fork rebound damping force
adjusting knob (page 3-20)
5. Engine oil filler cap (page 6-9)
6. Owner’s tool kit (page 6-1)
7. Rider seat (page 3-17)
8. Passenger seat (page 3-17)
9. Carrier
10. Final gear oil filler bolt (page 6-12)
11. Final gear oil drain bolt (page 6-12)
12. Shock absorber assembly rebound
damping force adjusting knob (page 3-22)
13. Shock absorber assembly spring preload
adjusting lever (page 3-22)
14. Air filter element (page 6-15)
15. Shift pedal (page 3-11)
16. Engine oil filter cartridge (page 6-9)
17. Engine oil level check window (page 6-9)
U5JWE2.book Page 1 Wednesday, November 6, 2002 3:32 PM

Yamaha FJR1300 Specifications

General

Displacement	1298cc
Compression Ratio	10.8:1
Final Drive	Shaft
Wheelbase	60.8 in
Fuel Capacity	6.6 gal
Bore x Stroke	79.0mm x 66.2mm
Fuel System	Fuel Injection
Ignition	TCI
Rear Suspension	Single shock, 4.9-in travel
Front Brakes	Dual 320mm discs
Rear Brakes	282mm disc
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	31.7 in or 32.5 in
Curb Weight	642 lb
