INSTRUMENT AND CONTROL FUNCTIONS

3-12

EAU26820

Brake lever

The brake lever is located at the right

handlebar grip. To apply the front

brake, pull the lever toward the handle-

bar grip.

The brake lever is equipped with a po-

sition adjusting dial. To adjust the dis-

tance between the brake lever and the

handlebar grip, turn the adjusting dial

while holding the lever pushed away

from the handlebar grip. Make sure that

the appropriate setting on the “”

mark is aligned with the arrow mark on

the brake lever.

EAU00162

Brake pedal

The brake pedal is on the right side of

the motorcycle. To apply the rear

brake, press down on the brake pedal.

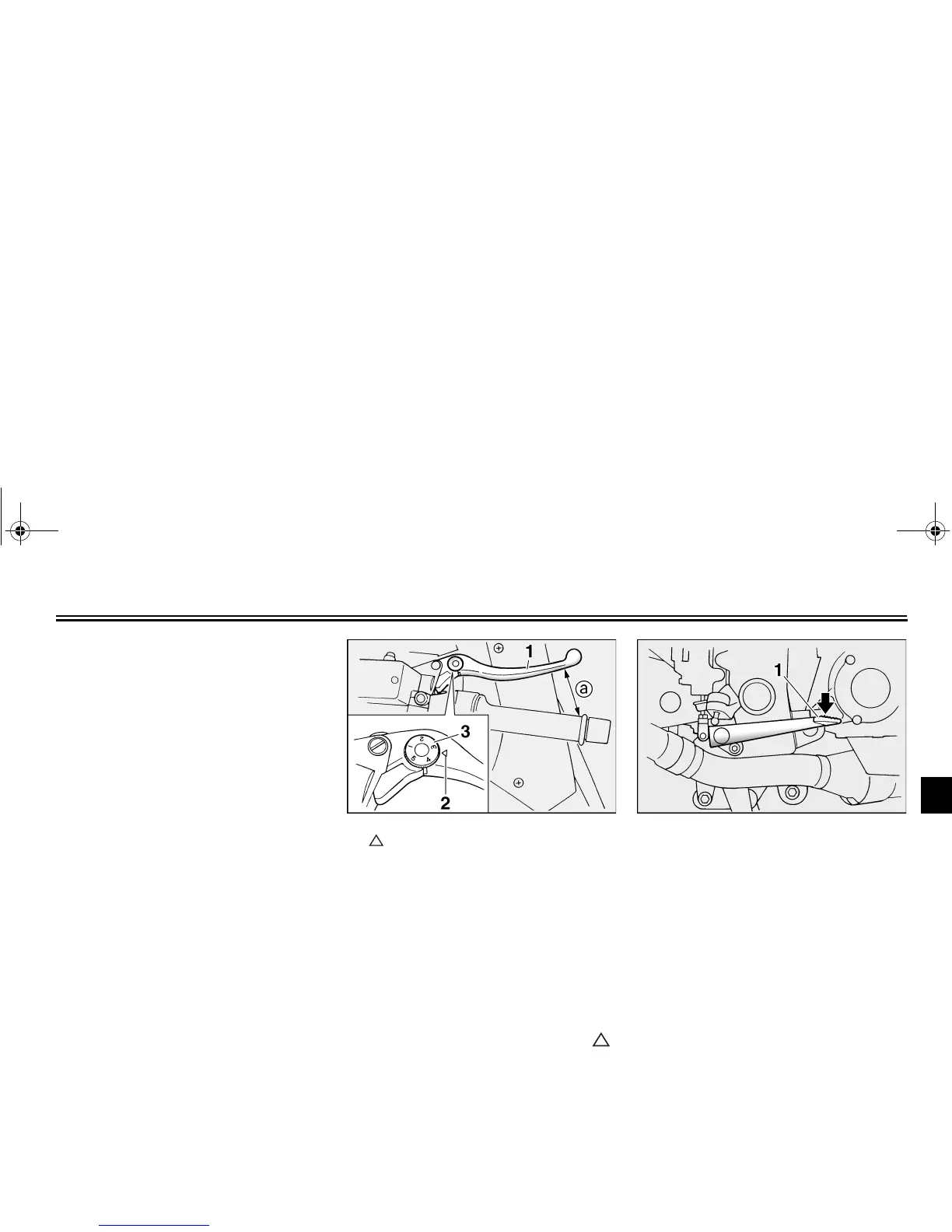

1. Brake lever

2. “” mark

3. Brake lever position adjusting dial

a. Distance between brake lever and handlebar

grip

1. Brake pedal
