INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00109
Anti-theft alarm (optional)
This motorcycle can be equipped with
an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU00118
Handlebar switches
EAU04604
Pass switch “”
Press this switch to flash the head-
lights.
EAU03888
Dimmer switch “
/ ”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU04077
Windshield position adjusting
switch “”
To move the windshield up, push this
switch in direction
a
. To move the
windshield down, push the switch in di-
rection
b
.
_
When the engine is turned off, the
windshield will automatically return to
the lowest position.
_
EAU03889
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU00129
Horn switch “”
Press this switch to sound the horn.

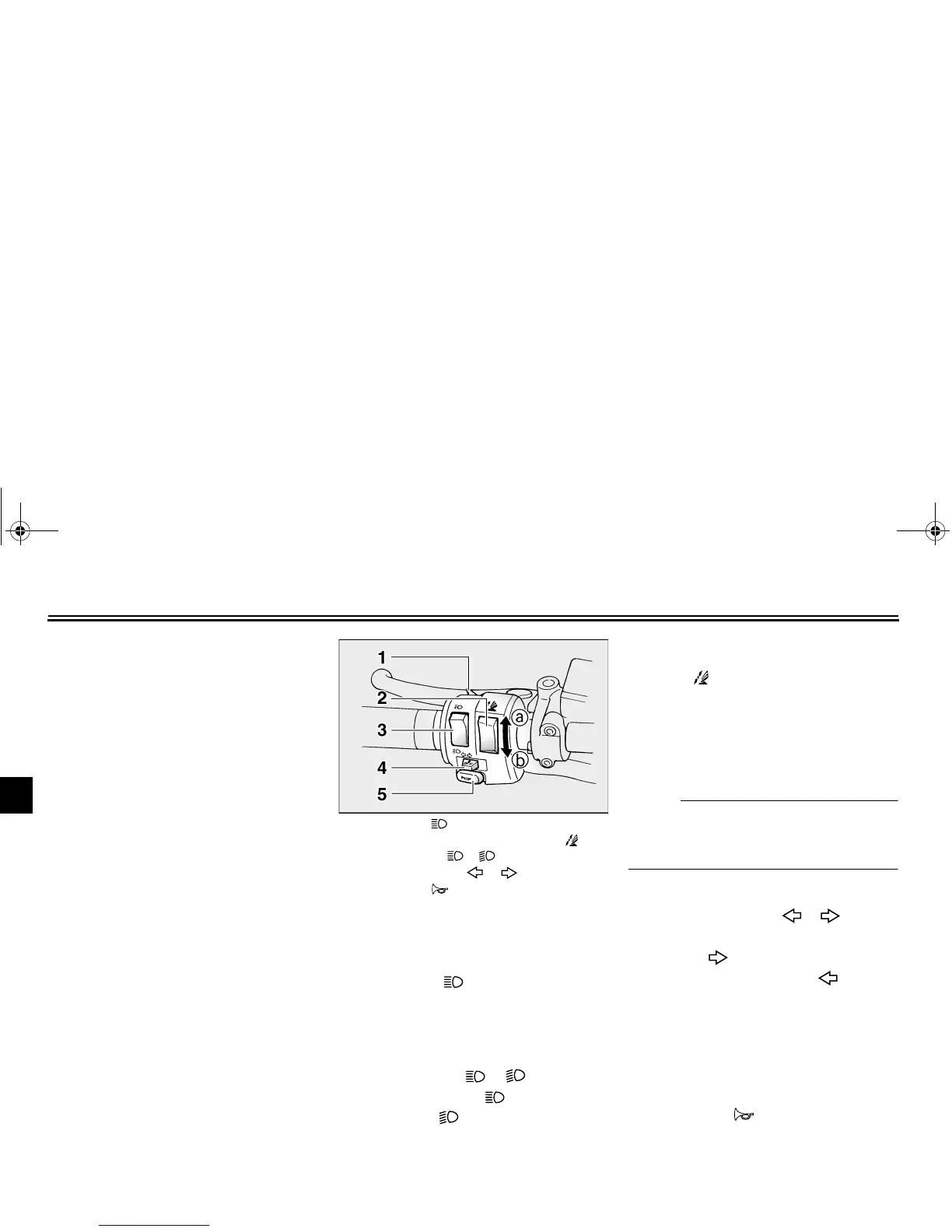

1. Pass switch “”
2. Windshield position adjusting switch “”
3. Dimmer switch “ / ”
4. Turn signal switch “ / ”
5. Horn switch “”
