PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EC000103
CAUTION:
_
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
_
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU04586
Replacing a headlight bulb
This motorcycle is equipped with
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.
1. Remove panel B (if replacing the
left headlight bulb) or panel C (if
replacing the right headlight bulb).
(See page 6-6 for panel removal
and installation procedures.)
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.

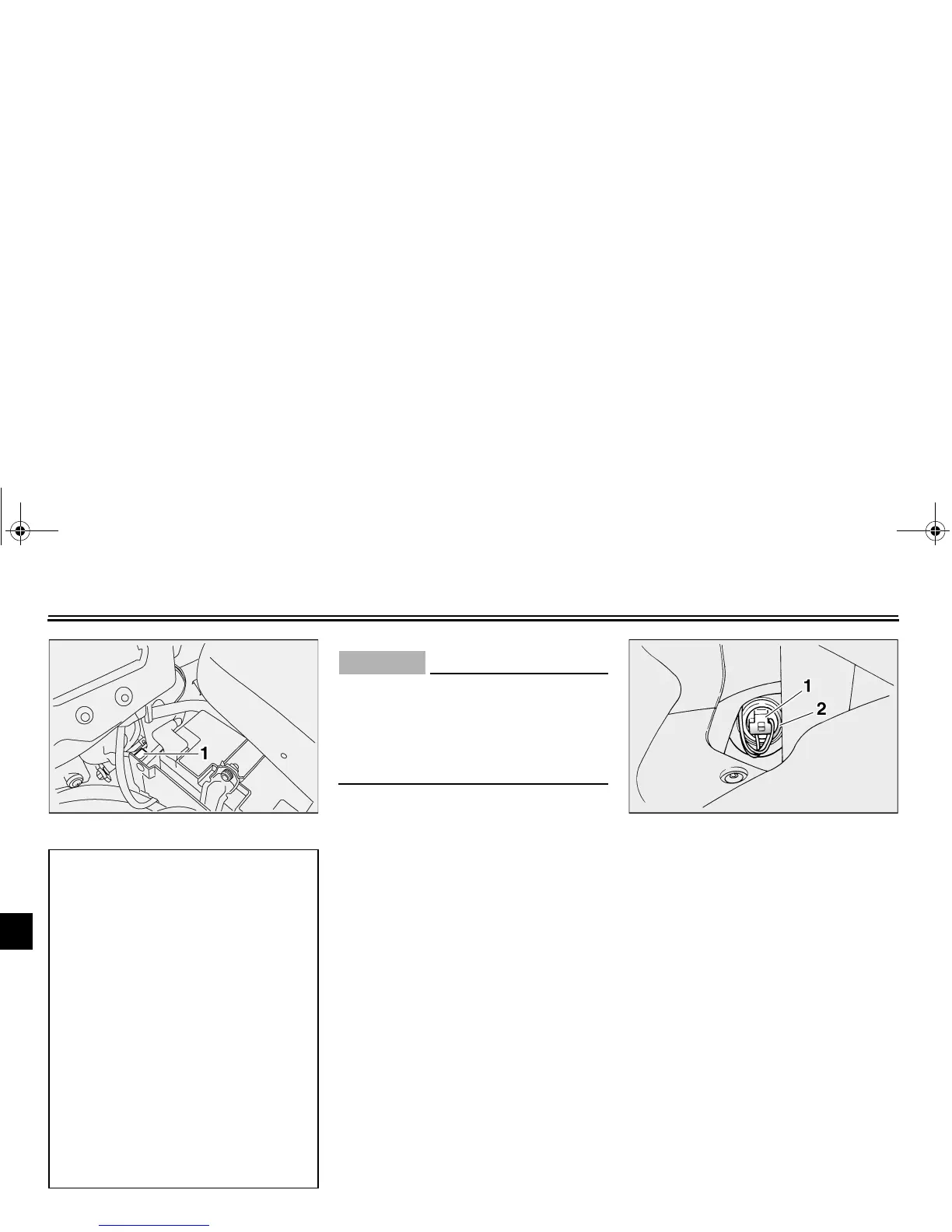

1. Main fuse
Specified fuses:
Main fuse: 50 A
Headlight fuse: 25 A
Signaling system fuse: 15 A
Ignition fuse: 10 A
Windshield motor fuse: 2 A
Radiator fan fuse: 15 A
Odometer, clock and
immobilizer system fuse
(backup fuse): 10 A
Hazard fuse: 7.5 A
Parking lighting fuse: 10 A
Electronic fuel injection
fuse: 15 A
Anti-lock Brake System
fuse
(For FJR1300A only): 7.5 A
1. Headlight coupler
2. Headlight bulb cover
