PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EC000102
CAUTION:
_
●
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
●
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is re-
quired. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
_
EAU05025
Replacing the fuses
The fuse box, which contains the fuses
for the individual circuits, is located un-
der panel A. Both the electronic fuel in-
jection fuse and the main fuse are
located under panel D. The main fuse
is located beside the battery. (See pag-
es 6-6 and 6-7 for panel removal and
installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.

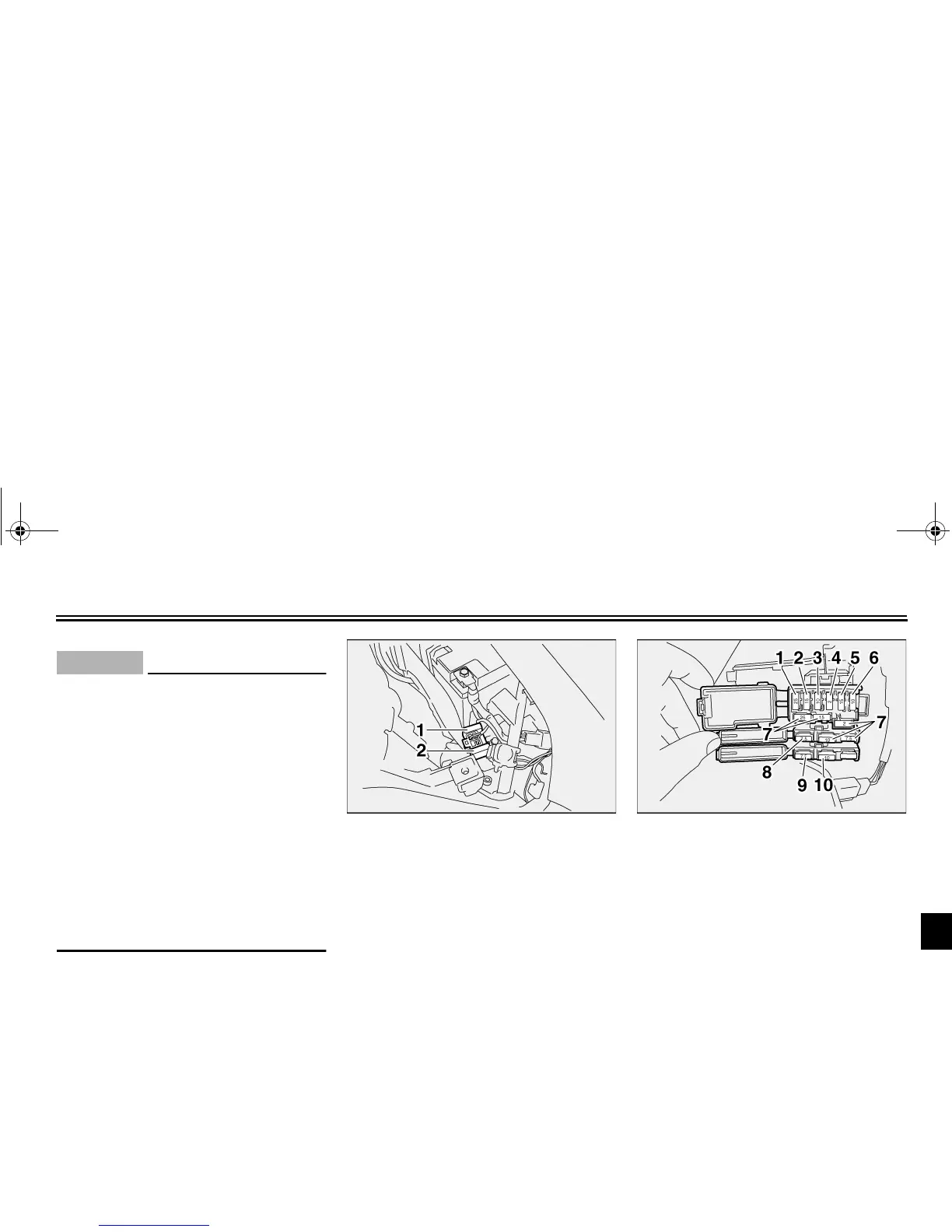

1. Electronic fuel injection fuse
2. Electronic fuel injection spare fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Windshield motor fuse
5. Radiator fan fuse
6. Odometer, clock and immobilizer system fuse
(backup fuse)
7. Spare fuse (× 5)
8. Hazard fuse
9. Anti-lock Brake System fuse
(For FJR1300A only)
10.Parking lighting fuse
