PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
EAU04067
Final gear oil
The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil must be
changed as follows at the intervals
specified in the periodic maintenance
and lubrication chart.
EW000066
WARNING
_
●
Make sure that no foreign mate-
rial enters the final gear case.
●
Make sure that no oil gets on
the tire or wheel.
_
To check the final gear oil level
1. Place the motorcycle on the cen-
terstand.
NOTE:
_
●
The final gear oil level must be
checked on a cold engine.
●
Make sure that the motorcycle is
positioned straight up when
checking the oil level. A slight tilt to
the side can result in a false read-
ing.
_
2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
_
The oil level should be at the brim of
the filler hole.
_
3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.
To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.

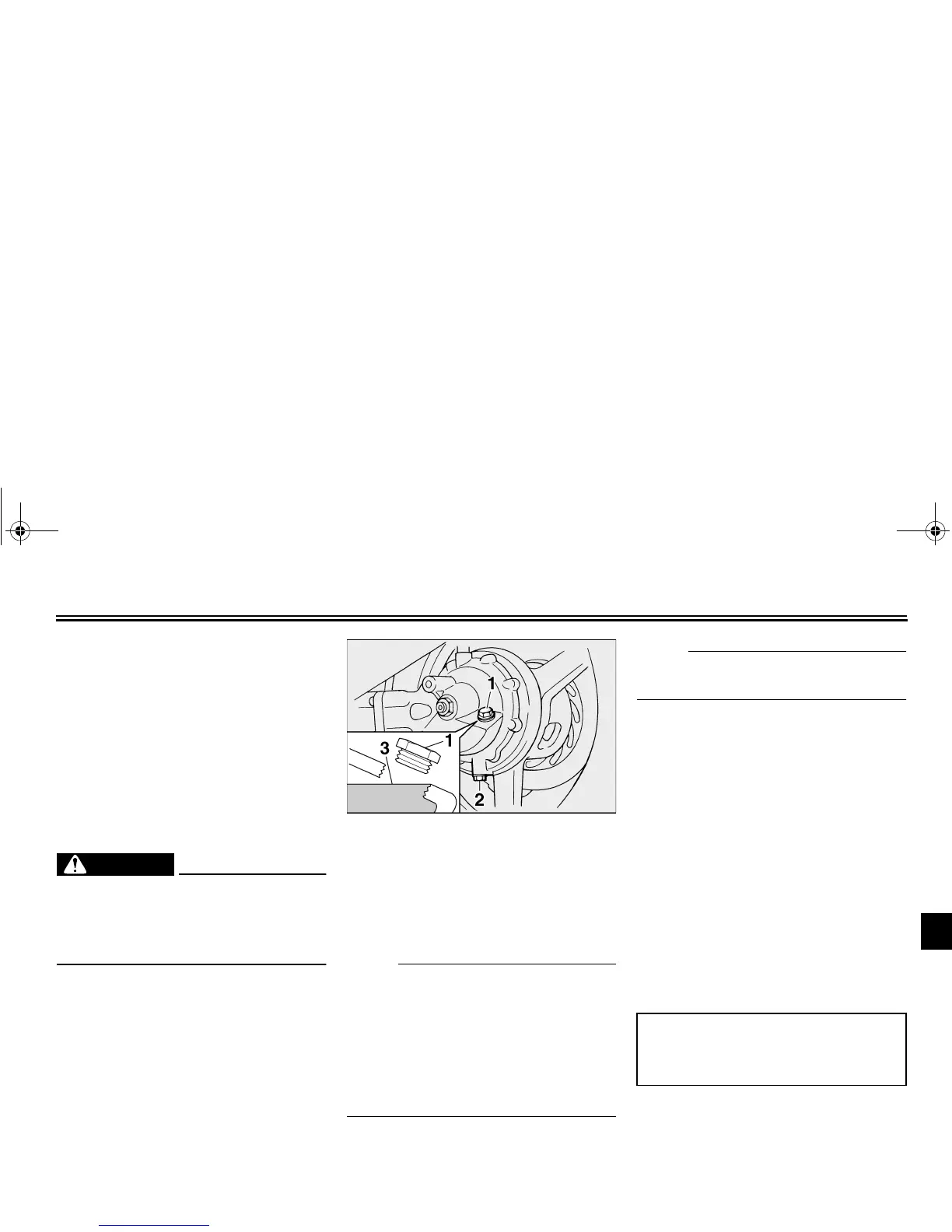

1. Final gear oil filler bolt
2. Final gear oil drain bolt
3. Correct oil level
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf)
U5JWE2.book Page 12 Wednesday, November 6, 2002 3:32 PM
