INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU04300
(Parking)
The steering is locked, the taillights and
auxiliary lights are on, and the hazard
light can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
ECA00043
CAUTION:
_
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
_
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights
“” and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU26871
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After
24 hours have passed, the indicator
light will stop flashing, however the im-
mobilizer system is still enabled.
_
This model is also equipped with a self-
diagnosis device for the immobilizer
system. If the immobilizer system is de-
fective, the indicator will start flashing
and the multi-function meter will display
an error code when the key is turned to
“ON”. (See “Self-diagnosis device” on
page 3-7 for details.)
_

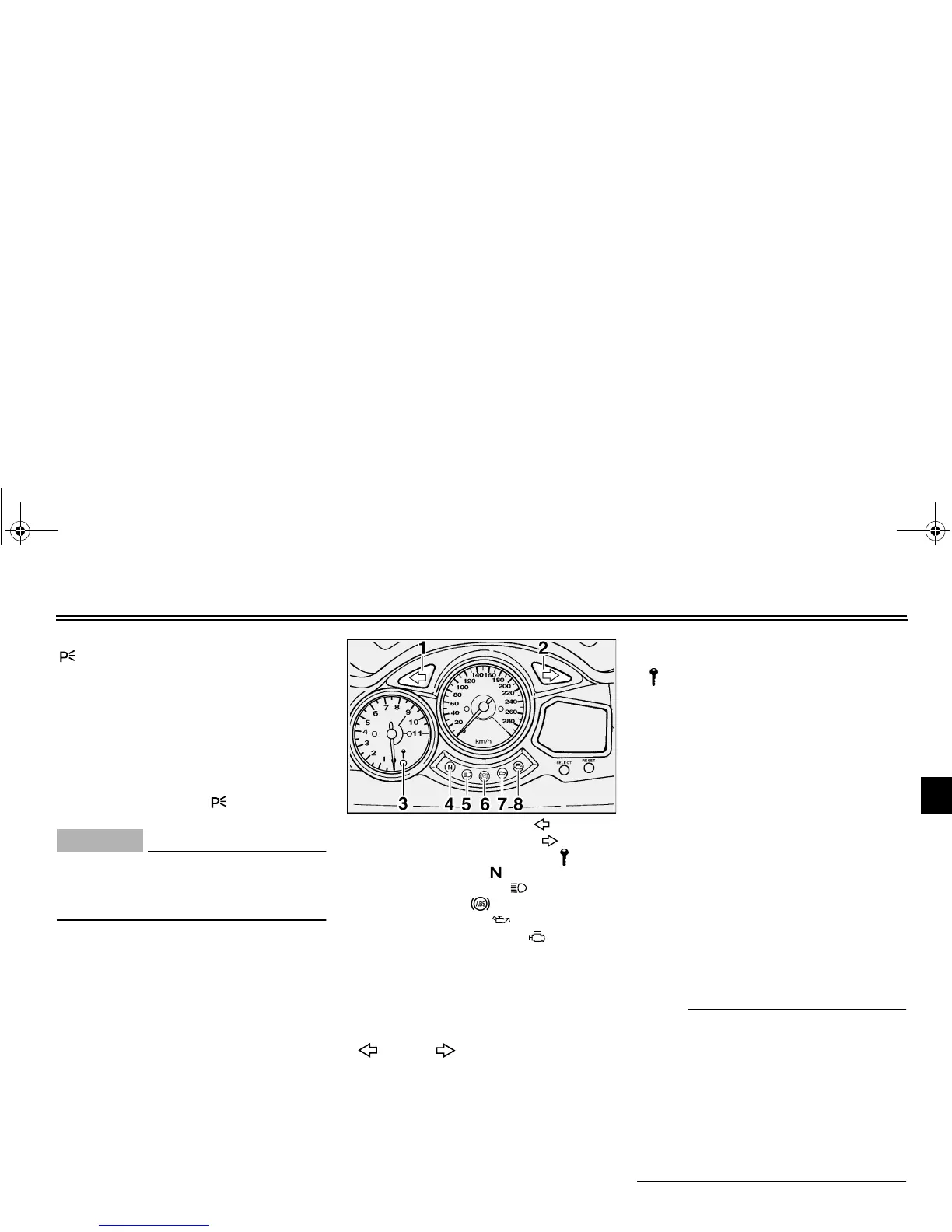

1. Left turn signal indicator light “ ”
2. Right turn signal indicator light “ ”
3. Immobilizer system indicator light “ ”
4. Neutral indicator light “ ”
5. High beam indicator light “ ”
6. ABS warning light “ ” (For FJR1300A only)
7. Oil level warning light “ ”
8. Engine trouble warning light “ ”
