REAR SHOCK ABSORBER ASSEMBLY
EASZ)l (IO

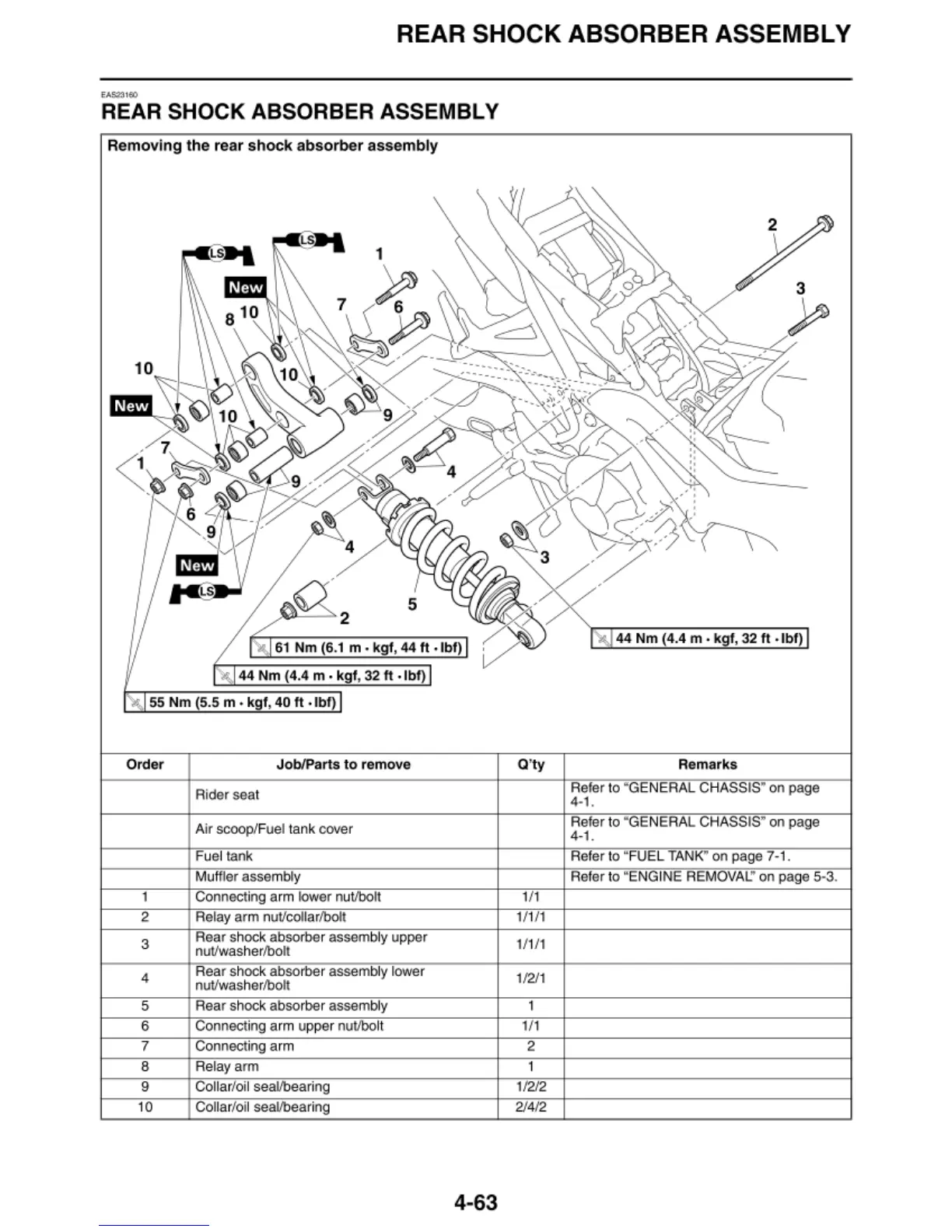

REAR SHOCK ABSORBER ASSEMBLY
Removing the rear shock absorber assembly
~ 61 Nm (6.1 m • kgf , 44 ft · lbf)
'\\ 44 Nm (4.4 m . kgf , 32 ft · lbf)
44 Nm (4.4 m · kgf , 32 ft· lbf)
55 Nm (5.5 m. kgf , 40 ft · lbf)
Order Job/Parts to remove Q' ty Re marks
Rider seat
Refer to "GENERAL
CHASs rs· on page
4·1.
A ir scoo p/ Fuel tank cover
Refer to "GEN
ER AL CHASSIS" on page
4- 1.
Fuel tank Re fer to "F UE L TANK· on page 7 -1 .
Muffler assembly
Re fer to '"E NGINE REMOVAL" on page 5·3.
1 Connecting arm lower nuVbolt 1/ 1
2 Relay arm nuVcollar/bolt 11 1 /1
3
Rear shock
abso rber assembly u pp er
nuVwasher
/b o lt
1/ 1 /1
4
Rear shock absorber assembly lower
nuVwasher/bolt
1/211
5
Rear shock abso r be r assembly 1
6
Connecting arm upper nuVbolt 1/ 1
7 Connecting arm
2
8
Relay arm
1
9
Co llar/oil seal/bearing 1/2/2
10 Collar/oil seal/b
ear ing
2/4/2
4-63
