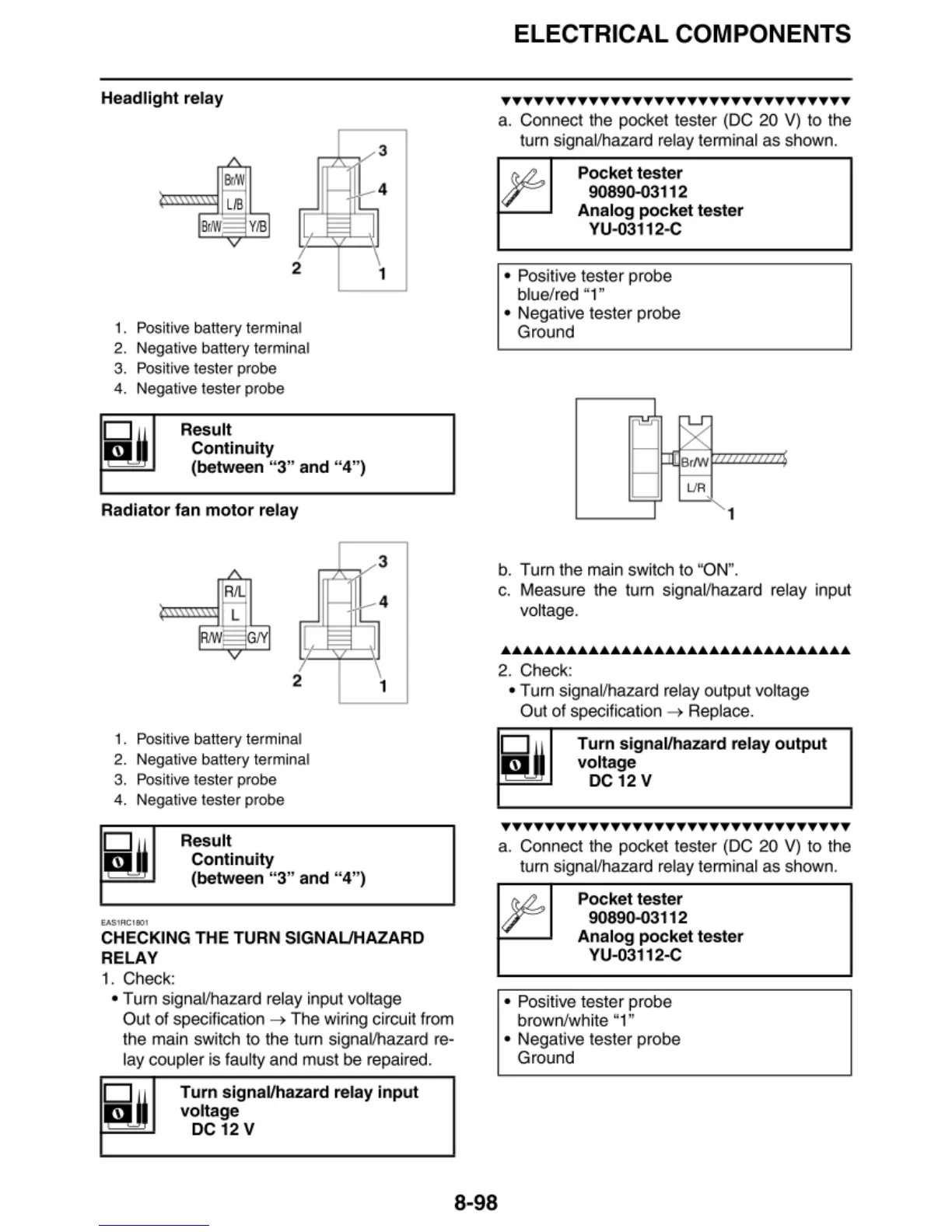

Headlight relay
,........,....._, ,,. 3
Bri\V
2
1. Pos itive battery terminal
2. Negative battery terminal
3.
Pos itive test er probe
4. Negative test
er probe
Result
Continuity
(between "3" and "4")
Radiator fan motor relay
-=-
2
1. Positive batte ry terminal
2. Negative battery terminal
3.
Pos itive test er probe
4. Negative test
er probe
Result
Continuity
:>..
~
.
f
(between "3" and "4")
EAS 1 RCl80 1
4
1
, 3
4
1
CHECKING THE TURN SIGNAUHAZARD
RELAY
1. Ch
ec k:
• Tum sign
aV hazard re l ay input voltage
Out of specification
--t The wiring ci rc ui t from
the ma
in switch to the tu rn signaVhazard re-
l
ay co upler is faulty and must be repaired.
Turn signaVhazard relay input
voltage
DC 12V
ELECTRICAL COMPONENTS
TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT
a. Connect the pocket tester (DC 20 V) to the
tum signal/hazard relay terminal
as shown.
Pocket tester
90890-03112
Analog pocket tester
VU-03112-C
• Positive tester probe
blue/red "1"
• Negative tester probe
Ground
UR
1
b. Tu rn the ma in sw itch to "ON".
c. Measure the tum signal/hazard
re l ay input
voltage .
••••••••••••••••••••••••••••••••
2. Check:
• Tum signal/hazard relay output voltage
Out
of specification --t Replace.
Turn signal/hazard relay output
voltage
DC 12V
TTYTTTYYTTTYTTTYYTTTYTTTYTTTYYTT
a. Connect th e pocket tester (DC 20 V) to the
tu
rn signal/hazard relay te rm inal as shown.
Pocket tester
90890-03112
Analog pocket tester
VU-03112-C
• Positive tester pr
ob e
brown
/w hite "1"
8-98
• Negative tester probe
Ground
