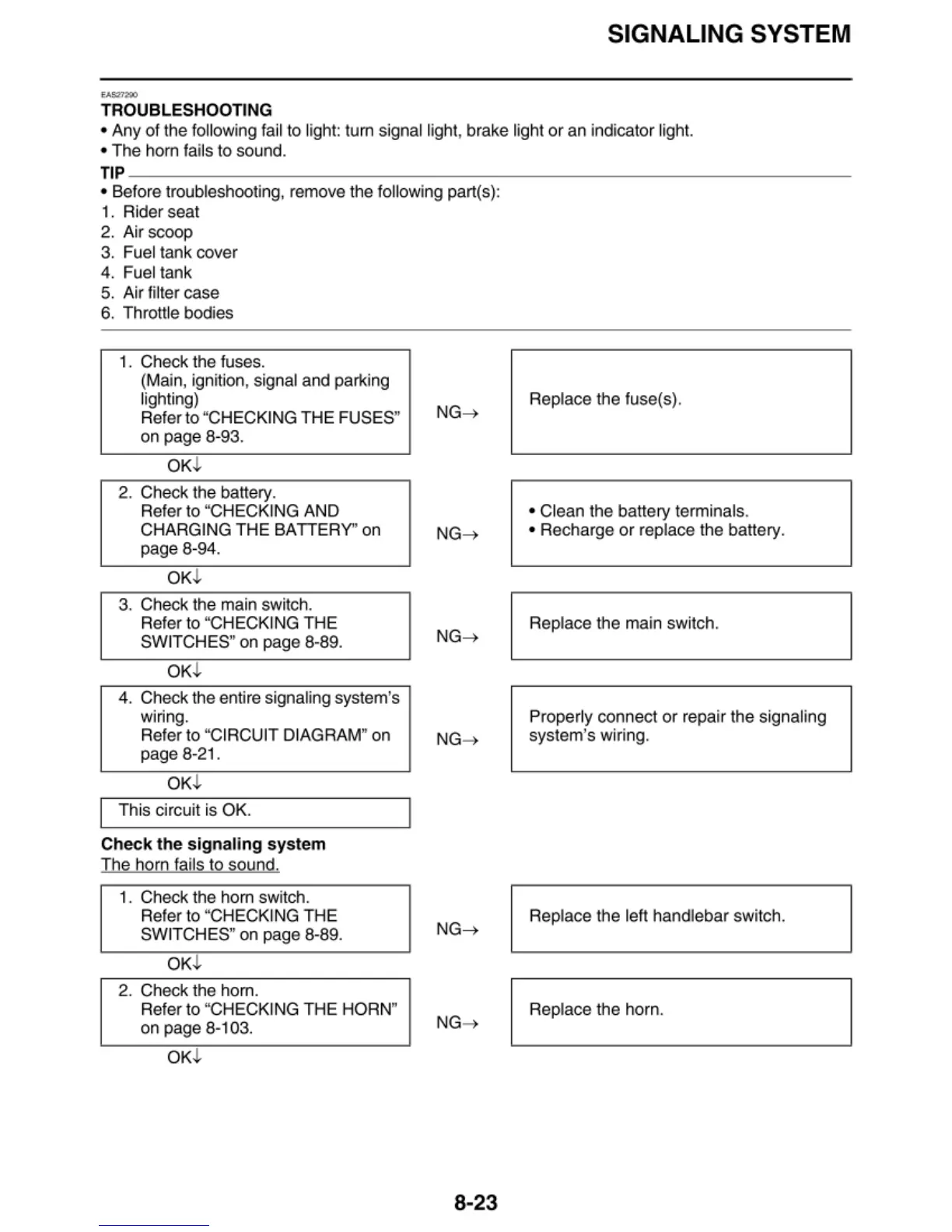

SIGNALING SYSTEM
TROUBLESHOOT IN G
• Any of the fo
ll owing fa il to ligh t: tu rn signal light, brake light or an indicator li ght.
• The horn fails
to sound.
TIP ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
• Before troubleshooting, remove the fo ll owing part(s):
1. Rider seat
2. Air scoop
3. Fuel tank cover
4. Fuel tank
5. Air filter case
6. Throttle bodies
1. Check the fuses.
(Main, ignition, signal and parking
li ghting)
Refer to "CHECKING THE FUSES"
on page 8-93.
OK J.
2. Check the battery.
Refer to "CHECKING AND
CHARGING THE
BATIERY " on
page
8-94.
OK J.
3. Check the main sw itc h.
Refer to "CHECKING THE
SWITCHES" on page
8-89.
OK J.
4. Check the enti re signaling system's
wiring.
Refer to "CIRCUIT DIAGRAM"
on
page 8-21.
OK J.
This circuit is OK.
Ch
eck th e signali ng system
The horn fails to so und.
1. Check the horn switch.
Refer to "CHECKING THE
SWITCHES" on page
8-89.
OK J.
2. Check the horn.
Refer to "CHECKING THE HORN"
on page 8-103.
OK J.
NG~
NG ~
NG~
8-23
Replace the fuse(s).
• Clean the battery
te rminals.
• Recharge
or replace the battery.
Replace the
ma in switch.
Properly connect or repair the signaling
system's wi
ri ng.
Replace the left handlebar switch.
Rep
la ce t he horn.
