EAs,24100

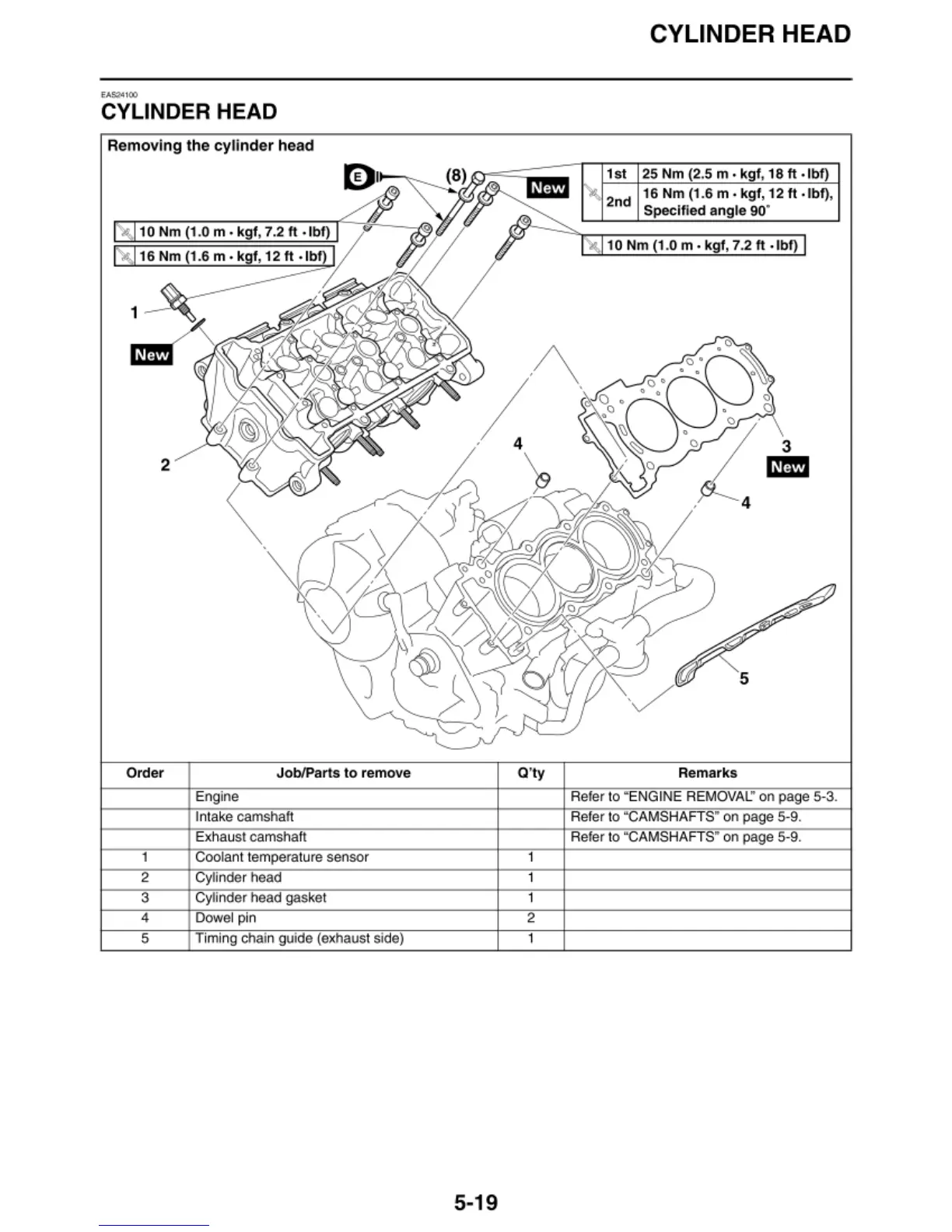

CYLINDER HEAD
Removing t he cy li nder head
"'ii. 1 O Nm (1 .0 m • kgf , 7.2 ft • lbl ~
16 Nm 1.6 m . kgl , 12 ft ·l bf
,.....,; r,.-,<
2
Order
Job/Parts
to remove
Engine
Intake camshaft
Exhaust camshaft
1
Coolant tempe ra tu re sensor
2 Cylinder head
3 Cylinder head gasket
4 Dowel pin
5
Timing chain guide (exhaust side)
Q'ty
1
1
1
2
1
5-19
CYLINDER HEAD
1st 25 Nm (2.5 m . kgf . 18 ft dbl )
2nd
16 Nm (1.6 m • kgl, 12 ft • lbf) ,
Specif ied a ng le 90•
"'ii. 10 Nm ( 1. 0 m • kgf , 7.2 ft - lbf)
Remarks
Refer to "ENGI NE RE MOVAL" on page 5-3.
Refer to "CAM
SH AFTS" on page 5-9.
Refer to "CAM
SH AFTS" on page 5-9.

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
