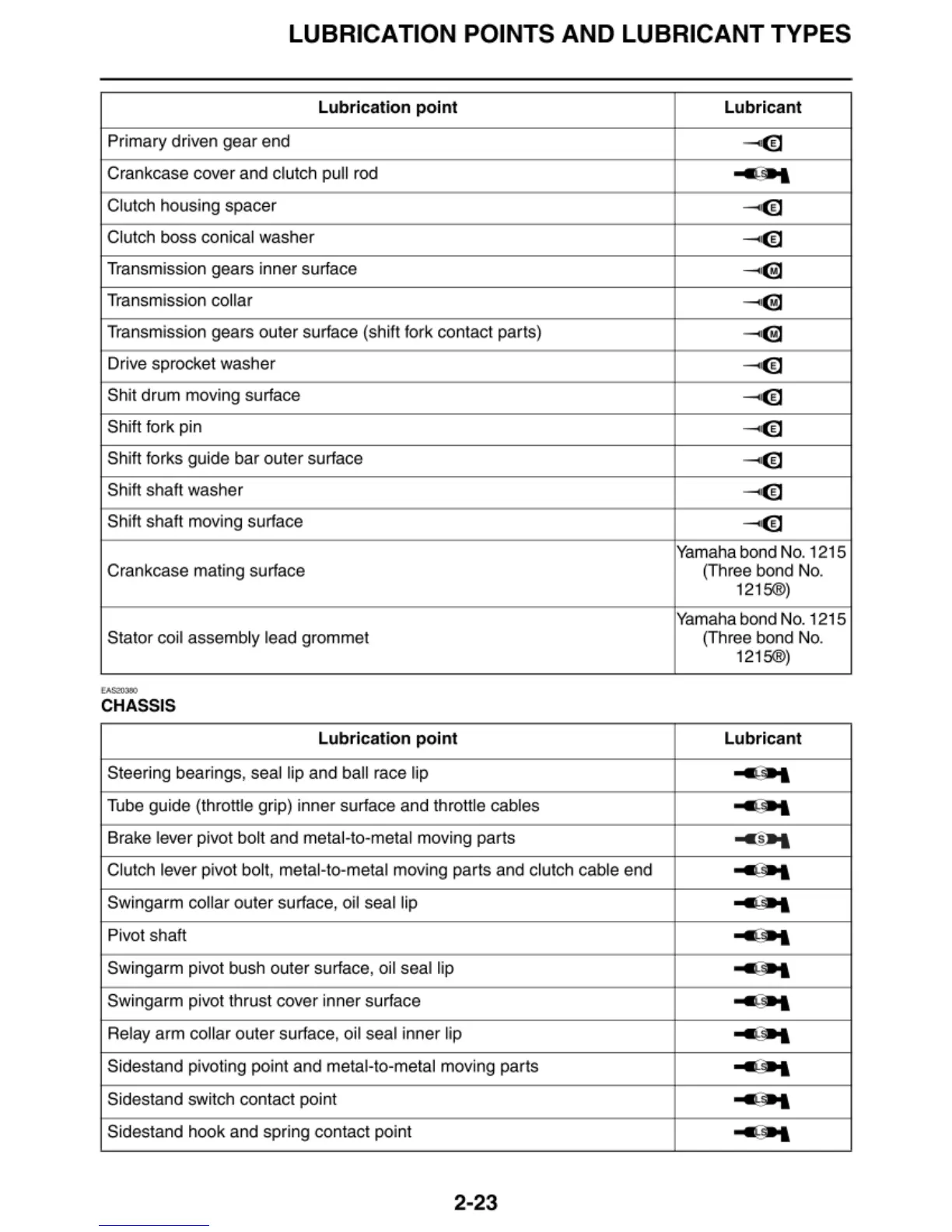

LUBRICATION POINTS AND LUBRICANT TYPES
Lubrication point
Lubricant
Primary driven gear end
~
Crankcase cover and clutch pull rod
O l
Clutch housing spacer
--€!
Clutch boss conical washer
--€!
Tra nsmission gears inner surface -< 1@
Tra nsmission collar -<I@
Transmission gears outer surface (shift fork contact parts)
-<1 @
Drive
sp rocket washer
--€!
Sh it drum moving surface
--€!
Sh ift fork pin
~
Shift forks guide bar outer surface
~
Shift shaft washer
~
Shift shaft moving surface
--€!
Yamaha bond No. 1 215
Crankcase mating surface (Three bond No.
1215®)
Yamaha bond No. 1
215
Stator co il assembly lea d grommet (T hree bond No.
1215®)
"'"'""
CHASSIS
Lubrication point Lub
ri cant
Steering bear i ngs , seal lip and ball race lip
o a
Tube gui de (throttle gr ip) in ner surface and throttle cables
o a
Brake lev er pivot bo lt and metal-to-metal mov ing parts
~
Clutch lever pivot bol t, metal- to -me ta l moving parts and clutch cable end
o a
Sw ingarm collar outer surface, oil seal lip
o a
Pivot shaft
O l
Swingarm pivot bush ou ter su rface, oil seal lip
o a
Swingarm pivot thrust cover in ner surface
o a
Relay arm collar outer surface, oil seal in ner lip
o a
Sidestand pivoting point and metal-to-metal mov ing parts
o a
Sidestand sw itch contact point
O l
Sidestand hook and spr ing contact point
o a
2-23

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
