Yamaha FZ-09 User Manual

,..,....

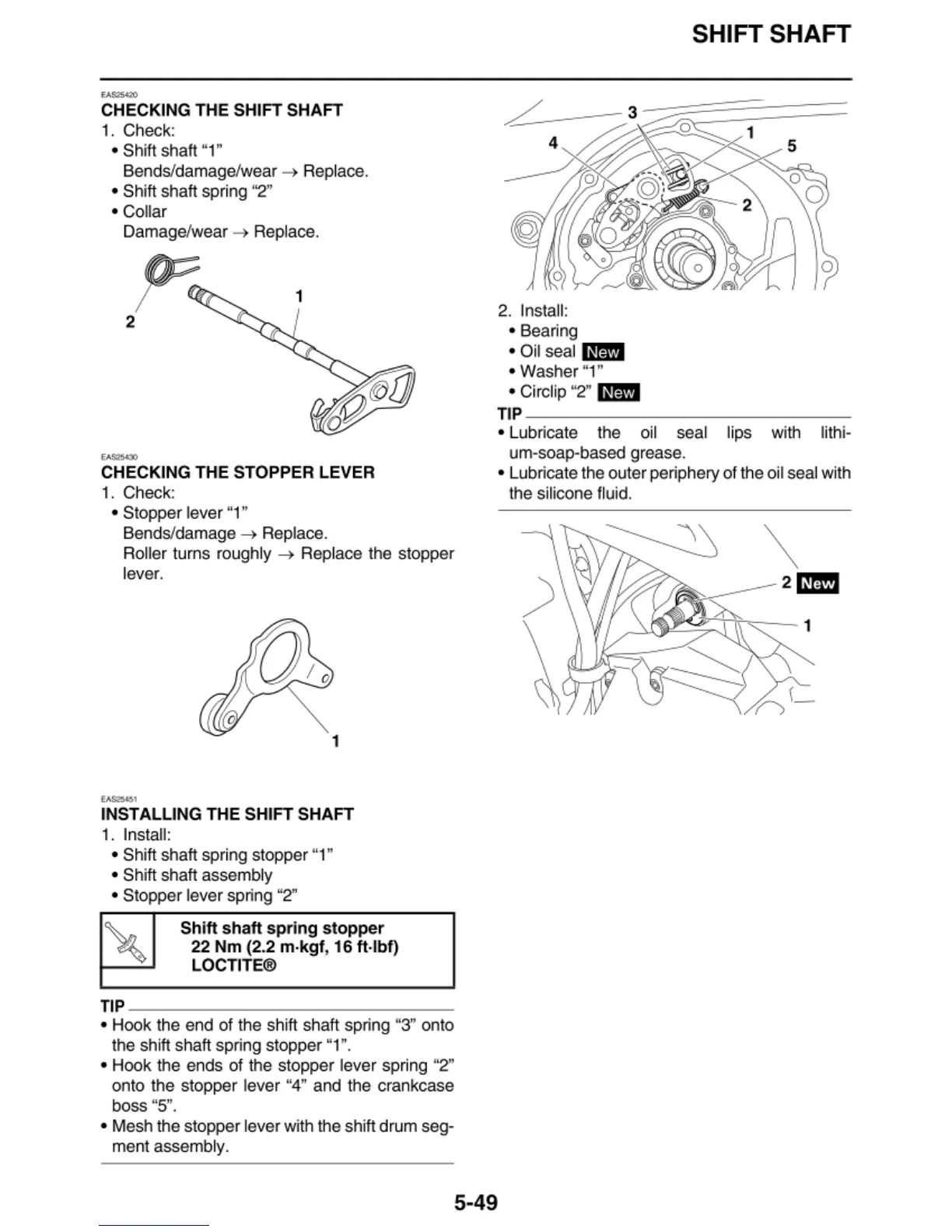

CHECKING THE SHIFT SHAFT
1. Check:
• Shift shaft "1"
Bends/damage/wear
4 Replace.
• Shi
ft shaft spring " 2"
• Co llar
Damage/wear
4 Replace.
, . .,..,.
CHECKING THE STOPPER LEVER
1. Check:
• Stopper lever
"1 "
Bends/damage
4 Replace.
Roller tu
rn s roughly 4 R ep lace the stopper
lever.
EA,$;2tlol.)1
INSTALLING THE SHIFT SHAFT
1. Install:
• Shi
ft shaft spring stopper "1"
• Shi
ft shaft assembly
• Stopper
le ver spring "2"
Shift shaft spring stopper
22 Nm (2.2 m·kgf,
16 ft·lbf)
LOCTITE®
TIP ~~~~~~~~~~~~~~~
• Hook the end of the shift sha ft sp ring "3" onto
the shift shaft spring stopper "1 ".
• Hook t
he en ds of the stopper lever sp ri ng "2"
onto the stopper lever "4" and t
he crankcase
boss "5".
• Mesh the stopper lever with the shift d
ru m seg-
ment assembly.
2. Insta ll :
• Bearing
• Oil seal lllf
111
l4"'t"I
• Washer "1"
SHIFT SHAFT
• Ci rc li p "2" lll@ll!@"'k"I
TIP ~~~~~~~~~~~~~~-
• Lub ri ca te the o il seal lips with lith i-
um-soap-based grease.
• Lub
ri ca te the ou ter periphery of the oil seal with
t
he s il icone flui d.
)
5-49

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
