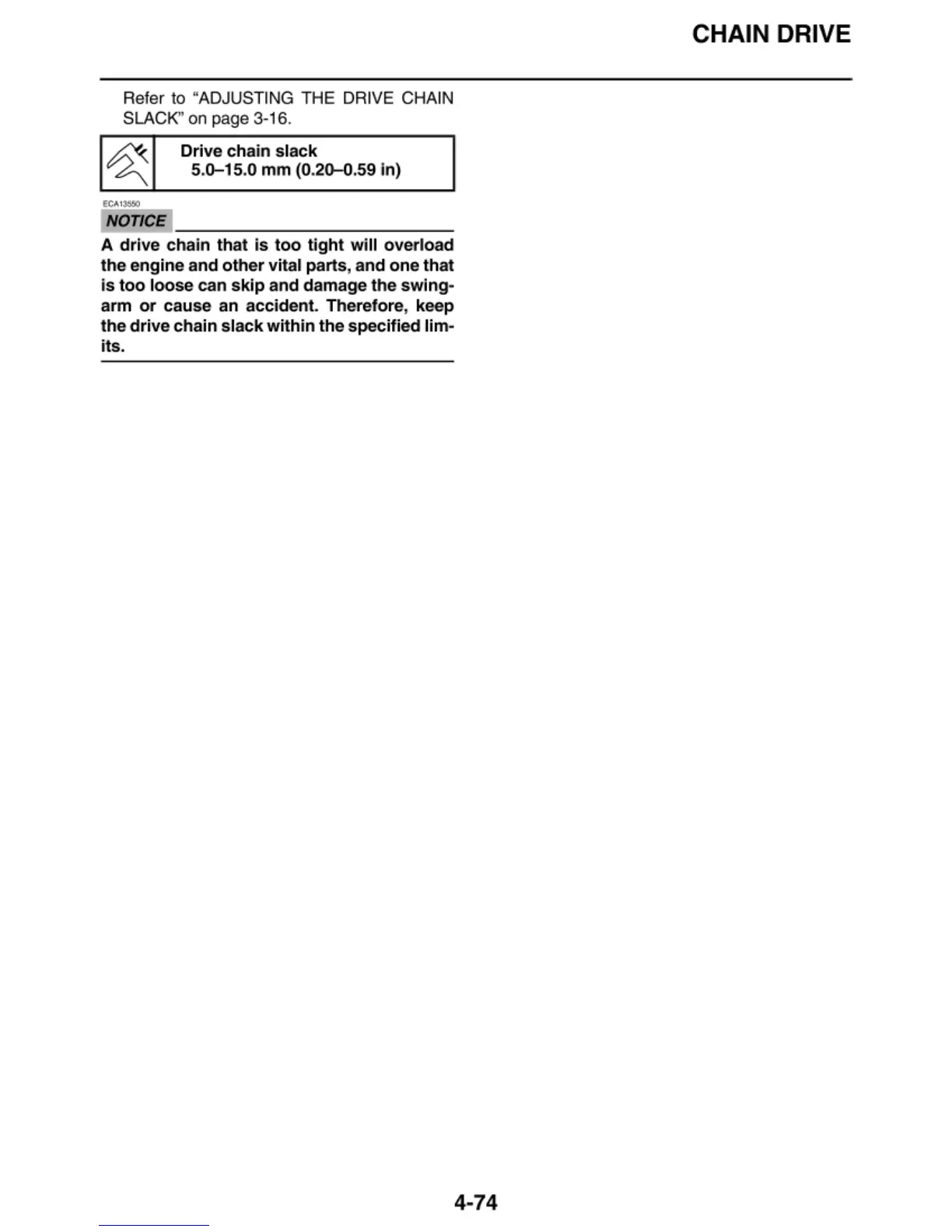

Yamaha FZ-09 User Manual

Refer to "ADJUSTING T HE DRIVE CHAIN
SLACK"
on page 3 -16.
Drive chain slack
5. 0-15 .0 mm (0. 20-0 .59 In)
NOTICE
~~~~~~~~~~~~-
A drive chain that is too tight will overload
the engine and
other vital parts, and one that
is too loose can skip and damage the swing -
arm
or cause an accident. Therefore, keep
the drive chain
slack within the specified lim-
its.
4-74
CHAIN DRIVE

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
