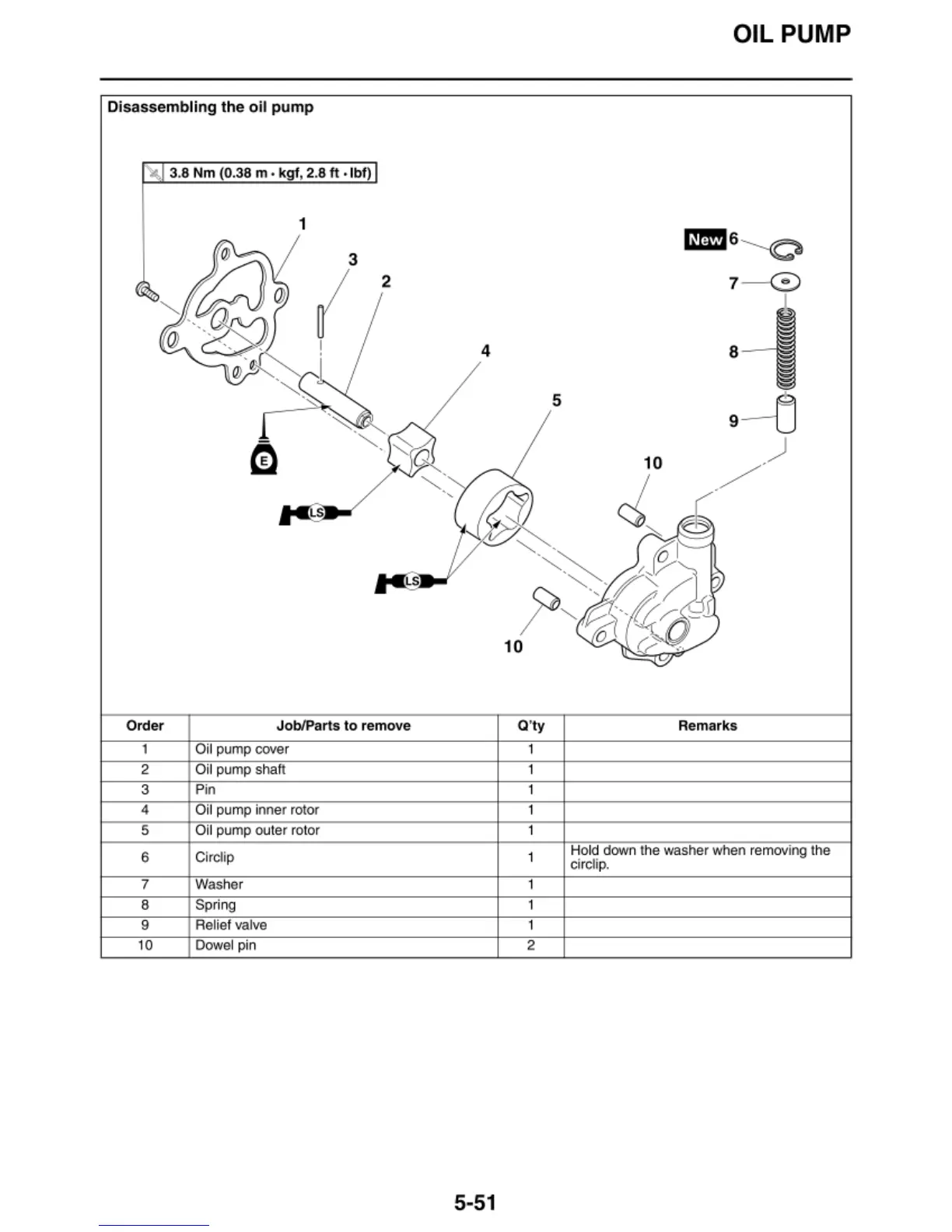

OIL PUMP
Disassembling the oil pump
'II. 3.8 Nm (0.38 m • kg! , 2.8 ft · lb!)
1
mm s --.._ o
" ~~
3
2
1 --0
I
OJ - - - ~
4
8
(/)' q)
5
9 -{j
'
~ .
m
"-
~ )
Q
'
_/ ·
"
.,
Order Job/Parts to remove Q'ty Remarks
1 Oil pump cover
,
2
Oil pump shaft 1
3
Pin 1
4 Oil pump inner rotor 1
5
Oil pump outer rotor
1
6 Circl ip 1
Hold down the washer when remov in g the
ci rcl ip .
7 Washer 1
8
Spring
,
9
Rel ief valve
,
10 Dowel pin
2
5-51

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
