Yamaha FZ-09 User Manual

Tool name/Tool No.
Flywheel puller
90890-01362
Heavy duty puller
YU-33270-B
Steering nut wrench
90890-01403
Exhaust flange nut wrench
YU-A9472
Damper rod holder
90890-01423
Damping rod holder
YM-01423
Oil filter wrench
90890-01426
YU-38411
Rod
ho l de r
90890-01434
Damper rod holder double ended
YM-01434
Rod puller attachment
(M 10)
90890-01436
Universal damping rod bleeding tool set
YM-A8703
11
90890 -01 4 36
YM·A8703
1-19
Illu str at i on
000

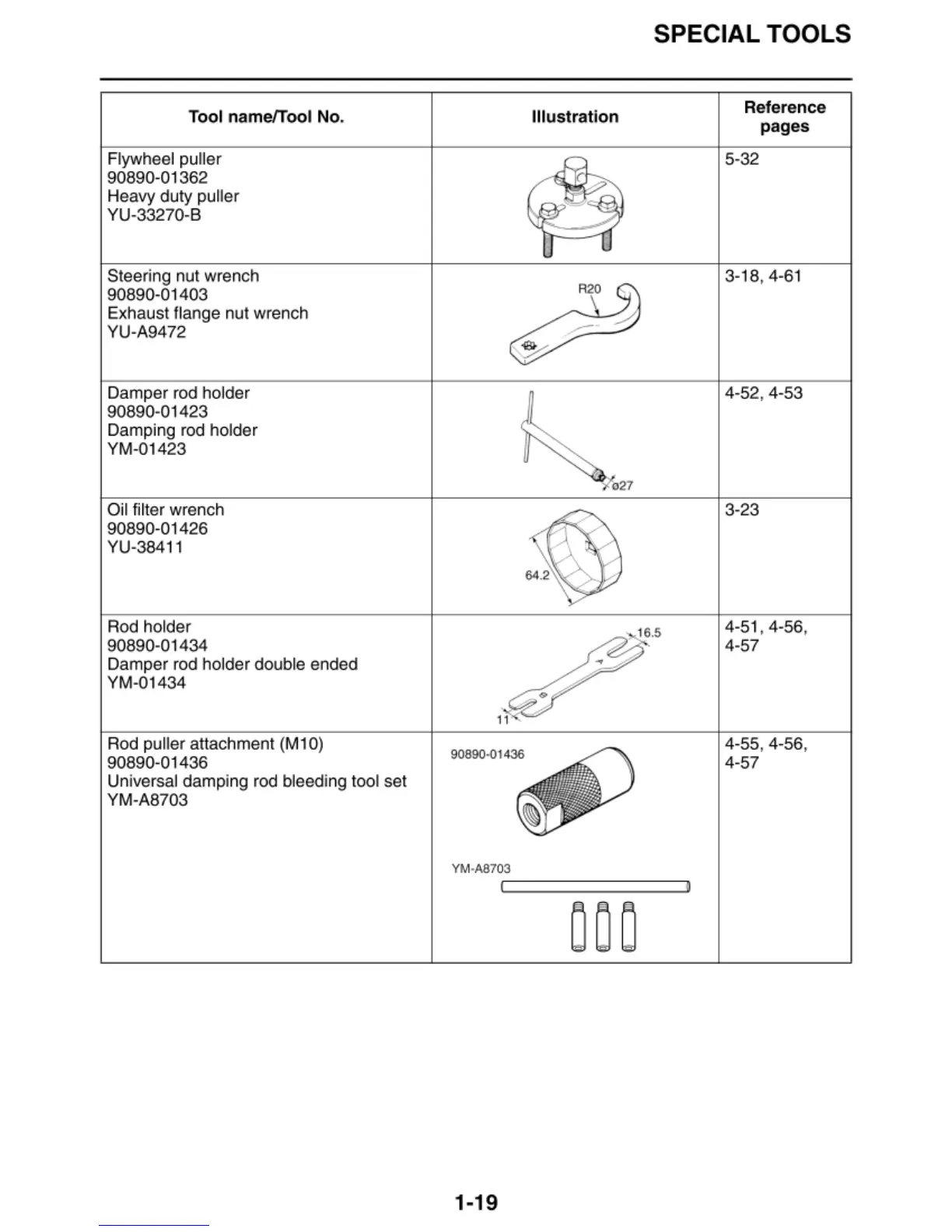

SPECIAL TOOLS
Referen ce
pa ge s
5-32
3-18, 4-
61
4- 52 4- 53
'
3-23
4-
51 , 4- 56 ,
4-57
4-
55 , 4- 56 ,
4-
57

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
