Yamaha FZ-09 User Manual

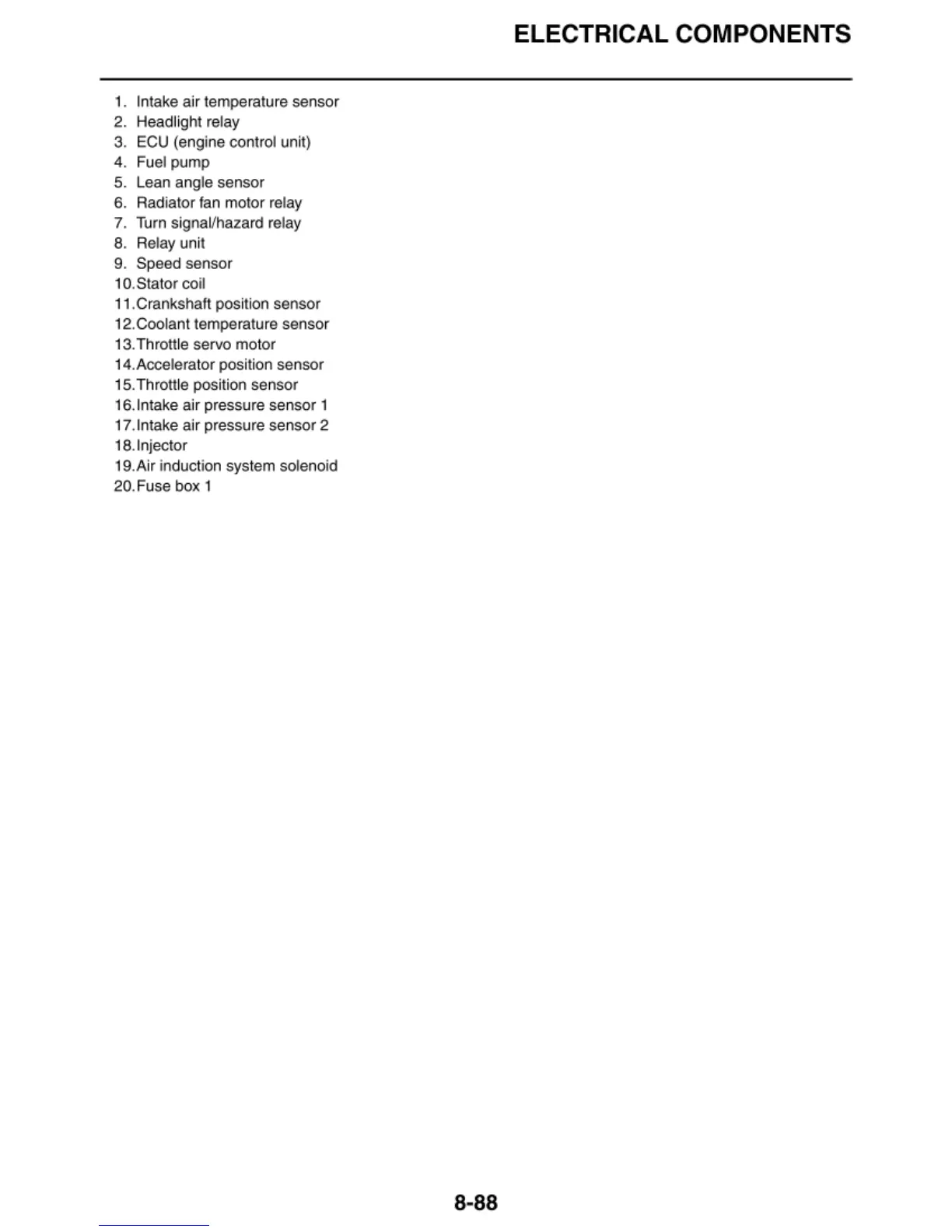

1. Intake air tempe ra ture sensor
2. Headlight relay
3. ECU (engine control unit)
4. Fuel pump
5. Lean angle sensor
6. Radiator fan motor relay
7. Turn signal/hazard rel ay
8. Relay unit
9. Sp ee d sensor
10.Stator
co il
1
1. Crankshaft positi on sensor
12.Cootant temperature sensor
13. Throttle servo
mo t or
14.Acceterat or position sensor
15. Throttle positi
on sensor
16. Intake air pressure sensor 1
17.lntake air pressure sensor 2
18. Injector
19.Air
in duction syst em so lenoid
20.Fuse box 1
ELECTRICAL COMPONENTS
8-88
