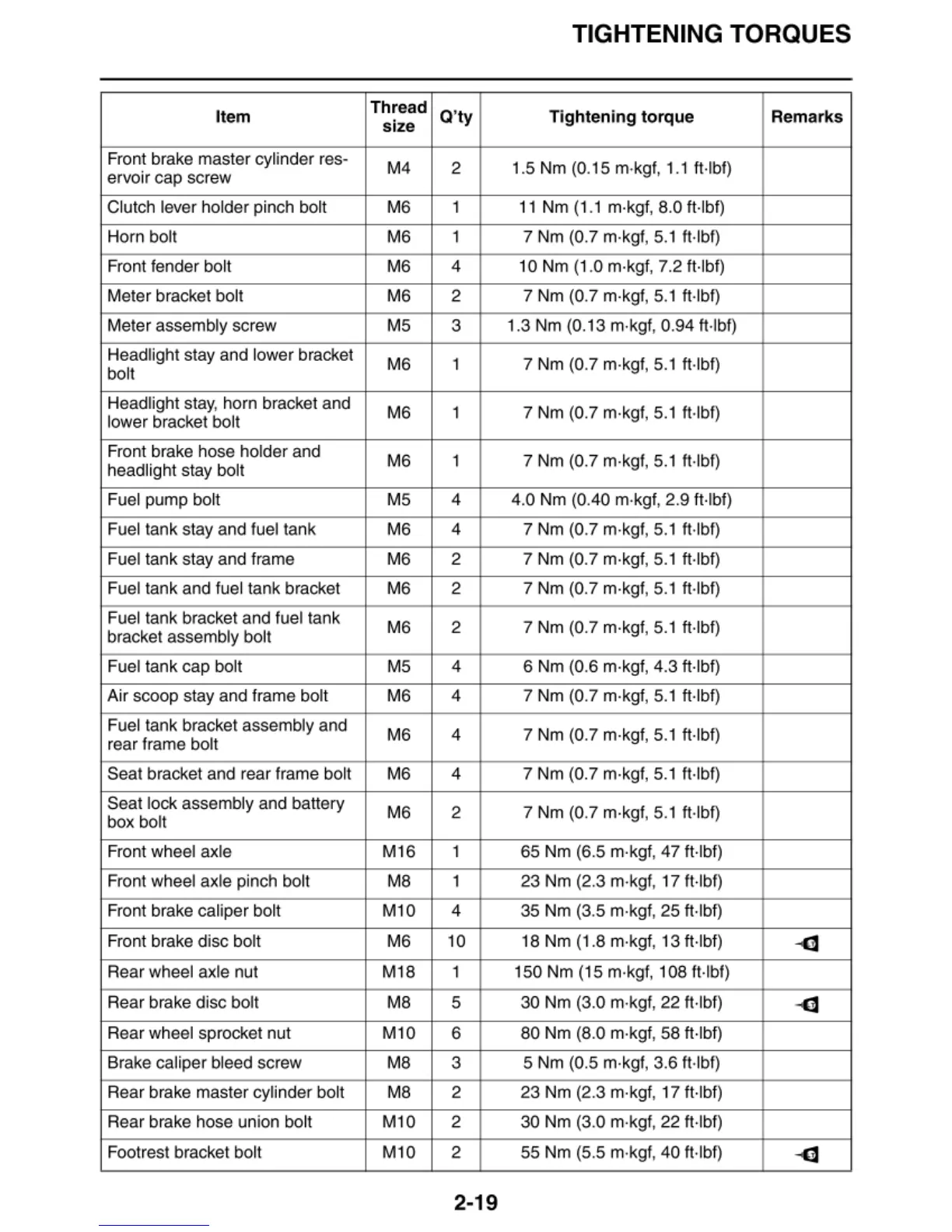

TIGHTENING TORQUES
Item
Thread
Q' ty Tightening torque Remarks
size
Front brake master cylinder res-
M4 2 1.5
Nm (0.15 m-kgf, 1.1 ft-lbf)
ervoir cap screw
Clutch lever holder pinch
bo lt
M6
1
11 Nm (1.1 m -k gf, 8.0 ft-l bf )
Ho rn bolt M6 1 7 Nm (0.7 m -k gf, 5.1 ft ·l bf)
Front fender bolt M6 4 10
Nm (1.0 m -k gf, 7.2 ft·lbf)
Meter bracket bolt M6 2 7 Nm (0.7 m·kgf,
5.1 fl·lbf)
Met
er assembly screw M5
3
1.3 Nm (0.13 m·kgf, 0.94 fl·lbf)
Headlight stay and lower bracket
M6 1 7 Nm (0.7 m·kgf,
5.1 fl·lbf)
bolt
Headlight stay, horn bracket and
M6 1 7 Nm (0.7 m
-k gf, 5.1 ft- lbf)
lower bracket bolt
Front brake hose hol
der and
M6 1 7 Nm (0.7 m-kg
f, 5.1 ft·lbf)
headlight stay bolt
Fuel pump
bo lt
M5 4
4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
Fuel tank stay and fuel tank M6 4 7 Nm (0.7 m
-k gf, 5.1 ft- lbf)
Fuel tank stay and
fr ame
M6
2 7 Nm (0.7 m·kg f, 5.1 fl·lbf)
Fuel tank and fuel t
ank bracket M6 2 7 Nm (0.7 m·kgf, 5.1 fl·lbf)
Fuel tank bracket and fuel tank
M6 2 7 Nm (0.7 m·kg
f, 5.1 fl·lbf)
brack
et assembly bolt
Fuel tank
cap bolt MS 4 6 Nm (0.6 m·kgf, 4.3 fl·lbf)
Air scoop st
ay and frame bolt M6
4
7 Nm (0.7 m ·k gf, 5.1 fl·lbf)
Fuel tank brack
et assembly and
M6 4 7 Nm (0.7 m·kgf,
5.1 fl·lbf)
rear frame bolt
Seat bracket and rear frame bolt M6 4 7 Nm (0.7 m·kgf,
5.1 fl·lbf)
Seat lock assembly and battery
M6 2 7 Nm (0.7 m·kgf,
5.1 fl·lbf)
box bolt
Front wheel
ax le
M16 1 65
Nm (6.5 m·kgf, 47 ft·l bf )
Front wheel axle pinch
bo lt MS 1 23 Nm (2.3 m-kgf, 17 fl·lbf)
Front brake caliper
bo lt M10 4 35 Nm (3.5 m·kgf, 25 fl·lbf)
Front brake disc bolt M6 10 1 S
Nm (1.8 m·kgf, 13 fl·l bf )
-<ii
Rear wheel axle nut M1S 1 150 Nm (1 5 m-kgf, 10S ft- lbf)
Rear brake disc bolt
MS
5
30
Nm (3.0 m·kgf, 22 fl·l bf )
-<ii
Rear wheel sp rocket nut
M10 6 80
Nm (S.O m·kgf, 58 fl·lbf)
Brake caliper bleed screw
MS
3
5 Nm (0.5 m
-k gf, 3.6 ft- lbf)
Rear brake master cylinder bolt
MS
2
23 Nm (2.3 m·kgf, 17 ft·l
bf )
Rear brake hose union bolt M10 2 30
Nm (3.0 m·kg f, 22 fl·lbf)
Footrest bracket
bo lt M10 2 55 Nm (5.5 m·kg f, 40 ft ·l bf)
-<ii
2-19

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
