Yamaha FZ-09 User Manual

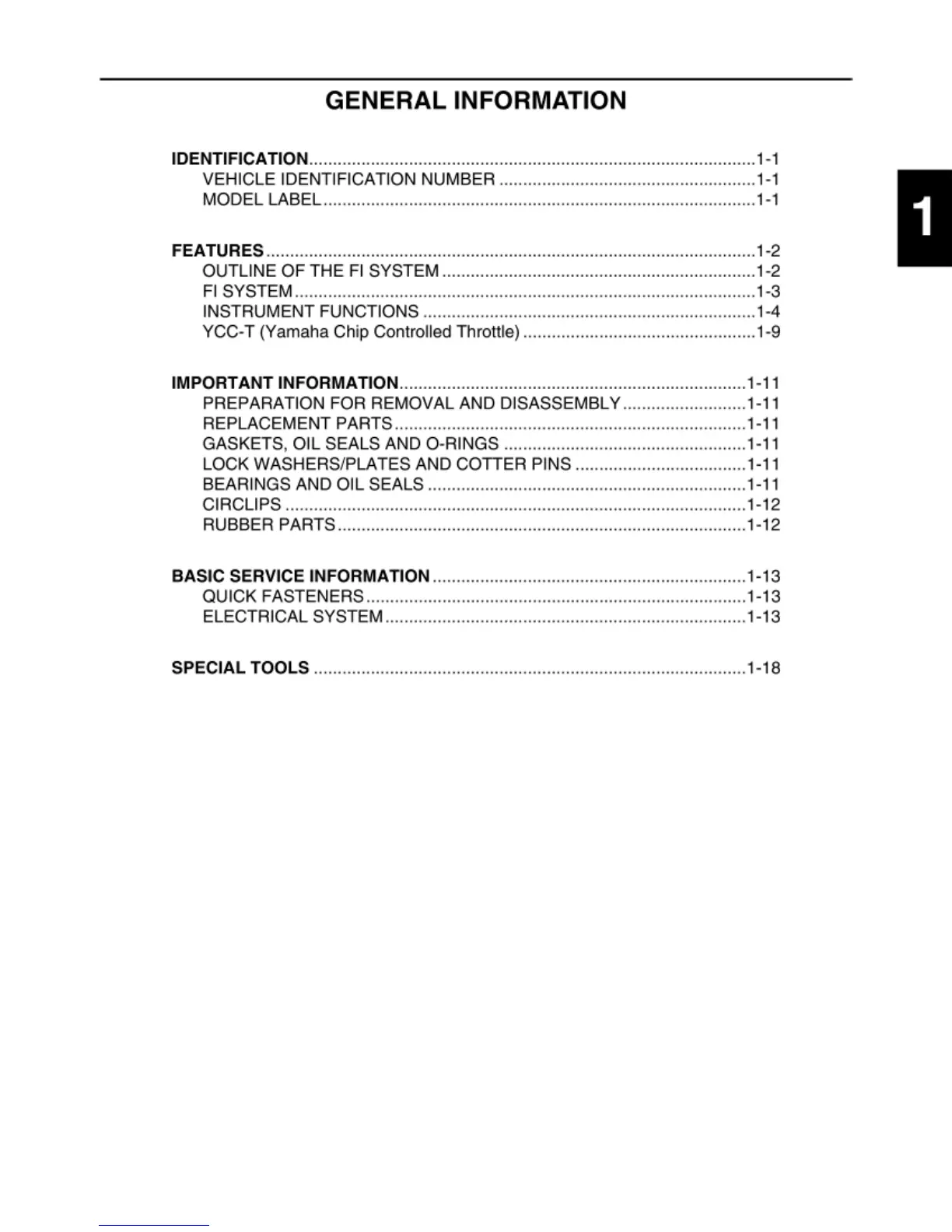

GENERAL INFORMATION
IDENTIFICATION ........................................................ .. ...... .. ............................ 1-1
VEHICLE IDENTIFICATION NUMBER ................
.. ...... .. ............................ 1-1
MODE L LABEL ............................................. .. ...... .. ...... .. ............... .. ........... 1-1
FEATURES ....................
.. ................. .. ........................................................ .. .... 1-2
OUTLINE OF THE Fl SYSTEM .................................................................. 1-2
Fl SYSTEM ........................................................... .. ...... .. ............... .. ........... 1-3
INSTRUMENT FUNCTIONS ................................
.. ....................... .. ........... 1-4
YCC-T (Yamaha
Ch ip Con tr olled Throttle) ................... .. ...... .. ...... .. ............ 1-9
IMPORTANT
INFORMAT ION ......................................................................... 1-11
PREPARATION FOR REMOVAL AND DISASSEMBLY ....... .. ...... .. ......... 1-11
REPLACEMENT PARTS ............................................................... .. ......... 1-11
G ASKE TS, 01 L SEALS AND 0 -RINGS ....................... .. ....... .. ...... .. ......... 1·11
LOCK WASHERS/PLATES AND COTTER PINS ........ .. ..... .. ........ ........ 1-11
BEAR I NG S AND 01 L SE ALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .. . . . . . .. . . . . . . . 1 -11
CIRCLIPS .................................... .. ............... .. ...... .. ...... .. ............... .. ......... 1-12
RUBBER PARTS ................. .. ...... .. ............... .. ...... .. ...... .. ............... .. ......... 1-12
BASIC SERVICE INFORMATION ........ ..... ...... .. ..... .. ...... ......... ...... .. ....... 1-13
QUICK FASTENERS ....................... .. ..... .. ...... ........ .. ..... .. ............ .... 1-13
ELECTRICAL SYSTEM ....... .. ..... .. ............... .. ..... .. ...... ........ .. ..... .. ....... 1-13
SPEC IAL TOOLS .......... .. .. .. ...... .. ...... .. ............... .. ...... .. ...... .. ............... .. ......... 1-18

Yamaha FZ-09 Specifications

General

Bore x Stroke	78.0mm x 59.1mm
Compression Ratio	11.5:1
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Seat Height	32.1 in
Wheelbase	56.7 in
Fuel Economy	44 mpg
Wet Weight	414 lb
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	6-speed
Front Suspension	Inverted fork, 5.4-in travel
Rear Suspension	Single shock, 5.1-in travel
Front Brakes	Dual hydraulic disc, 298 mm
Rear Brakes	Hydraulic disc, 245 mm
Rake (Caster Angle)	25°
Horsepower	115 hp @ 10, 000 rpm
