MOX6/MOX8 Owner’s Manual
Quick Guide
36

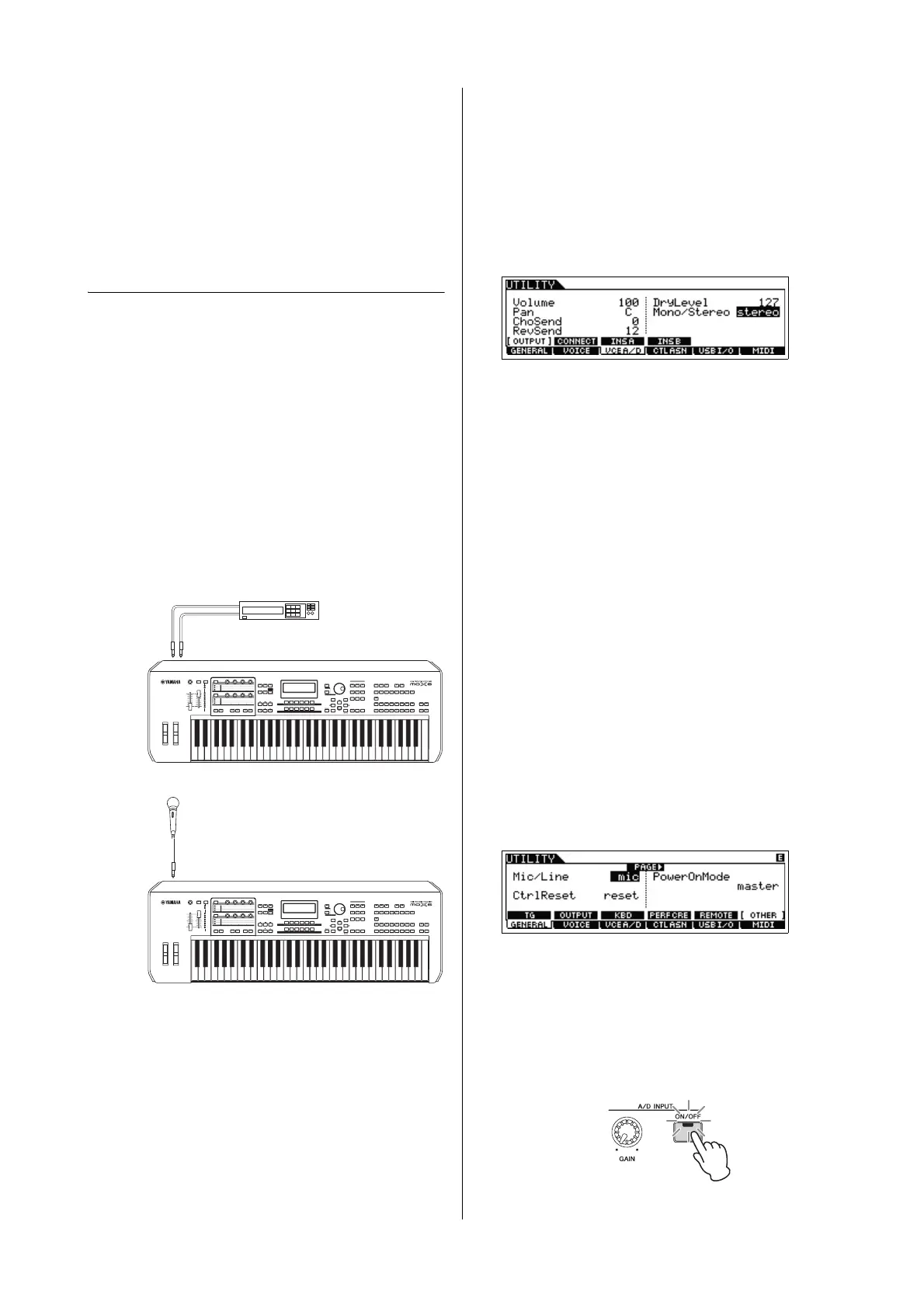

Connecting a microphone
or audio equipment
Playing the keyboard along with
the sound input from the A/D
INPUT [L]/[R] jacks
You can have the A/D input sound—such as your voice
through a microphone, a guitar, bass, or CD player—assigned
as an Audio Input Part. Various parameters such as volume,
pan, and effect can be set to this Part and the sound is output
together with the sound of your keyboard performance. In
these example instructions, you’ll learn how to use the A/D
input sound in the Voice mode.
1 Make sure to turn off the power of this instrument
and set the A/D INPUT [GAIN] knob to the minimum.
2 Connect the audio equipment or the microphone
to the A/D INPUT [L]/[R] jack on the rear panel.
NOTE A standard dynamic microphone is recommended. (This
instrument does not support phantom-powered condenser
microphones.)
3 Turn on the connected audio equipment, then turn
on the MOX6/MOX8.
4 Press the [VOICE] button to enter the Voice Play
mode.
5 Press [UTILITY]  [F3] VCE A/D  [SF1] OUTPUT,
then set the “Mono/Stereo” parameter.
This parameter determines the signal configuration for the
audio signal via the A/D INPUT [L]/[R] jacks, or how the signal
or signals are routed (stereo or mono).
When connecting the audio device as shown in step 2, set
this parameter to “stereo” or “LRMono.” When connecting
the microphone as shown in step 2, set this parameter to
“LMono.”
If necessary, set the other parameters.
NOTE For details about the parameters including Mono/Stereo,
see the “Reference Manual” PDF document.
NOTE The above parameter settings including Mono/Stereo are
applied to the entire Voice mode. If necessary, press the
[STORE] button to store these with the Utility settings.
NOTE The above parameter settings including Mono/Stereo differ
depending on the selected mode.
NOTE For the Performance mode, set the above parameters on the
display called up via [PERFORM]
 [EDIT]  [COMMON]
 [F5] A/D IN  [SF1] OUTPUT. The settings will be stored
for each Performance.
For the Song/Pattern mode, set this parameter on the display
called up via [SONG] or [PATTERN]
 [MIXING]  [EDIT]
 [COMMON]  [F5] A/D IN  [SF1] OUTPUT. The settings
will be stored for each Song/Pattern.
6 Press [UTILITY]  [F1] GENERAL  [SF6] OTHER,
then set the “Mic/Line” parameter according to
the equipment connected to the A/D INPUT [L]/[R]
jacks.
When connecting equipment of low output level (such as a
microphone, guitar, bass), set this parameter to “mic.” When
connecting equipment of high output level (such as a
synthesizer keyboard, CD player), set this parameter to “line.”
NOTE This setting is available for all modes. If necessary, press
the [STORE] button to store this with the Utility settings.
7 Press the A/D INPUT [ON/OFF] button so that its
lamp lights.
This setting enables audio signals to be input from the
connected audio device.
MOX6/MOX8
Stereo audio equipment (CD player, etc.)
A/D INPUT
[R]
A/D INPUT
[L]
L
R
MOX6/MOX8
Microphone
A/D INPUT
[L]/[R]
