Yamaha MT-10 2020 User Manual

Periodic maintenance and adjustment
8-31
1
2
3
4
5
6
7
8
9
10
11
12
EAU73994

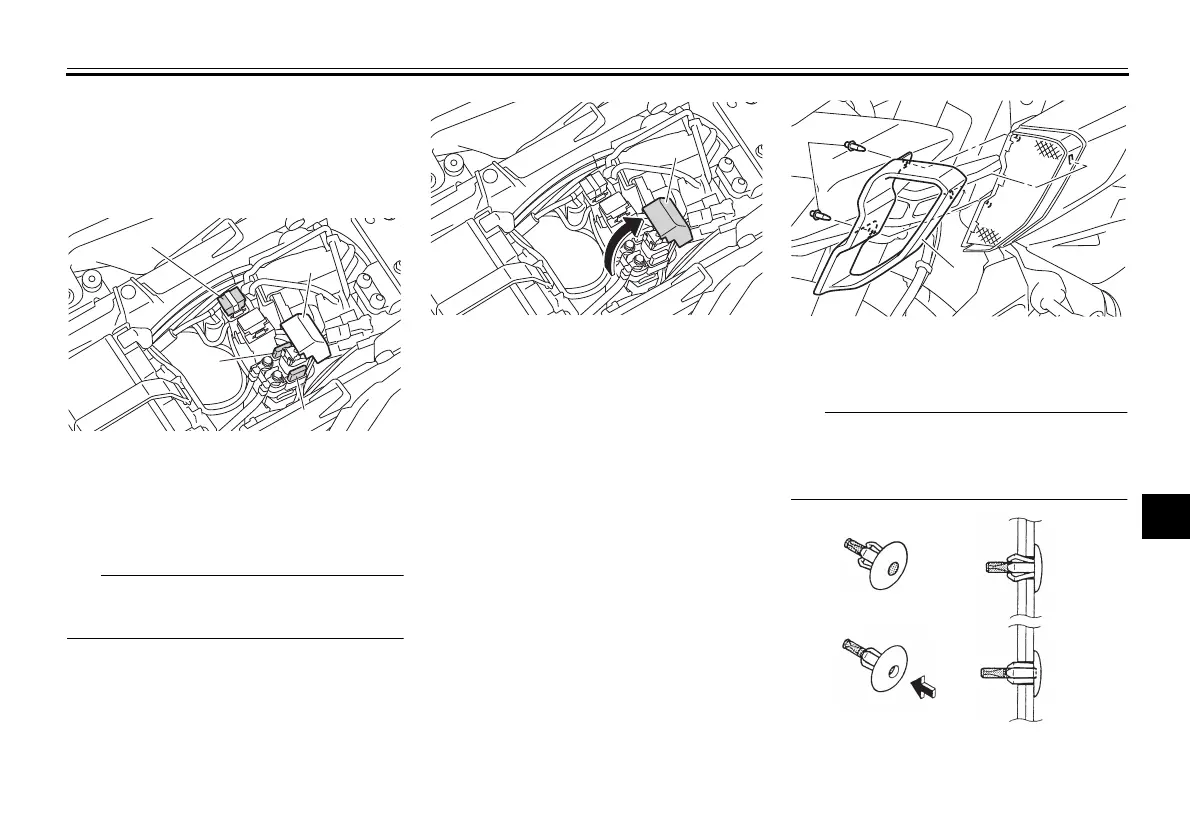

Replacing the fuses
The main fuse and ABS motor fuse are
located under the seat. (See
page 5-21.)
TIP
Remove the starter relay cover by pull-
ing it upward.
The fuse boxes, which contain the fus-
es for the individual circuits, are located
behind the left side panels.
To access fuse boxes, remove and in-
stall the left side panel A and B as fol-
lows.
1. Remove the quick fasteners, and
then remove the left side panel A
off.
TIP
The quick fasteners are removed by
pushing in the center pin and then pull-
ing the fastener out.
2. Remove the bolts and washers,
and then remove the left side pan-
1. Main fuse
2. ABS motor fuse
3. ABS motor spare fuse
4. Starter relay cover
1
4
3
2
1. Starter relay cover
1
1. Quick fastener
2. Left side panel A
1
2
B67-9-13.book 31 ページ ２０１９年７月１９日 金曜日 午後２時５６分

Yamaha MT-10 2020 Specifications

General

Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	12.0:1
Fuel System	Fuel Injection
Transmission	6-speed
Front Suspension	43mm inverted fork, fully adjustable
Front Brakes	Dual 320mm hydraulic disc, ABS
Rear Brakes	220mm hydraulic disc, ABS
Front Tire	120/70ZR17
Rear Tire	190/55ZR17
Seat Height	825 mm
Starter System	Electric
Final Drive	Chain
Width	800 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Fuel Capacity	17 liters
Horsepower	160 HP
Maximum Power	160 HP @ 11500 rpm
Maximum Torque	111 Nm @ 9000 rpm
Length	2, 095 mm
Height	1110 mm
Wheelbase	1, 405 mm
Torque	111 Nm
