Periodic maintenance and adjustment
8-25
1
2
3
4
5
6
7
8
9
10
11
12
13
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
drive chain slack adjusting bolt on
each side of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt on each side
of the swingarm in direction (b),
and then push the rear wheel for-
ward.
Using the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
3. Tighten the axle nut, then the lock-
nuts to their specified torques.
4. Make sure that the drive chain pull-
ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.
EAU23027
Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
ECA10584
The drive chain must be lubricated
after washing the motorcycle, riding
in the rain or riding in wet areas.
1. Clean the drive chain with a drive
chain cleaner and a small soft
brush. NOTICE: To prevent dam-
aging the O-rings, do not clean
the drive chain with steam
cleaners, high-pressure wash-
ers or inappropriate sol-
vents.
[ECA11122]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-

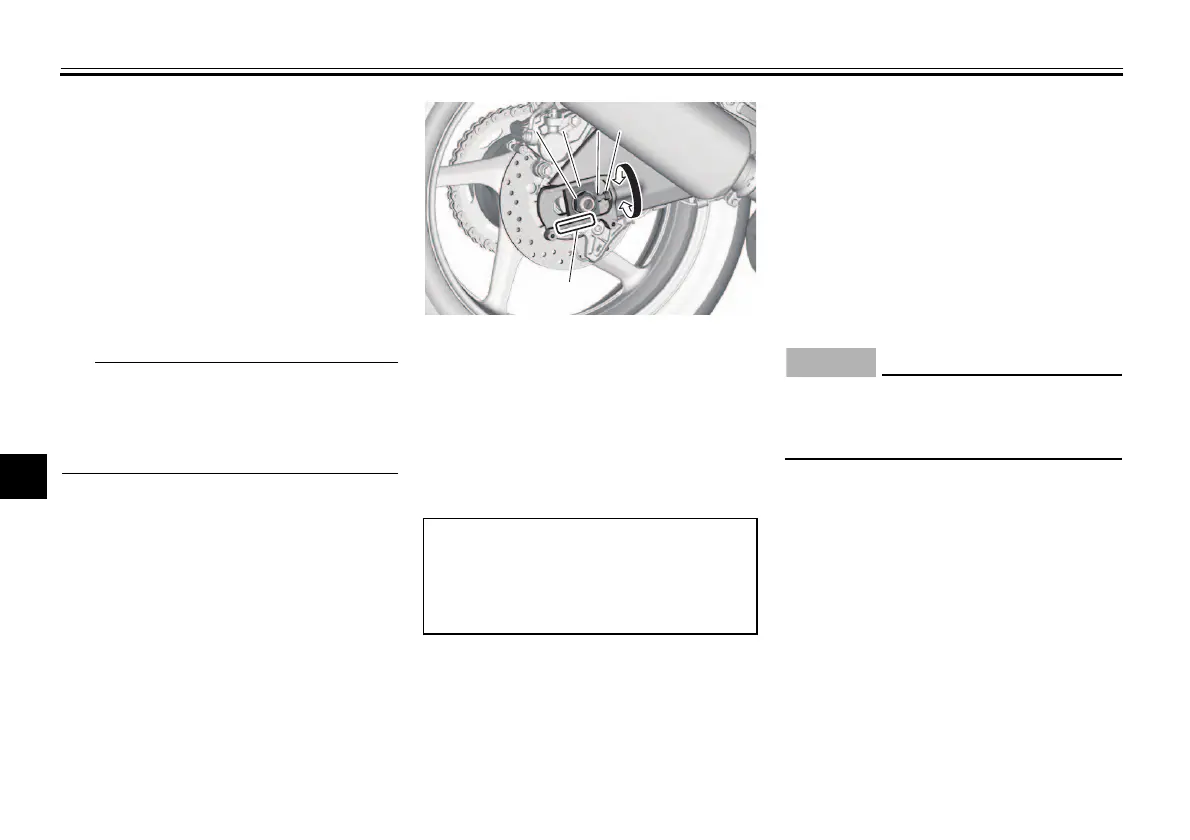

1. Axle nut
2. Drive chain puller
3. Drive chain slack adjusting bolt
4. Locknut
5. Alignment marks
Tightening torques:
Axle nut:
190 N·m (19 kgf·m, 140 lb·ft)
Locknut:
16 N·m (1.6 kgf·m, 12 lb·ft)
1
12 34
5
(a)
(a)
(b)
(b)
BGG-9-10-E0.book 25 ページ ２０２２年１月２６日 水曜日 午前１１時３７分
