RX-V357/HTR-5830
25
RX-V357/HTR-5830
Sub-menu Input level Volume
SPEAKER OUTPUT (1kHz)
SUBWOOFER
FRONT L/R CENTER SL/SR OUTPUT (50Hz)
1 FRONT: SMALL 0dB 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm - ∞ - ∞ - ∞
2 CENTER: NONE 1kHz Both ch, -20 dBm +6.0 dB +8.9 dBm +7.5 dBm - ∞ - ∞
3 LFE/BASS: FRONT 50Hz Both ch, -20 dBm +6.0 dB - ∞ - ∞ - ∞ +3.5 dBm
4 Presence Mix: 5ch 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm - ∞ - ∞ - ∞
5 Surround B Power
1kHz Both ch, -20 dBm +6.0 dB - ∞ - ∞ - ∞ - ∞
( Not applied to these models. )
6 Tone Control Flat 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm -0.5 dBm
7 Tone Control +10dB 1kHz Both ch, -20 dBm +6.0 dB +13.4 dBm +11.5 dBm +11.5 dBm -0.5 dBm
8 Tone Control -10dB 1kHz Both ch, -20 dBm +6.0 dB +9.6 dBm +11.5 dBm +11.5 dBm -0.5 dBm

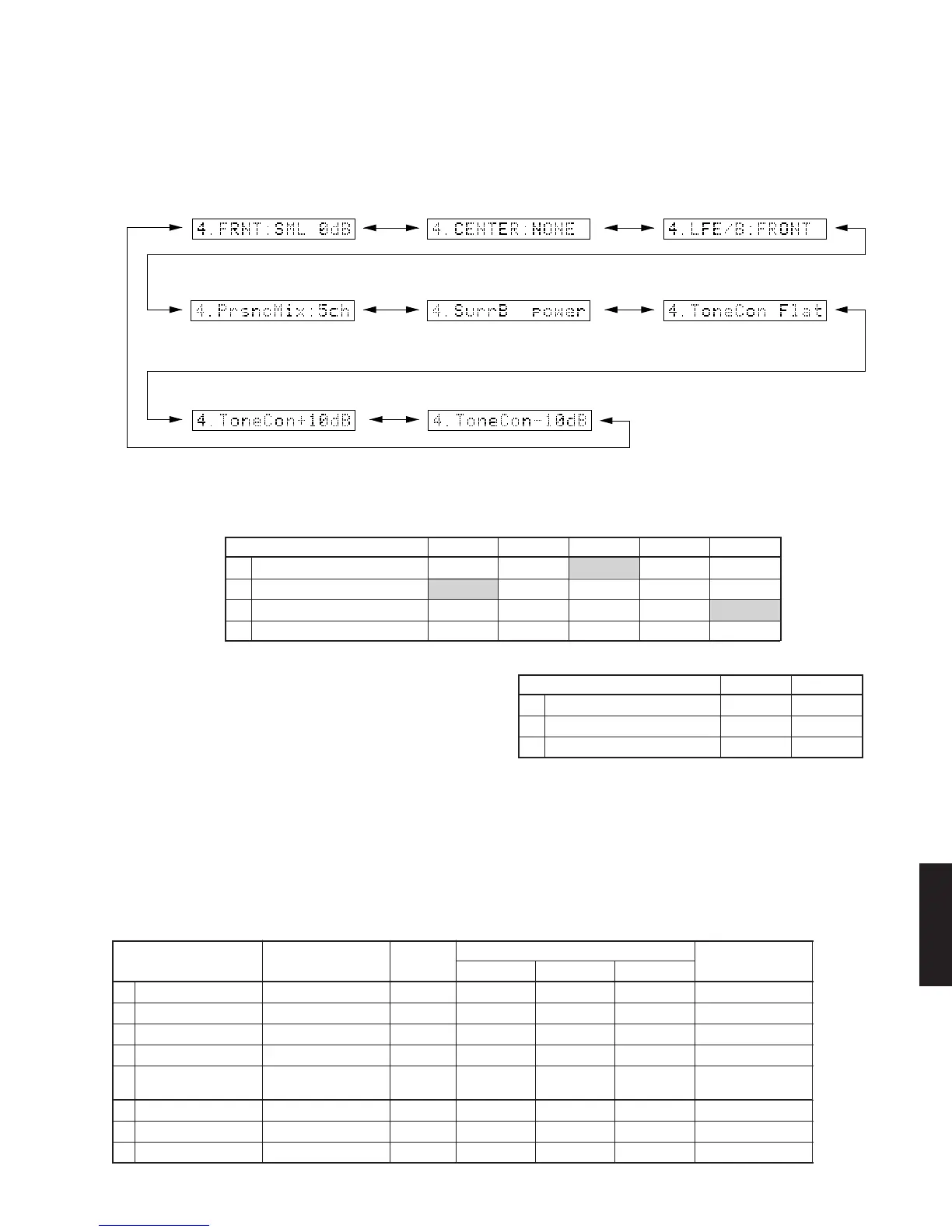

FRONT: SMALL 0dB  LFE/BASS:FRONT
Presence Mix: 5ch Surround B power Tone Control Flat
Tone Control +10dB Tone Control –10dB
Not applied to these models.
Sub-menu CENTER SP SURROUND SP FRONT SP FRONT LEVEL LFE/BASS
1 FRONT: SMALL 0dB LARGE LARGE SMALL 0dB SWFR
2 CENTER: NONE NONE LARGE LARGE 0dB BOTH
3 LFE/BASS: FRONT SMALL SMALL LARGE 0dB FRONT
4 Presence Mix: 5CH LARGE LARGE LARGE 0dB BOTH
4. SPEAKERS SET
The input signal is automatically identified and switched in
the priority order of dts → DOLBY DIGITAL → AAC →
PCM AUDIO → Analog (A/D) according to the signal
detection.
LARGE: This mode is used with a speaker having
high bass reproduction performance (a large
unit). Full bandwidth signals are output.
SMALL: This mode is used with a speaker having low
bass reproduction performance (a small
unit). The signals of 90Hz or less are mixed
into the channel specified by LFE/BASS.
NONE: This mode is used with no center speaker.
The center content is reduced by 3dB and
distributed to FRONT L/R.
The analog switch settings for each sub-menu are as
shown in the table below.
Sub-menu Treble Bass
6 Tone Control Flat 0 dB 0 dB
7 Tone Control +10dB +10 dB +10 dB
8 Tone Control –10dB –10 dB –10 dB
The signals output from the DSP block are the same as 1.
DSP THROUGH: YSS 0dB.
Reference data
INPUT: DVD ANALOG (Both ch)
