Yamaha RX-V357 Service Manual

2
ABCDEFGH I J
1
3
4
5
7
RX-V357/HTR-5830
6
52
+
1SS133
1SS270A
1T2
MTZJ30A
MTZJ4.7A
Anode
Cathode
1SS355
KDS160-RTK
MA8075-H
MA8100-H
UDZ5.1B
UDZ6.8B
UDZS5.6BTE-17
UDZS6.2B
UDZS9.1B
TS6P03G
Anode
Anode
Cathode
Cathode
SB01-05Q
–
1SR154-400 KPB103G
Anode
Cathode
+
–
2SA1015
2SB949
2SC1815
2SC2705
2SA2N5401C-AT
2SC2N5551C-AT
2SC4208A
E
C
B
2SA1037K
2SC2412K
2SC3326
2SD1938F
KRA104S-RTK
KRC102S-RTK
KRC104S-RTK
B
E
C
2SA1708
2SC4488
E
C
B
B
C
E
2SD19132SC1740S
KRA104M-AT
KRC102M-AT
E
C
B
• Diodes
• Transistors
LA7956KIA7805API
KIA7812API
1: OUT
3: IN
OUT
COM
2:
COM
IN
KIA7912PI
OUT
GND
IN
µPC29M33T-E1
MSM514260E-60JS
1
20
40
1
4
8
NJM2068MD
140
41
80
81120
121
160
YSS938
BD3816K1
AK4628VQ
1
22
33
34
11
23
12
44
M66003-0101FP
116
17
32
3348
49
64
M30626FHPFP
STK403-130Y
1
15
STK404-130Y
1
13
TC74HCT08AF
1
9
MM74HCU04SJX
14
7
1
5
1
PQ025EZ5MZP
LC72722PM
24
12
1
124
25
40
4164
65
80
14
7
1
TC74HC4053AF
16
8
1
80
1
51
30
81
100
50
31

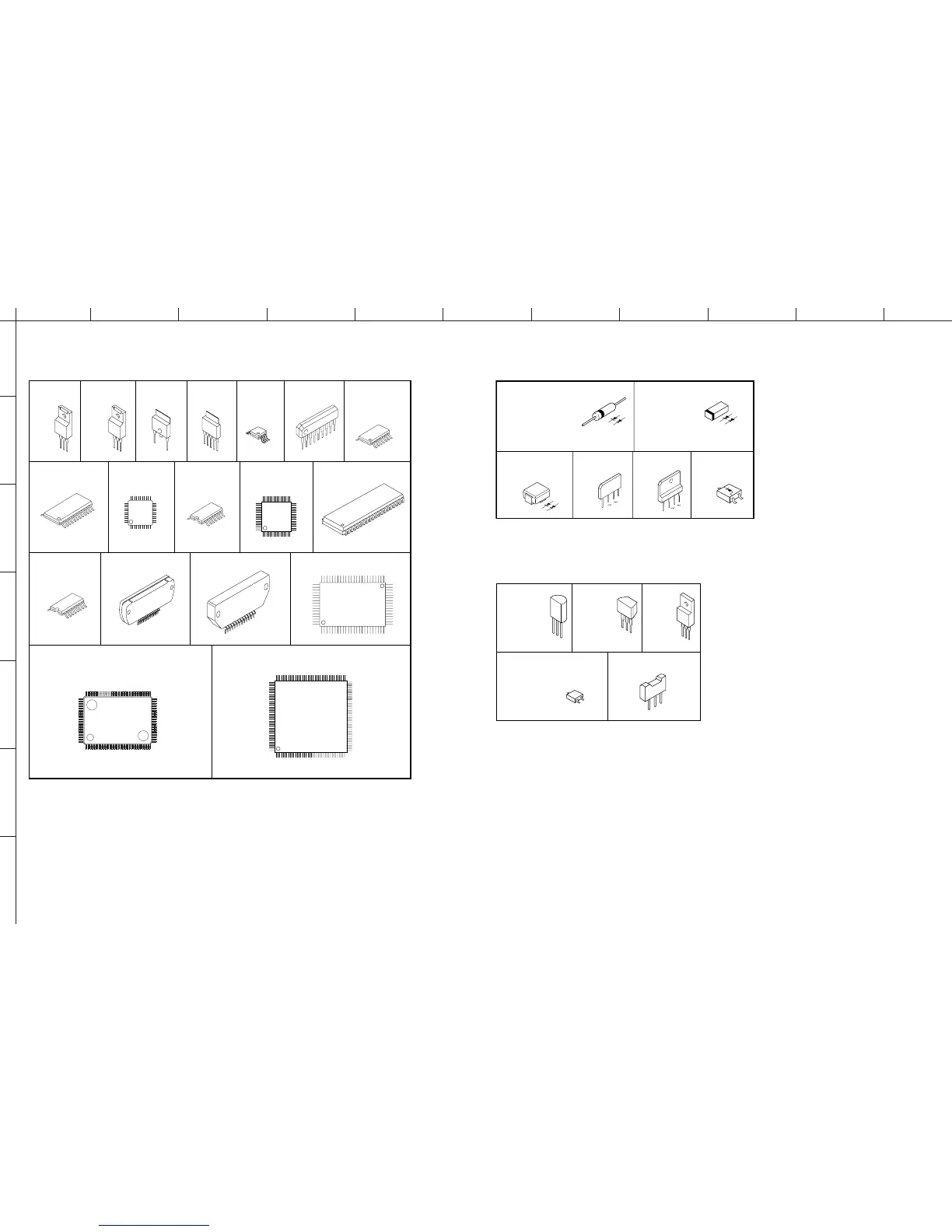

■ PIN CONNECTION DIAGRAM
• ICs

Yamaha RX-V357 Specifications

General

Signal-To-Noise Ratio	100 dB
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Preset Station Qty	40
Frequency Response	10Hz - 100kHz
Outputs	1 x headphones, 1 x subwoofer output
Input Impedance	47 kohms
Audio D/A Converter	24-bit / 192kHz
Built-in Decoders	Dolby Digital, DTS
Surround Sound Effects	Dolby Pro Logic II
Sound Effects	Cinema DSP
Tuning Range	AM: 530 - 1710 kHz, FM: 87.5 - 108 MHz
Power Output	100 Watt
