Tuner mode 0 (*1)
Tuner mode 1 (*1)
Tuner with (1) / without (0)
RDS with (1) / without (0)
VIDEO format: PAL (1) / NTSC (0)

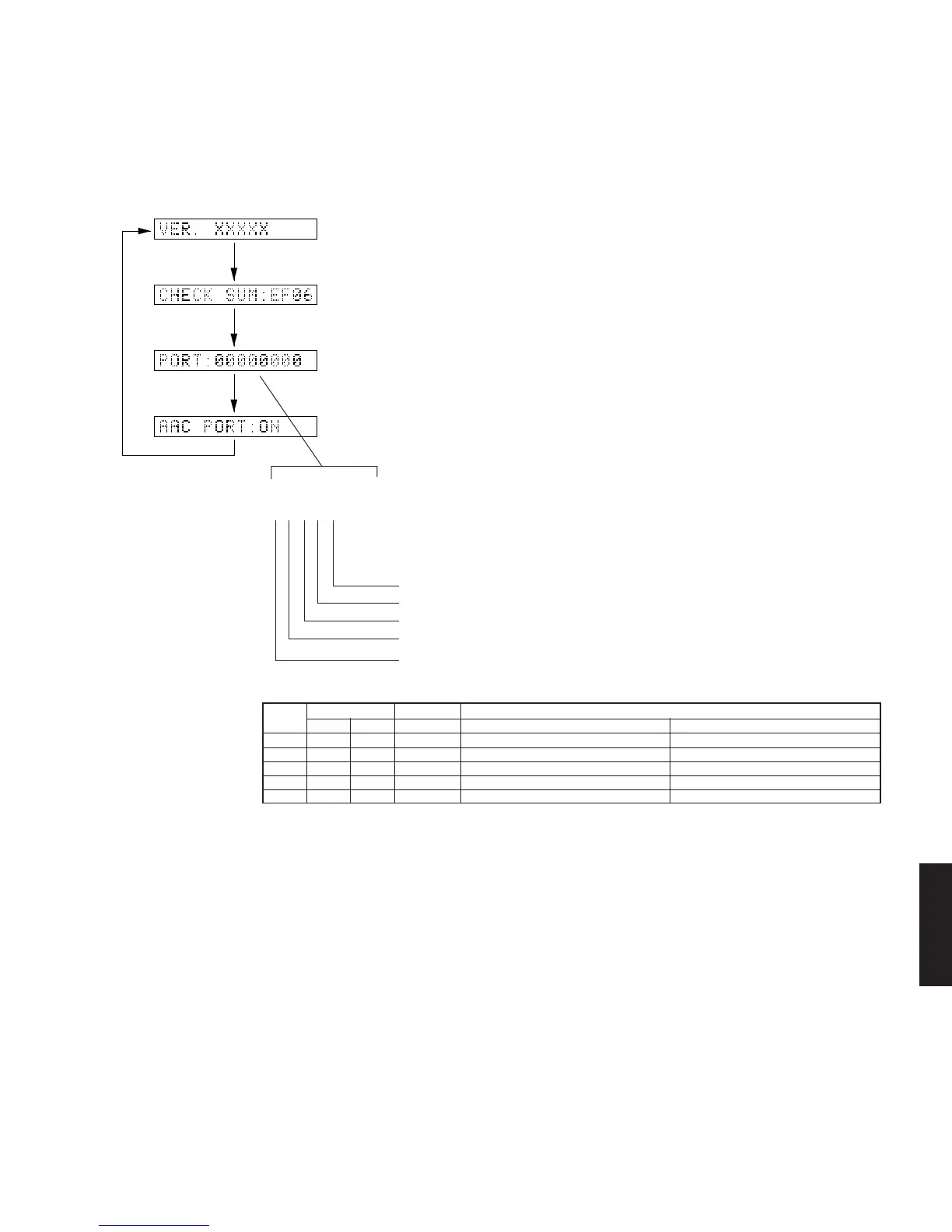

15. MICROPROCESSOR INFORMATION
The version, checksum and the port specified by the
microprocessor are displayed. The signal is processed
using EFFECT OFF. The checksum is obtained by adding
the data at every 8 bits for each program area and
expressing the result as a 4-figure hexadecimal data.
*1
Version
Release 1 digit / Main version 2 digit / DSP version 2 digit
Checksum
A: All area
Check of port setting for judging microprocessor function
Display of AAC function detection port state
Type Tuner mode Port 3 Frequency range
1 0 (type 2) FM AM
000 – 76.0-90.0MHz / 100kHz 531-1611kHz / 9kHz
110 – 87.5-108.0MHz / 50kHz 531-1611kHz / 9kHz
201 – 87.5-107.9MHz / 200kHz 530-1710kHz / 10kHz
3 1 1 Low 87.5-108.0MHz / 100kHz 530-1710kHz / 10kHz
High 87.5-108.0MHz / 50kHz 531-1611kHz / 9kHz

Yamaha RX-V357 Specifications

General

Signal-To-Noise Ratio	100 dB
Input Sensitivity	200 mV
Tuner Bands	AM/FM
Preset Station Qty	40
Frequency Response	10Hz - 100kHz
Outputs	1 x headphones, 1 x subwoofer output
Input Impedance	47 kohms
Audio D/A Converter	24-bit / 192kHz
Built-in Decoders	Dolby Digital, DTS
Surround Sound Effects	Dolby Pro Logic II
Sound Effects	Cinema DSP
Tuning Range	AM: 530 - 1710 kHz, FM: 87.5 - 108 MHz
Power Output	100 Watt
