INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00095
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero with the reset knob.
The tripmeter can be used to estimate
the distance that can be traveled with a
full tank of fuel. This information will en-
able you to plan future fuel stops.
EAU00118
Handlebar switches
EAU00119
Pass switch “ ”
Press this switch to flash the headlight.
EAU00121
Dimmer switch
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00124
Turn signal switch
To signal a right-hand turn, push this
switch to the right. To signal a left-hand
turn, push this switch to the left. When
released, the switch returns to the cen-
ter position.
Since this model is equipped with a self-
canceling system, the turn signal lights
will self-cancel after the motorcycle has
traveled both about 150 m and for ap-
proximately 15 seconds. However, the
turn signal lights can also be canceled
manually by pushing the switch in after
it has returned to the center position.
@
The self-canceling system only oper-
ates when the motorcycle is moving, so
that the turn signal lights will not self-
cancel while you are stopped at an
intersection.
@
EAU00129
Horn switch “ ”
Press this switch to sound the horn.

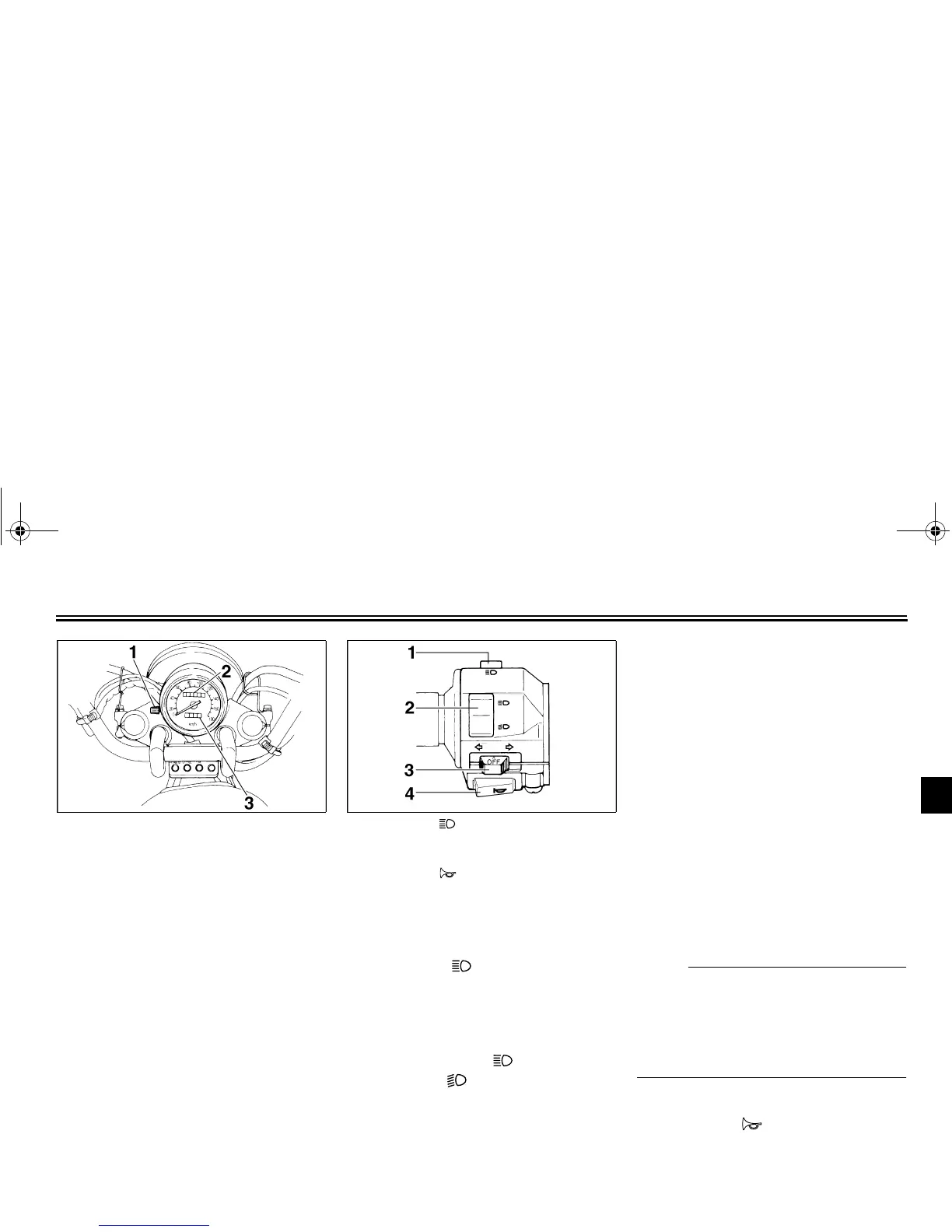

1. Tripmeter reset knob
2. Odometer
3. Tripmeter
1. Pass switch “ ”
2. Dimmer switch
3. Turn signal switch
4. Horn switch “ ”
