Yamaha Virago XV535 User Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU00696
Adjusting the brake lever free
play
The brake lever free play should mea-
sure 2–5 mm as shown. Periodically
check the brake lever free play and, if
necessary, adjust it as follows.
1. Loosen the locknut at the brake
lever.
2. To increase the brake lever free
play, turn the adjusting bolt in di-
rection
a
. To decrease the brake
lever free play, turn the adjusting
bolt in direction
b
.
3. Tighten the locknut.
EW000099
WARNING
@
●
After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
●
A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha
dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-
trol and an accident.
@
EAU00711
Adjusting the brake pedal
position and free play
EW000104
WARNING
@
It is advisable to have a Yamaha
dealer make these adjustments.
@
NOTE:
@
The brake pedal position should be ad-
justed before adjusting the brake pedal
free play.
@

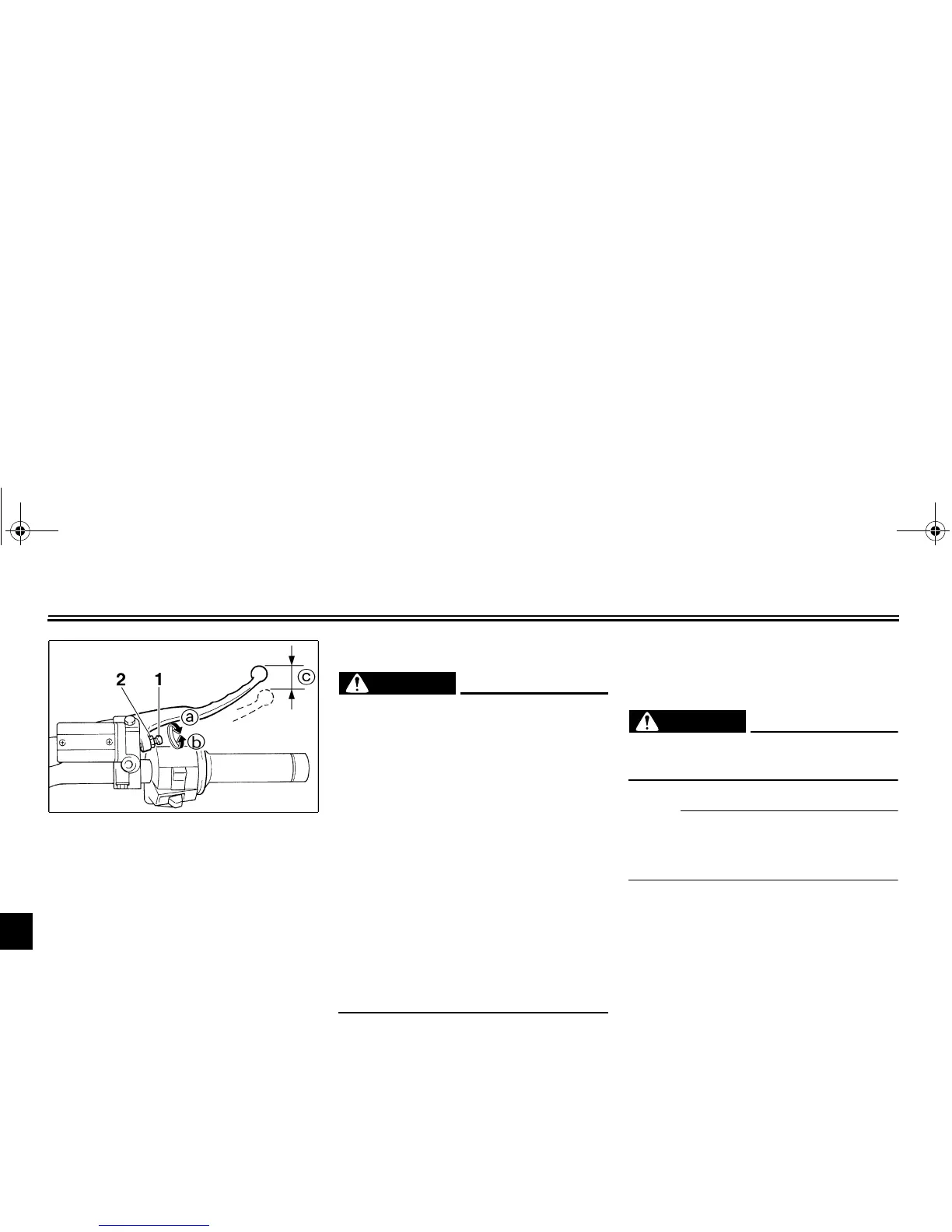

1. Brake lever free play adjusting bolt
2. Locknut
c. Brake lever free play
E_3bt.book Page 19 Thursday, September 7, 2000 10:01 AM

Yamaha Virago XV535 Specifications

General

Displacement	535 cc
Compression ratio	9.0:1
Fuel system	Carburetor
Ignition system	CDI
Transmission	5-speed
Final drive	Shaft
Front suspension	Telescopic fork
Rear suspension	Dual shocks
Front brakes	Single disc
Rear brakes	Drum
Front tire	3.00-19
Rear tire	140/90-15
Engine type	Air-cooled, 4-stroke, V-twin
Bore x Stroke	76 mm x 59 mm
Fuel capacity	13.5 liters
Wheelbase	1, 520 mm
