PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6
EAU01406

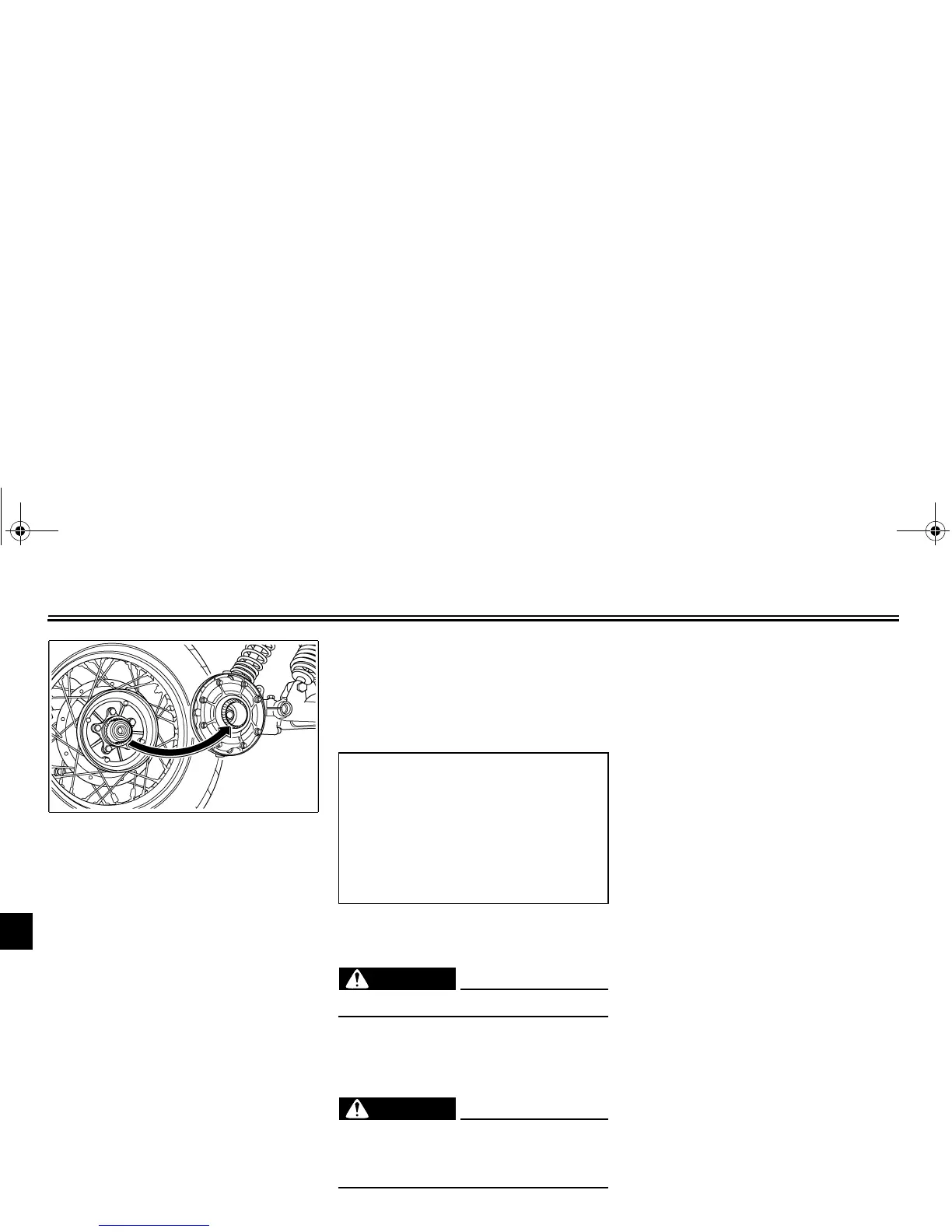

To install the rear wheel
1. Apply a light coating of lithium-
soap-based grease to the splines
of the final gear case and wheel
hub.
2. Install the wheel by inserting the
wheel axle.
3. Install the brake rod onto the brake
camshaft lever, and then install
the brake pedal free play adjusting
nut onto the brake rod.
4. Connect the brake torque rod to
the brake shoe plate by installing
the bolt and the nut.
5. Install the rear wheel axle pinch
bolt.
6. Lower the rear wheel so that it is
on the ground.
7. Tighten the axle nut, pinch bolt
and brake torque rod nut to the
specified torques.
8. Install the brake torque rod cotter
pin.
EW000124
WARNING
_
Always use a new cotter pin.
_
9. Adjust the brake pedal free play.
(See page 6-20 for brake pedal
free play adjustment procedures.)
EW000103
WARNING
_
After adjusting the brake pedal free
play, check the operation of the
brake light.
_
EAU01008
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
Tightening torques:
Axle nut:
107 Nm (10.7 m·kg)
Rear wheel axle pinch bolt:
16 Nm (1.6 m·kg)
Brake torque rod nut:
20 Nm (2.0 m·kg)
E_3bt.book Page 37 Thursday, September 7, 2000 10:01 AM
